Hanwha ANO-L7022R
Hanwha
Article code ANO-L7022R
{{ fullProductName }}

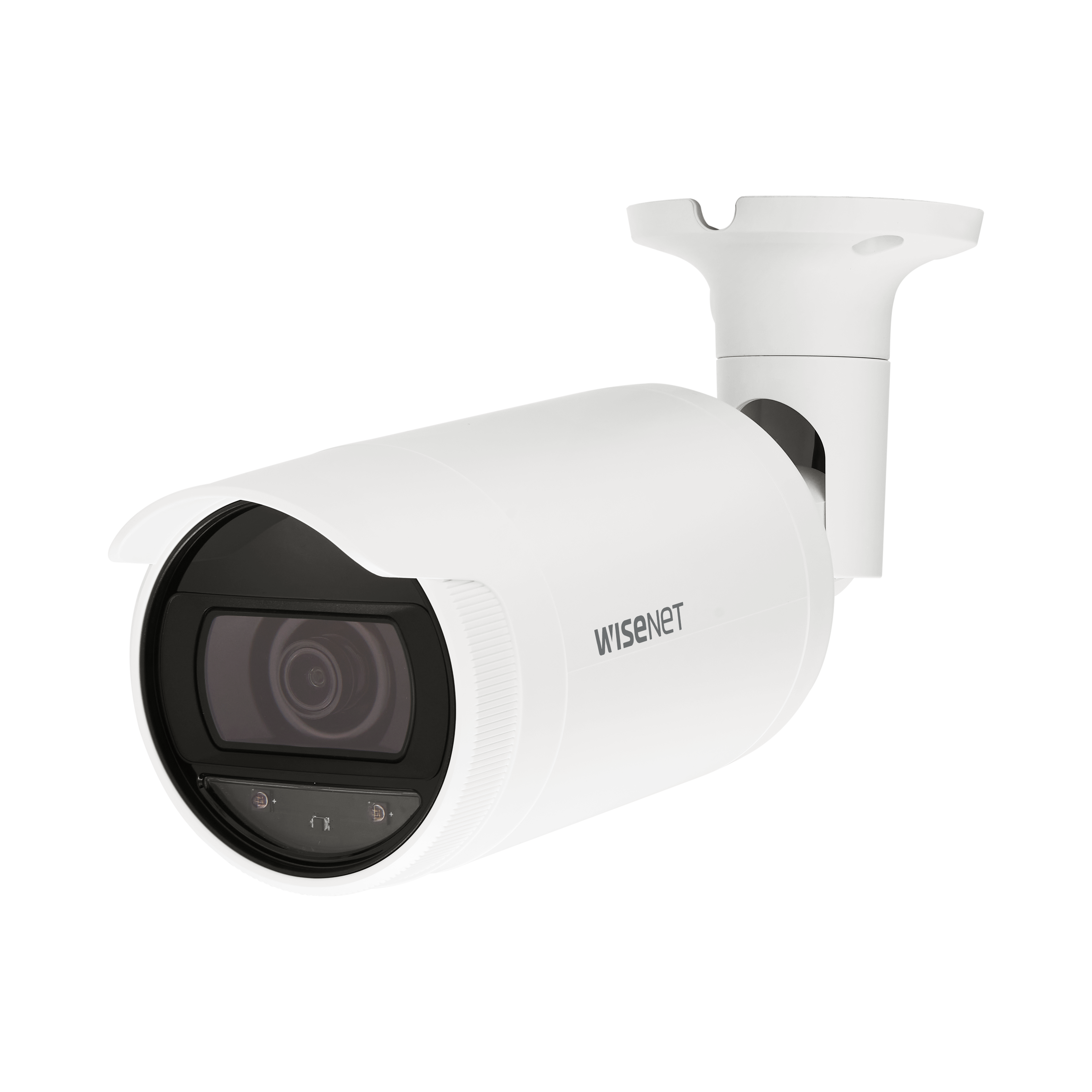

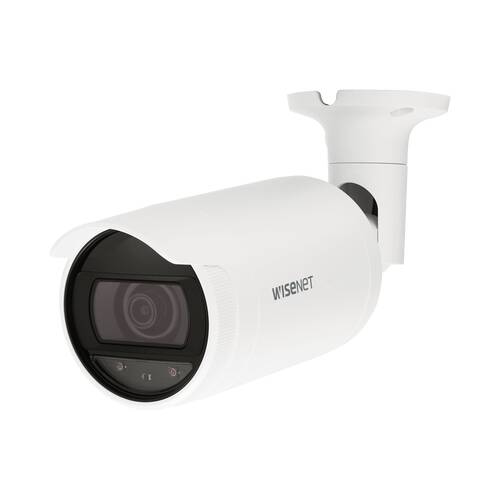

Outdoor Bullet 4MP camera, 30fps, IR, fixed lens 4mm 78.2°
- Outdoor 4MP Bullet camera
- Lens 78.2°
- Light sensitivity color: 0.1lx B/W: 0lx (IR LED on)
Description Hanwha ANO-L7022R
Wisenet A Series bullet camera, 4MP @ 30 FPS, 4mm fixed focal lens, WiseStreamII, triple codec (H.265/H.264/MJPEG), 120dB WDR, IR LEDs 25m(82.02ft), day & night (ICR), FOV H: 78.3° / V: 42.9°, virtual area (intrusion/enter/exit), virtual Line (crossing/ direction), motion detection, tampering, hallway view, SD card, IP66, PoE, white.
Key Features:
- 4 MP resolution, up to 30 fps (H.265/H.264)
- Color: 0.1Lux (F1.6, 1/30sec), B/W: 0Lux (IR LED on)
- 4mm lens with 78.2° HFoV
- IR visible length: 25m
- Day and night (ICR), WDR (120dB)
- H.265, H.264, MJPEG, multiple streaming supported
- Blur detection, direction detection, motion detection, tampering
- (90⁰/270⁰), LDC support, WiseStream II
- Micro SD/SDHC/SDXC memory slot (max. 128 GB)
- IP66
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
Specifications
Product
| Model number | ANO-L7022R |
| GTIN code | 8801089228611 |
| Brand | Hanwha |
| Category |
IP Cameras
Bullet
|
| HS Code |
852589
|
| Country of origin |
Vietnam
|
| Weight |
390 grams
|
| Size (lxwxh) |
298
x 497 x 241 millimeters
|
|
Camera Properties
|
Outdoor
Built-in infrared
|
|
Basic Functionality
|
Day and night
Local Storage
|
|
Resolution
|
4MP
|
|
Hanwha Series
|
Wisenet A
|
|
Angle of View
|
61° - 90°
|
|
Encoding
|
H264
H265
MJPEG
|
