Hanwha SBD-180PMW

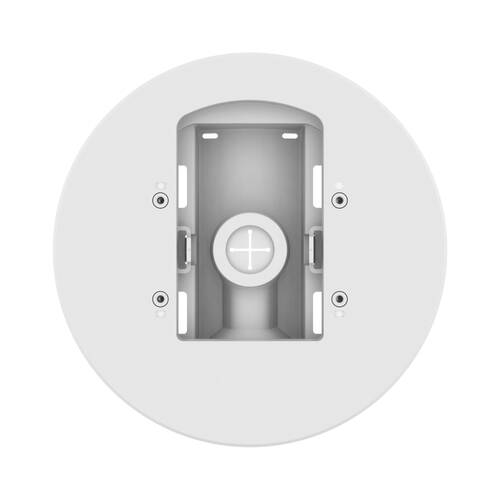

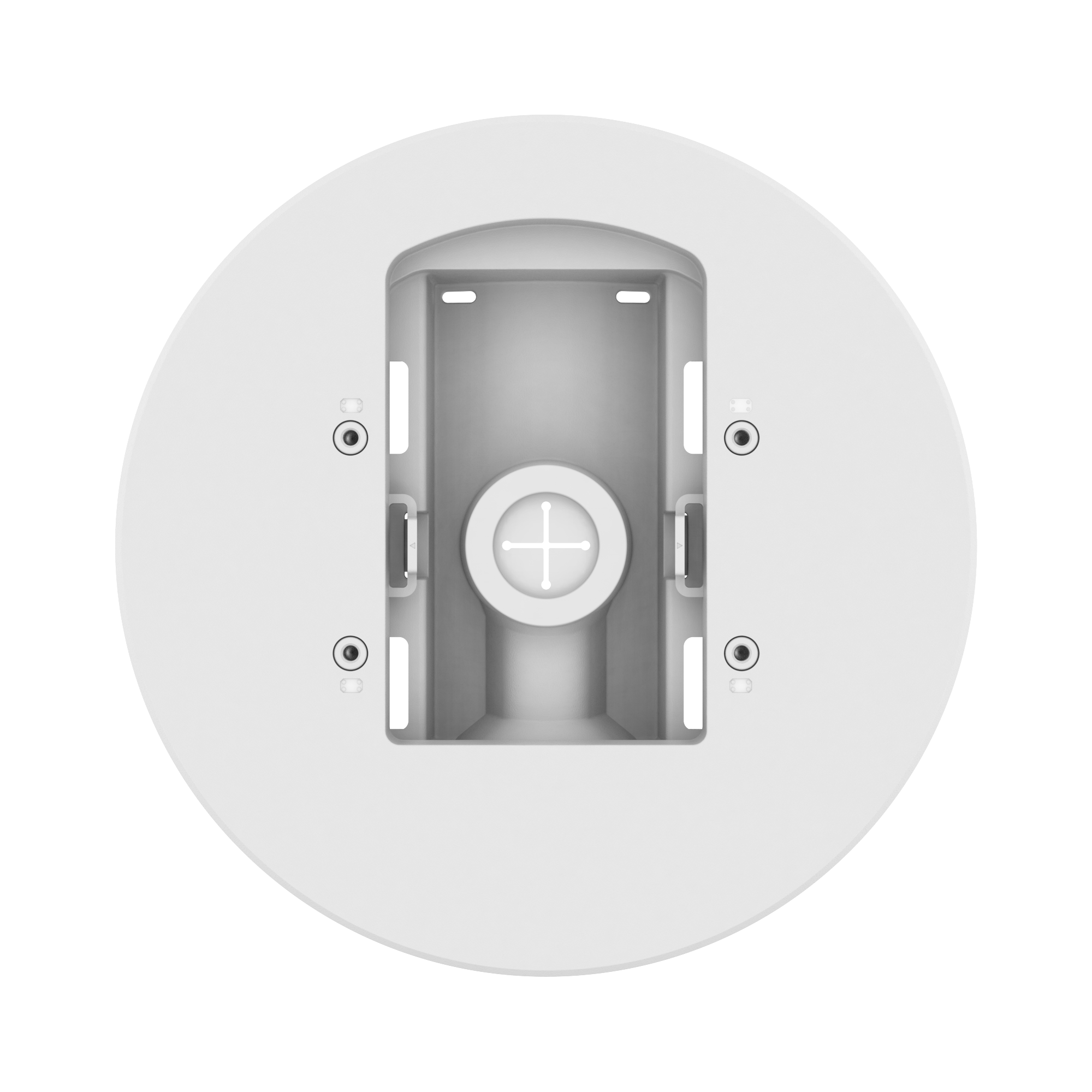

SBD-180PMW Pole Mount Bracket for Hanwha Vision Cameras

The SBD-180PMW is a pole mount bracket designed for a wide range of Hanwha Vision dome cameras. It features an aluminum core with a plastic cap, finished in white (RAL9003), and measures ø187.1x50.5mm while weighing 370g. The mount uses a TR20 screw for the camera and a TR30 screw for the steel strap, with a 19.1mm (M25) conduit hole for cable routing. It is compatible with numerous Hanwha Vision camera series, including the PNV-A6081R/A9081R, XNV-8082R/9082R, and XND-C6083RV/C7083RV/C8083RV/C9083RV, among others.

Key Features:

• Pole mount design for dome cameras
• Aluminum core with plastic cap
• White finish (RAL9003)
• Compact dimensions: ø187.1x50.5mm, 370g
• TR20 (camera) and TR30 (steel strap) mount screws
• 19.1mm (M25) conduit hole
