Hanwha TNO-C3020TRA

- 384x288 resolution
- 9.7mm lens with 60° angle of view
- 30fps
Description Hanwha TNO-C3020TRA

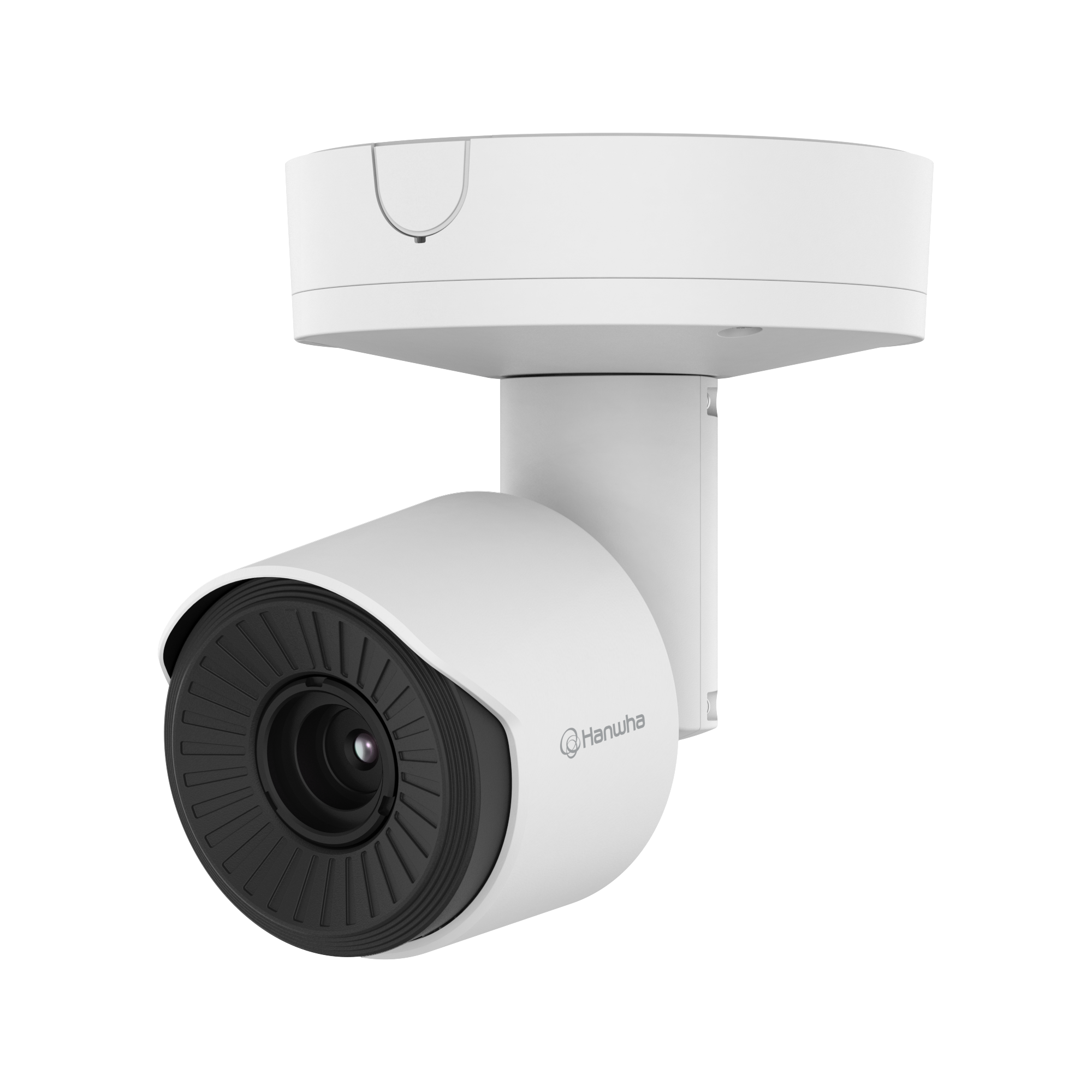

The TNO-C3020TRA is a robust QVGA radiometric thermal bullet camera, for outdoor use, with a framerate of 30 fps, a fixed 6.6mm lens, and a 60° field of view. With a NETD of 30mK, it delivers accurate thermal images. It supports H.265/H.264/MJPEG codecs and IP66, IK10, and NEMA 4X ratings.
AI-enabled thermal cameras improve accuracy and efficiency
T series AI based radiometric thermal camera boasts AI-powered object detection that can accurately classify people and vehicles even under challenging conditions. This capability enables the camera to detect and classify people in extreme situations, such as fog or smoke, effectively preventing accidents.
Wide Temperature Detection Range
Hanwha Vision’s radiometric thermal cameras, with a temperature detection range of -40°C to 550°C, are ideal for diverse industrial applications. Effectively monitoring industrial equipment and materials, they ensure safe operation. By detecting temperature changes due to aging or connection failure, the cameras empower operators to promptly address potential problems, enhancing maintenance efficiency and reducing downtime.
Key features:
- resolution: 384x288
- 30fps
- NETD: <30mK
- Angle of view: 60°
- IP66, IK10, Nema 4X
- Temperature Accuracy: under 150°C: up to ±2°C, above 150°C: up to ±15%
Video
Specifications
Model number | TNO-C3020TRA |
GTIN code | 8801089226747 |
Brand | Hanwha |
Category |
IP Cameras
Thermal
|
HS Code |
852589
|
Weight |
1700 grams
|
Size (lxwxh) |
482
x 541 x 233 millimeters
|
Camera Properties
|
Outdoor
Vandal resistant
|
Basic Functionality
|
Local Storage
|
Resolution
|
≤ 720p (1MP)
|
Hanwha Series
|
Wisenet T
|
Angle of View
|
31° - 60°
|
Encoding
|
H264
H265
MJPEG
|
Thermal camera properties
|
Bullet
≥ 30 fps
|
