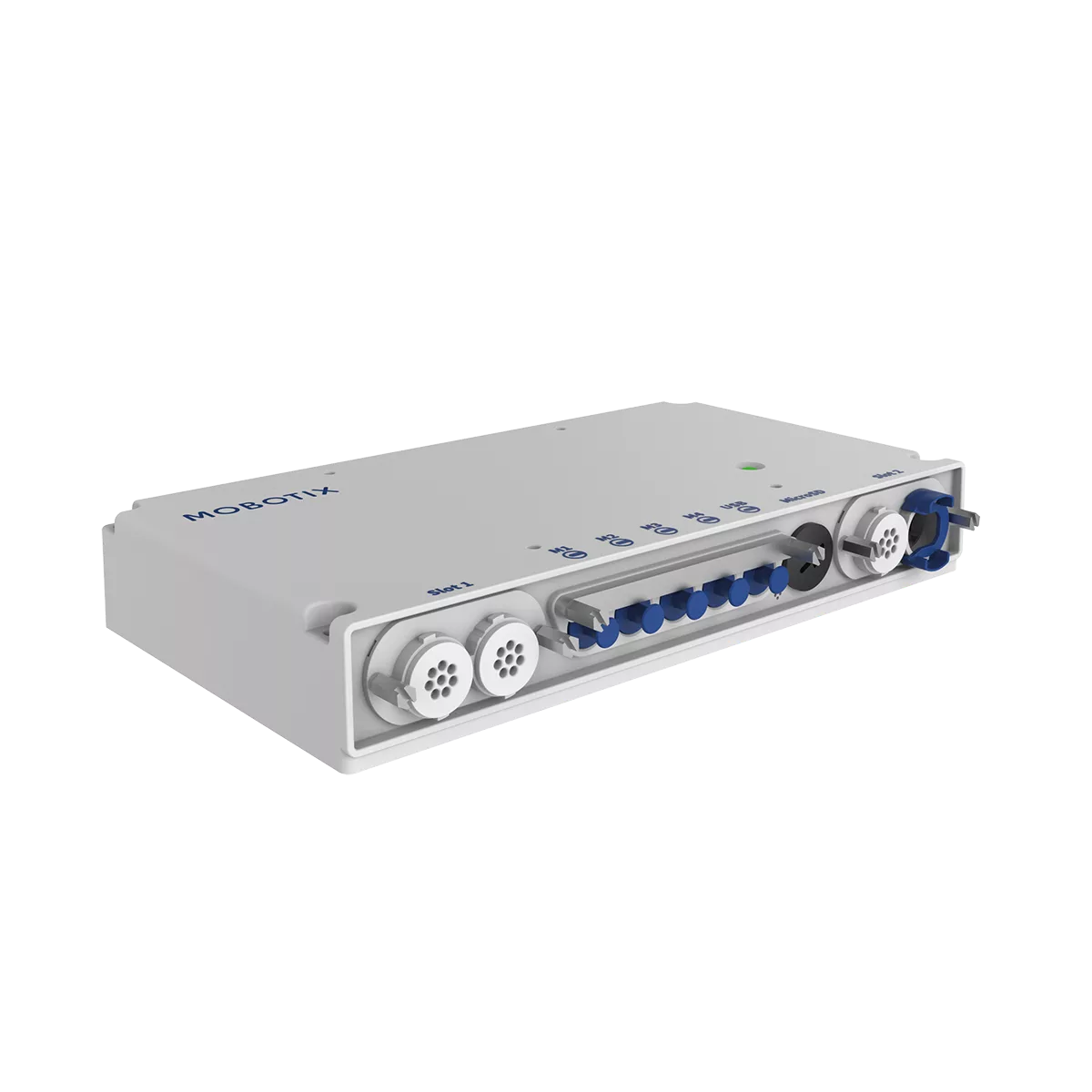

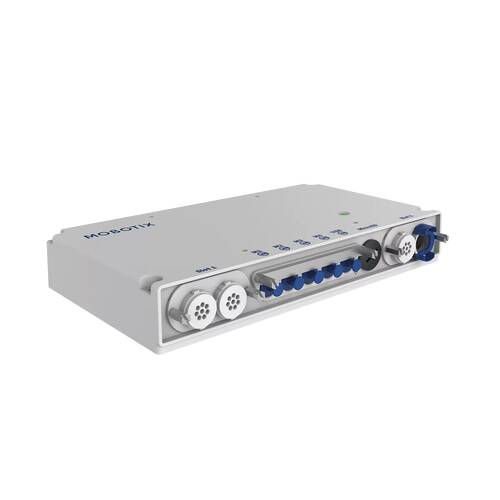

Mobotix S74 Body for 4 Sensor- and Functional Modules

S74A IP camera module (body) for connecting up to four additional functional and optical sensor modules (to be ordered individually)

• ONVIF-S/T-compliant MOBOTIX 7 system platform with H.264/H.265 (Triple Streaming), MxPEG+ and M-JPEG
• Image sensor options (via sensor module): 4K (8 megapixels), color (day) and/or B/W (night) and/or color (day/night with IR cut)
• Lens options (via sensor module): horizontal image angle from 95° to 15°
• Max. image size (per image sensor): 4K UHD (3840 x 2160 pixels), 16:9
• WDR: up to 120 dB
• Functional extensions (via optional MOBOTIX modules): MultiSense (PIR, temperature, brightness sensor, Microphone), IR Light (supports 15°, 45°, 95° lenses), USB-C
• Operating conditions: IP66/IK07, -40 to 65°C (-40 to 149 °F)
• Internal DVR: 8 GB microSD (for MxPEG+ recordings)
• Max. Power consumption: 25 W, supply via network cable, PoE Class 4 (IEEE 802.3af/at)
• Connections: 1x RJ45 jack for weatherproof network connection via MOBOTIX patch cable (Ethernet 1000BaseT), 4x MOBOTIX module connection (2x optical/2x functional), USB-C, further connections via interface board
• Software interface for MOBOTIX Certified Apps (based on Deep Learning, approx. 20 different 30-day demo versions pre-installed) • Housing: Aluminium, PBT-30GF • Color: white
• Warranty: 3 years (optionally extendable up to 8 years)
