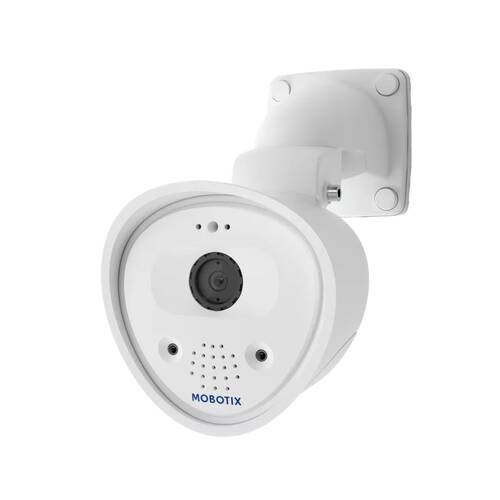

Mobotix Mx-ONE-M1A-S-8N080

Mobotix Article code Mx-ONE-M1A-S-8N080
Coming soon

NetcamCenter {{ fullProductName }}

M1A-S with 4K night sensor module, 60°x 33°
Coming soon
Buy now
+ Quote

Description Mobotix Mx-ONE-M1A-S-8N080

M1A single IP camera with premium wide-angle lens B080 and black and white sensor for use at night, aperture: f/1.8, max. image angle (HxV): 60°x 33°

  • Max. image size: 4K UHD (3840 x 2160 pixels), 16:9
  • Max. frame rate: 30 fps @ 4K
  • ONVIF-compliant (Profile G, S, T) MOBOTIX ONE system platform with H.264 (triple streaming), H.265, MxPEG+ and M-JPEG
  • WDR: up to 120dB, IR LEDs (up to 30m)
  • HD audio with integrated microphone and speaker
  • Temperature sensor, MxActivitySensor, shock sensor
  • Functional extensions (via optional MOBOTIX modules): 1x USB-C compatible with P7 extension boxes
  • Operating conditions: IP66/IK10, -40 to 65 °C
  • Internal DVR: 64 GB microSD (for MxPEG+ recordings)
  • Max. power consumption: 12.95 W, supply via network cable, PoE Class 3 (IEEE 802.3af) or 12/24VDC external power supply
  • Connections: 1x RJ45 socket for weatherproof network connection via MOBOTIX patch cable (Ethernet 1000BaseT), I/0 (1x input, 2x outputs), 1x audio out, 1x 12/24VDC input, 1x USB-C
  • Software interface for MOBOTIX Camera Apps (based on deep learning)
  • Housing: PBT-30GF
  • Color: white
  • Warranty: 5 years (optionally up to 8 years expandable)

Downloads

Datasheet Download pdf
Product dimensions Download pdf

Specifications

Product
Model number Mx-ONE-M1A-S-8N080
Brand Mobotix
Category
IP Cameras
Box
Camera Properties
Outdoor
Built-in infrared
Vandal resistant
Basic Functionality
Input/output
Audio support
Local Storage
Resolution
4K (8.3MP) or higher
Mobotix Series
ONE
Power over Ethernet
15W
Angle of View
31° - 60°
Encoding
H264
H265
MJPEG
MXPEG
