AXIS Lens CS 2.8-8.5MM P-iris
AXIS
Article code 5801-491
{{ fullProductName }}
End-of-life: Product might no longer be available

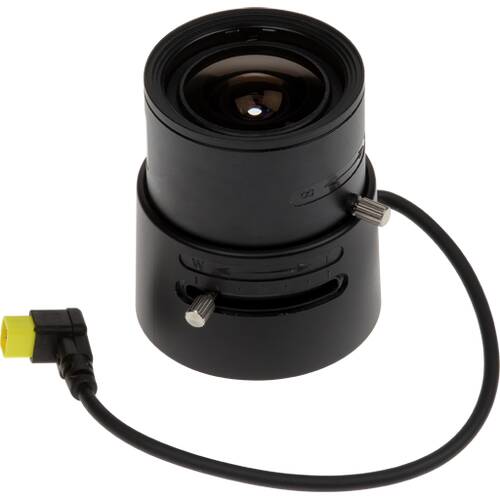

Standard CS mounted varifocal P-Iris lens 2.8 - 8.5 mm.
Successor
Would you like personal advice on alternatives?
Description AXIS Lens CS 2.8-8.5MM P-iris
Standard CS mounted varifocal P-Iris lens 2.8-8.5mm for AXIS P1364.
This P-Iris lens with its capabilities for precise iris control, addresses the imperfections of an auto-iris lens by providing improvements in contrast, clarity, resolution, and depth of field.
- IR-corrected lens
- F-stop 1.2
- Focal length 2.8–8.5 mm
- Supports sensors up to 1/2.7″
| Camera | Image sensor | Angle of view |
| AXIS P1364 | 1/3” | 92°-34° |
| AXIS P1364-E | 1/3” | 83°-34° |
| AXIS P1367 | 1/2.9” | 104°–36° |
| AXIS P1367-E | 1/2.9” | 72°-36° |
* Angles achieved when the camera is used inside an Axis housing
Downloads
| Datasheet | Download |
Compatible products
Box
Specifications
Product
| Model number | 5801-491 |
| GTIN code | 7331021053458 |
| Brand | AXIS |
| Category |
Other Products
Various
|
| HS Code |
900211
|
| Country of origin |
China
|
| Weight |
150 grams
|
| Size (lxwxh) |
130
x 120 x 95 millimeters
|
|
Various
|
Lenses CS/C Mount
|
