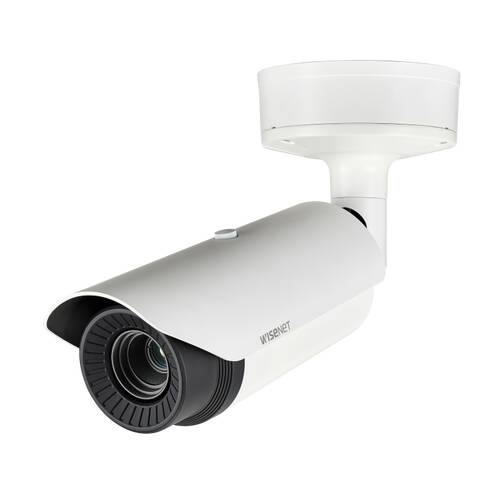

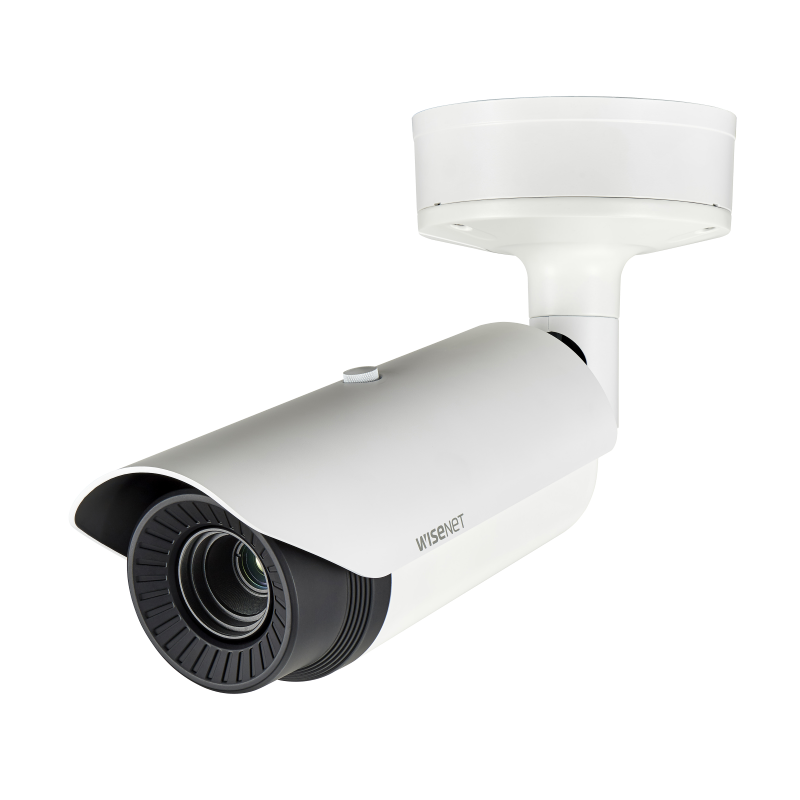

Hanwha TNO-4040T

Hanwha Article code TNO-4040T

NetcamCenter {{ fullProductName }}

Outdoor Thermal Camera, 19mm, 32°, 30fps, 640x480 Resolution
In stock
Buy now
+ Quote
  • 640x480 resolution
  • 19mm lens with 32° angle of view

Description Hanwha TNO-4040T

T-series outdoor thermal network camera, VGA at 30 fps, 19mm fixed lens (32°), triple codec H.265/H.264/MJPEG with WiseStream II, multiple streaming, corridor view, motion detection, tamper detection, transfer, 7 color palettes , Digital image stabilization with built-in gyro sensor, Bidirectional audio and microSD/SDHC/SDXC slot, IP66, IK10, Nema 4X, PoE/12VDC/24VAC

Key features:

  • Max. Support for 640 x 480 resolution
  • Built-in 19mm fixed lens
  • H.265, H.264, MJPEG codec
  • Max. 30 fps at all resolutions (H.265, H.264, MJPEG)
  • Motion detection, transmission, manipulation, loitering
  • Directional detection, audio detection, shock detection
  • SD/SDHC/SDXC memory slot (max. 256 GB)
  • Hallway view, WiseStreamII support
  • PoE, 24 V AC, 12 V DC
  • IP66, NEMA4X, IK10

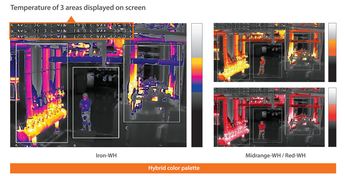

TNO series temperature displayed

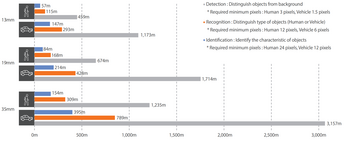

TNO series detection range

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf
Brochure Download pdf

Video

Specifications

Product
Model number TNO-4040T
GTIN code 8801089118271
Brand Hanwha
Category
IP Cameras
Thermal
HS Code
852589
Weight
3175 grams
Size (lxwxh)
269 x 477 x 203 millimeters
Basic Functionality
Local Storage
Hanwha Series
Wisenet T
Angle of View
31° - 60°
Encoding
H264
H265
MJPEG
Thermal camera properties
Bullet
≥ 30 fps
