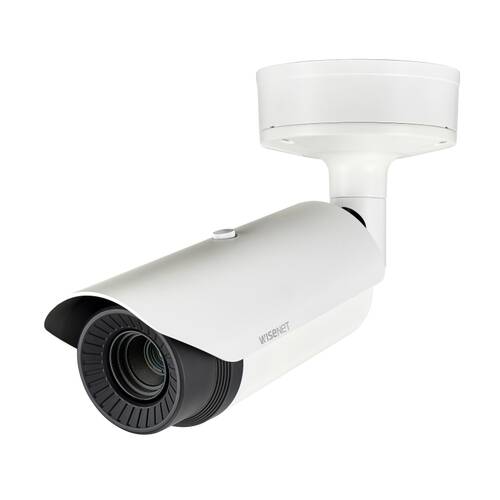

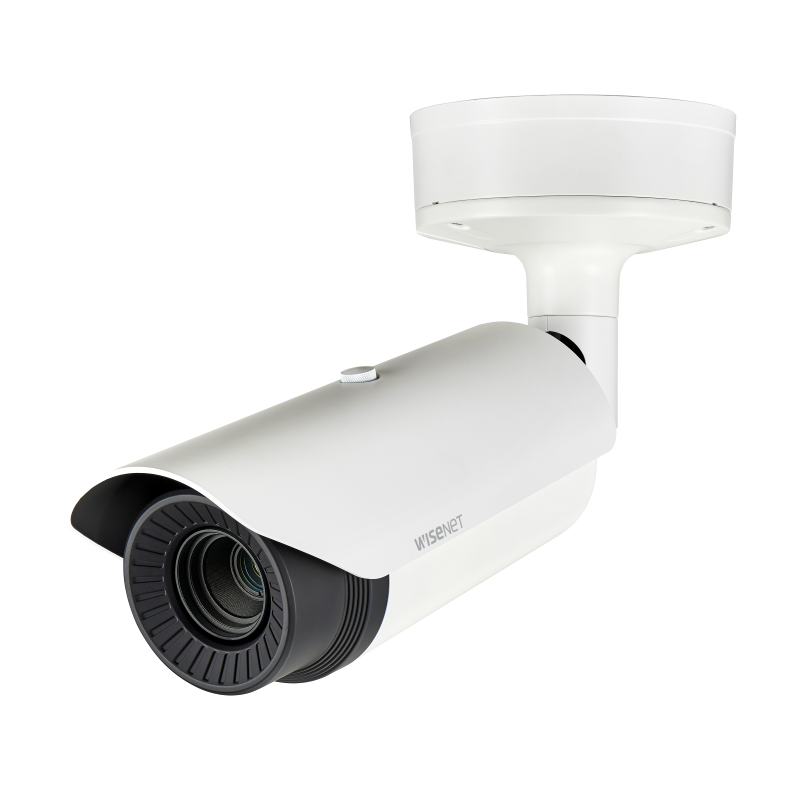

Hanwha TNO-4030T
Hanwha
Article code TNO-4030T
{{ fullProductName }}
Outdoor Thermal Camera, 13mm, 48.6°, 30fps, 640x480 Resolution
- 640x480 resolution
- 13mm lens with 48.6° angle of view
Description Hanwha TNO-4030T
T series network outdoor thermal bullet camera, VGA @30fps, 13mm fixed lens (48.6°), triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, Hallway View, Motion detection, Tampering detection, Handover, 7 colour palettes, Digital Image Stabilization with built-in Gyro Sensor, Bi-directional audio and microSD/SDHC/SDXC slot, IP66, IK10, Nema 4X, PoE/12VDC/24VAC
Key features:
- High resolution thermal VGA (640 x 480) resolution
- Built-in 13mm fixed lens
- 30fps@all resolutions(H.265, H.264, MJPEG)
- H.265, H.264, MJPEG triple codec support
- WiseStream II support

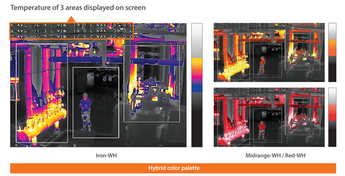

- 7 selectable color palettes
- Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
- 2-way bi-directional audio & Alarm I/O support
- SD / SDHC / SDXC memory slot (Maximum 256GB)
- Operating temperature -40?F ~ +140?F
- PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
| Brochure | Download |
Video
Specifications
Product
| Model number | TNO-4030T |
| GTIN code | 8801089115065 |
| Brand | Hanwha |
| Category |
IP Cameras
Thermal
|
| HS Code |
852589
|
| Weight |
3124 grams
|
| Size (lxwxh) |
269
x 477 x 203 millimeters
|
|
Basic Functionality
|
Local Storage
|
|
Hanwha Series
|
Wisenet T
|
|
Angle of View
|
11° -30°
|
|
Encoding
|
H264
H265
MJPEG
|
|
Thermal camera properties
|
Bullet
≥ 30 fps
|
| Date published | 10/17/2023 |
