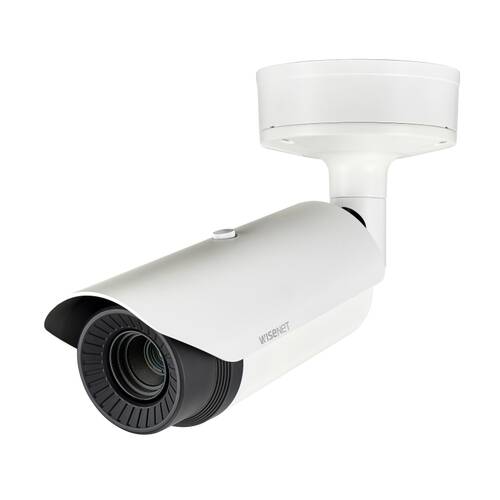

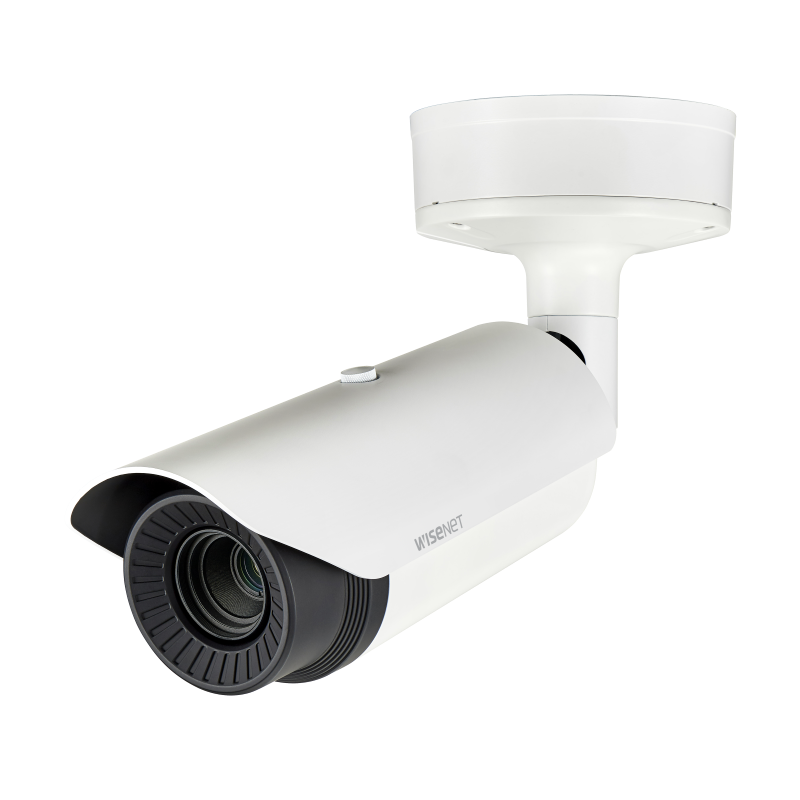

Hanwha TNO-4030TR

Hanwha Article code TNO-4030TR

NetcamCenter {{ fullProductName }}

Outdoor Thermal Camera, 13mm, 48.6°, 30fps, 640x480 Resolution
In stock
Buy now
+ Quote
  • 640x480 resolution
  • 13mm lens with 48.6° angle of view

Description Hanwha TNO-4030TR

T-series outdoor thermal radiometric network camera, VGA @30fps, 13mm fixed lens (48.6°), triple codec H.265/H.264/MJPEG with WiseStream II, multiple streaming, corridor view, motion detection, tamper detection, transfer, 7 color palettes, digital image stabilization with built-in gyro sensor, radiometry, bidirectional audio and microSD/SDHC/SDXC slot, IP66, IK10, Nema 4X, PoE/12VDC/24VAC

Key features:

  • High resolution radiometric thermal VGA resolution (640 x 480).
  • Built-in 13mm fixed lens
  • 30 fps at all resolutions (H.265, H.264, MJPEG)
  • H.265, H.264, MJPEG triple codec support
  • WiseStream II support
  • 7 selectable color palettes
  • User-defined area and spot temperature monitoring and warning with average/minimum/maximum display
  • Tampering, Loitering, Directional/Virtual Fence Line Detection, Entry/Exit, (Dis)appearance, Audio Detection, Motion Detection, Sound Classification, Shock Detection, Temperature Change Detection
  • 2-way bi-directional audio and alarm I/O support
  • SD/SDHC/SDXC memory slot (maximum 256 GB)
  • Operating temperature -40°F ~ +140°F
  • PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10

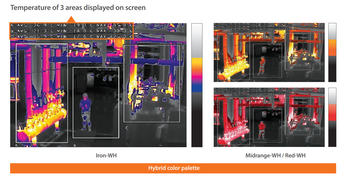

TNO series temperature displayed

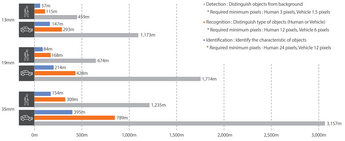

TNO series detection range

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

Video

Specifications

Product
Model number TNO-4030TR
GTIN code 8801089151124
Brand Hanwha
Category
IP Cameras
Thermal
HS Code
852589
Weight
3124 grams
Size (lxwxh)
269 x 477 x 203 millimeters
Basic Functionality
Local Storage
Hanwha Series
Wisenet T
Angle of View
11° -30°
Encoding
H264
H265
MJPEG
Thermal camera properties
Bullet
≥ 30 fps
