Veracity VHW-HWPS-C4

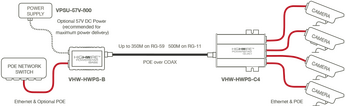

Connect up to 4 IP cameras with HIGHWIRE Powerstar Quad over an existing coax cable

HIGHWIRE Powerstar Quad’s unique ultra low-power design and efficient power delivery enables long range Ethernet over coax. It works even over the lowest grade cable, such as the high-resistance, copper-clad steel (CCS) types found in many legacy installations. This means that legacy coax upgrades can be planned with confidence, while a quick check of the SafeView™ power level display reaffirms that the device connections will continue to be reliable, whatever the cable used. For predictable network operation with no restrictions, HIGHWIRE technology delivers a full 200Mbit/s of bandwidth at 300m (1000 ft) of RG-59 or 500m (1600 ft) of RG-11 coax.

Key Features:

• Re-uses existing coax cable for up to 4 IP cameras or devices
• Integrated 4-port POE switch (POE Plus with local power option)
• Eliminates separate power cabling with POE-over-Coax™
• Compatible with all HIGHWIRE Powerstar Base units (1, 4 & 8ch)
• Instantly check connection and power level with SafeView™
• Completely automatic connection, no configuration required
• 100BaseTX performance over 300m of RG59 (500m on RG11)
