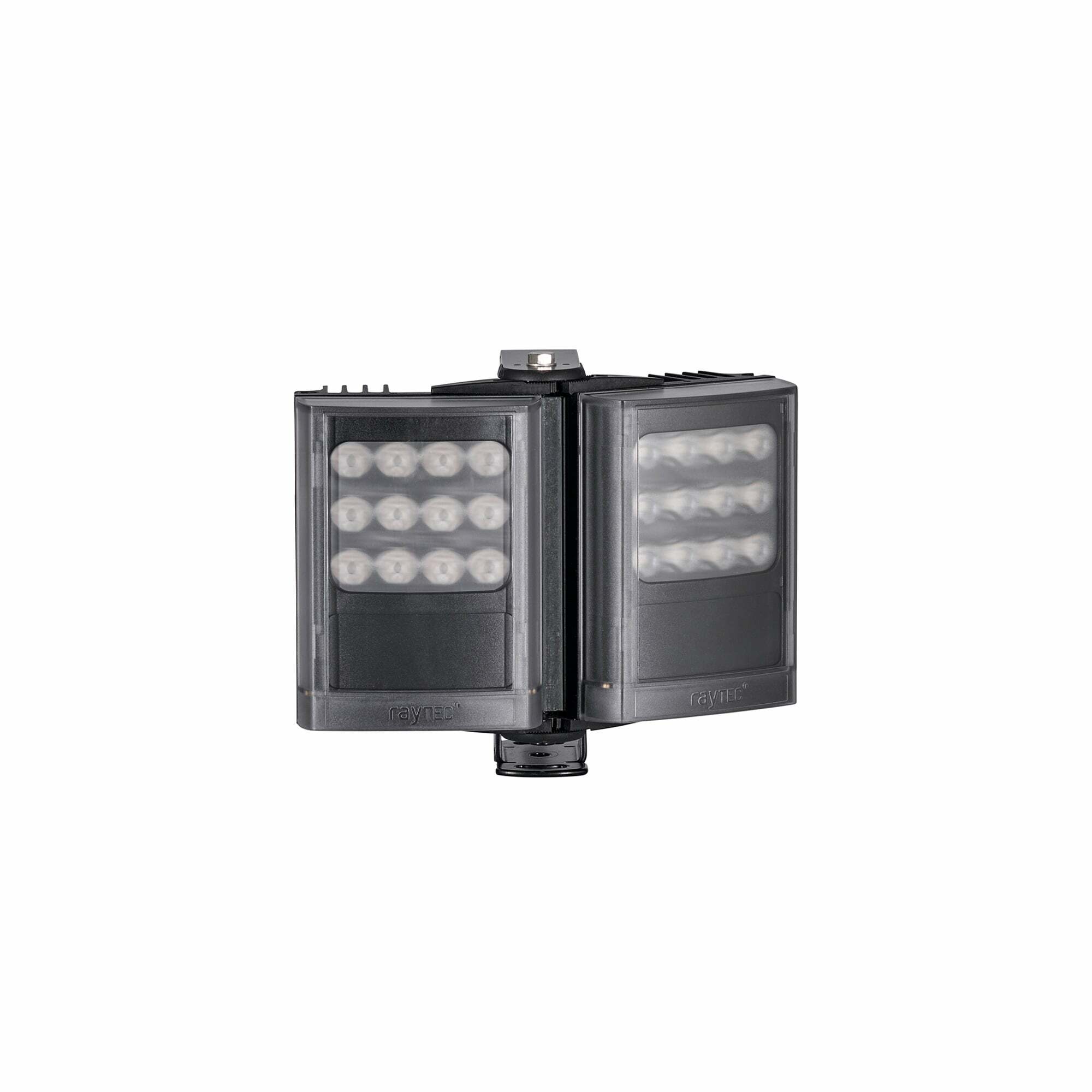

Raytec VAR2-i6-2
{{ fullProductName }}
- Range 180° 35m to 10° 282m
- Lens 10°, 35° and 60° standard
- Lens 80° and 120° optional
Description Raytec VAR2-i6-2
Long Range Infra-Red Illuminator
Delivering world leading power and illumination distances VARIO2 next generation illuminators can improve the performance of any video surveillance system at night. VARIO2 illuminators use PLATINUM Elite SMT LED technology to deliver more power and greater distances from a smaller platform than current generation illuminators. Providing a broader range of solutions, the VARIO2 series also offers a suite of advanced security features for easier programming and safer operation of smart lighting systems. VARIO2 features an interchangeable lens system with Hot-spot Reduction Technology, and Adaptive Illumination™ on double and triple panel models to deliver highly even illumination, where it is most needed, for outstanding night-time images. With the optional hand-held remote control, VARIO2 also makes installation and commissioning quicker, easier and safer. The VARIO2 i6-2 Infra-Red series delivers maximum distances up to 282m (925ft).
| Lens angle | Narrow Angle Distances | Wide Angle Distances |
|---|---|---|
| 10° x 10° | 282m at 10° | 200m at 20° |
| 35° x 10° | 169m at 35° | 120m at 70° |
| 60° x 25° | 99m at 60° | 70m at 120° |
| 80° x 30° (optioneel) | 71m at 80° | 53m at 140° |
| 120° x 50° (optioneel) | 42m at 120° | 35m at 180° |
Table shows the lens's horizontal and vertical angle (H ° x V °) with corresponding distances.
Characteristics
- Distances up to 282m (925ft)
- PLATINUM Elite SMT LED Technology
- Hot-spot Reduction Technology (HRT)
- VARIO Interchangeable Lens System
- VARIO Remote Control (optional)
- Angles from 10-120 degrees – from 1 product
- Semi-Covert (850nm)
- Advanced Security Settings
Compatible products
Specifications
| Model number | VAR2-i6-2 |
| GTIN code | 5055877501117 |
| Brand | Raytec |
| Category |
