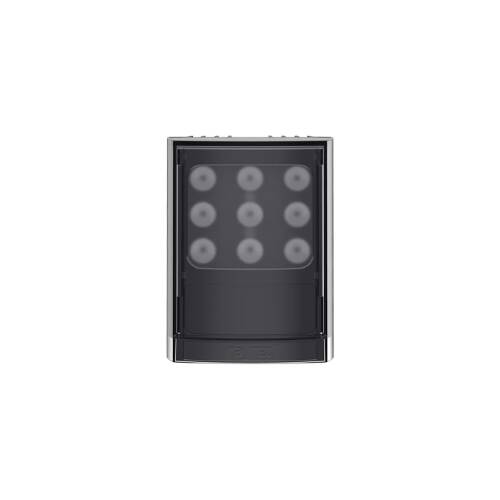

Raytec VAR2-i4-1

Medium Range Infra-Red Illuminator

Delivering world leading power and illumination distances VARIO2 next generation illuminators can improve the performance of any video surveillance system at night. VARIO2 illuminators use PLATINUM Elite SMT LED technology to deliver more power and greater distances from a smaller platform than current generation illuminators. Providing a broader range of solutions, the VARIO2 series also offers a suite of advanced security features for easier programming and safer operation of smart lighting systems. VARIO2 features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination, where it is most needed, for outstanding night-time images. With the optional hand-held remote control, VARIO2 also makes installation and commissioning quicker, easier and safer. The VARIO2 i4 Infra-Red series delivers maximum distances up to 144m (472ft).

Table shows the lens's horizontal and vertical angle (H ° x V °) with corresponding distances.

Key Features:

• Distances up to 144m (472ft)
• PLATINUM Elite SMT LED Technology
• Hot-spot Reduction Technology (HRT)
• VARIO Interchangeable Lens System
• VARIO Remote Control (optional)
• Angles from 10-120 degrees – from 1 product
• Semi-Covert (850nm) or Covert (940nm, only available on request)
• Advanced Security Settings
