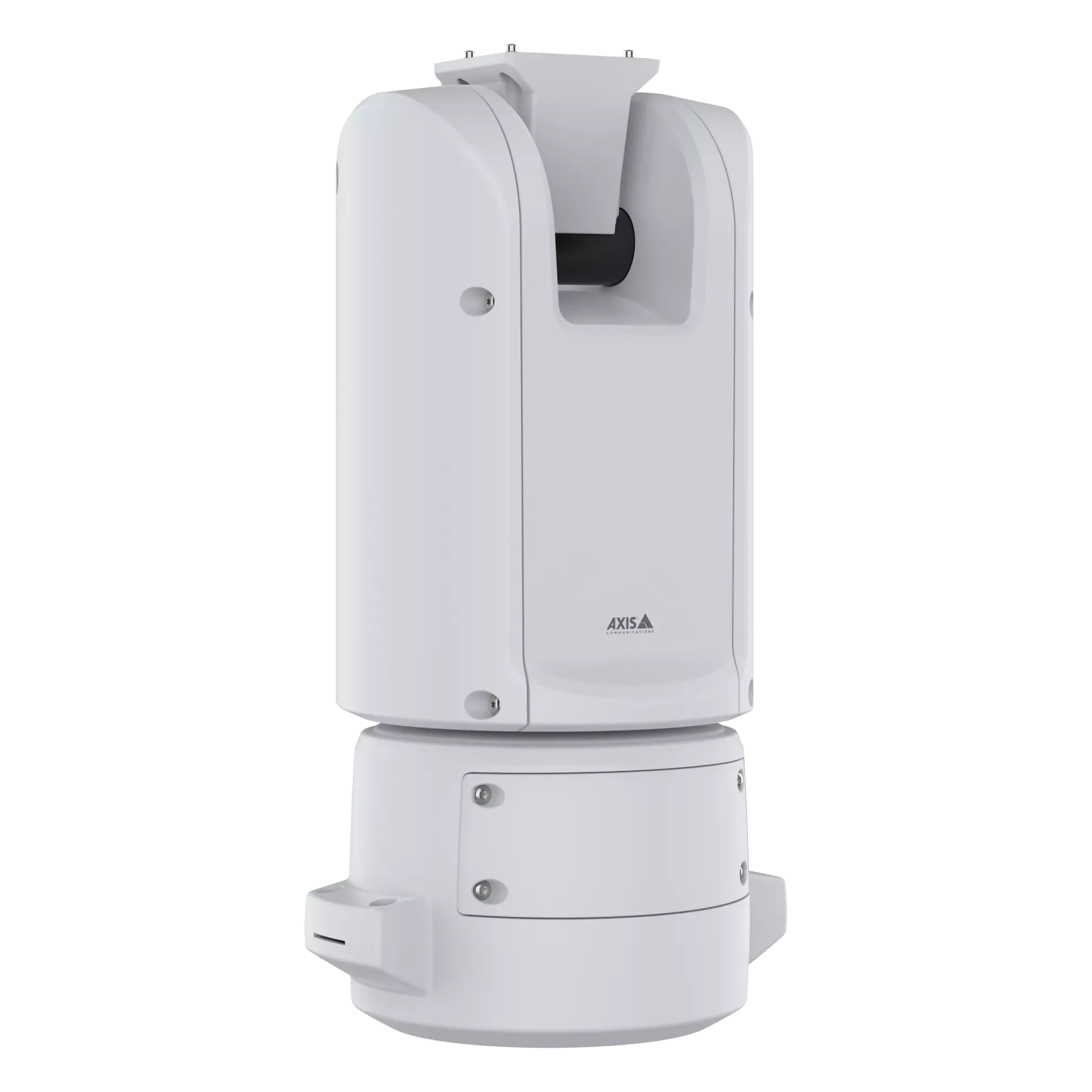

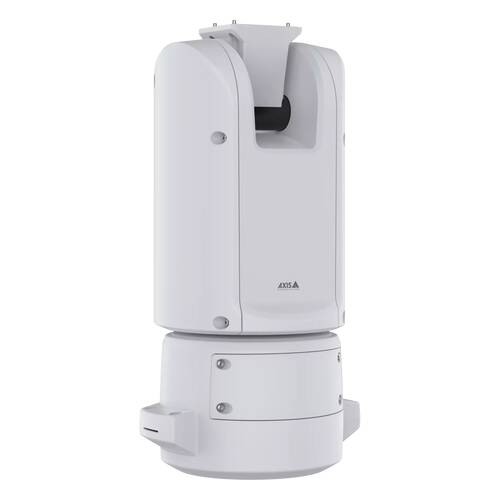

AXIS TQ1818-E
AXIS
Article code 03049-001
{{ fullProductName }}
utdoor positioning unit for selected AXIS box cameras and thermal cameras. Responsive positioning with 360° endless pan and 135° tilt. RJ45 and SFP interface, 56V AC or DC.
Description AXIS TQ1818-E
Ultra-smooth and high accuracy absolute positioning
AXIS TQ1818-E is a highly responsive and reliable positioning unit, designed for both high-speed and ultra-slow, jerk-free pan and tilt movements. Selected Axis box cameras and thermal cameras can be mounted on the positioning unit. When column-mounted, it enables a 360° unobstructed field of view for the camera and a ground-to-sky view of 135°. Reliable and robust, AXIS TQ1818-E is easy to mount in a variety of ways, thanks to optional mounts for wall and pole installations. The positioning unit includes both RJ45 and SFP interfaces, enabling a long-distance fiber-optic connection with a failover network link.
Key features:
- Responsive positioning with 360° endless pan and 135° tilt from ground to sky
- Long-distance network connection
- Power: 56 V AC or DC
- Weather protection
- For selected Axis box and thermal cameras
Compatible products
Thermal
- AXIS Q2101-TE 13 mm 30 fps
- AXIS Q2101-TE 13 mm 8.3 fps
- AXIS Q2101-TE 19 mm 30 fps
- AXIS Q2101-TE 19 mm 8.3 fps
- AXIS Q2101-TE 7 mm 30 fps
- AXIS Q2101-TE 7 mm 8.3 fps
- AXIS Q2111-E 60 mm 30 fps
- AXIS Q2111-E 60 mm 8.3 fps
- AXIS Q2112-E 10 mm 30 fps
- AXIS Q2112-E 10 mm 8.3 fps
- AXIS Q2112-E 100 mm 30 fps
- AXIS Q2112-E 100 mm 8.3 fps
- AXIS Q2112-E 19 mm 30 fps
- AXIS Q2112-E 19 mm 8.3 fps
- AXIS Q2112-E 25 mm 30 fps
- AXIS Q2112-E 25 mm 8.3 fps
- AXIS Q2112-E 35 mm 30 fps
- AXIS Q2112-E 35 mm 8.3 fps
- AXIS Q2112-E 60 mm 30 fps
- AXIS Q2112-E 60 mm 8.3 fps
Specifications
Product
| Model number | 03049-001 |
| GTIN code | 7331021088238 |
| Brand | AXIS |
| Category |
Other Products
Various
|
| HS Code |
852990
|
| Country of origin |
Poland
|
| Weight |
11800 grams
|
| Size (lxwxh) |
255
x 285 x 500 millimeters
|
|
Various
|
Positioning units
|
