Hanwha SPP-C12050P

SPP-C12050P M12 Power Cable – 5M, IP67-Rated, Halogen-Free

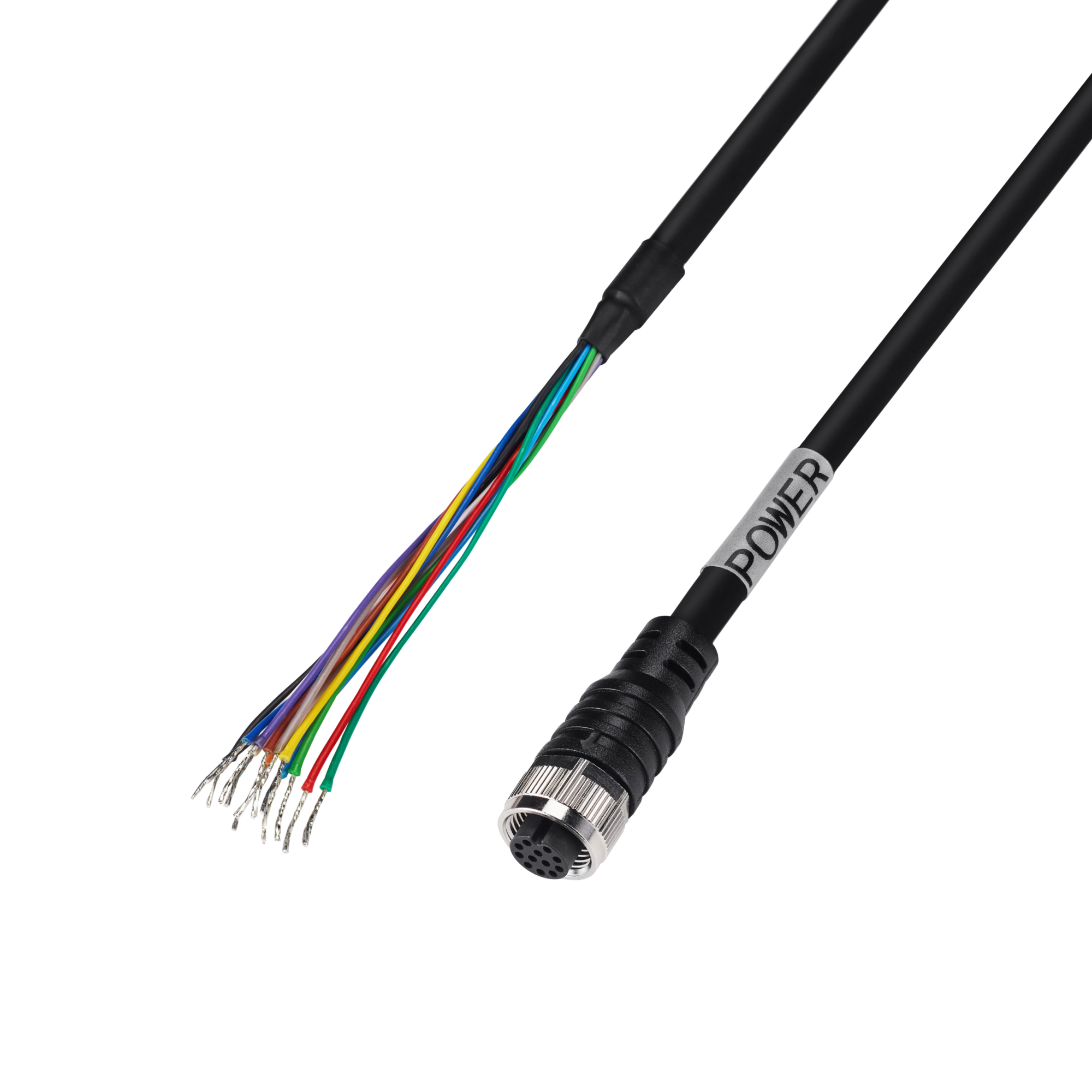

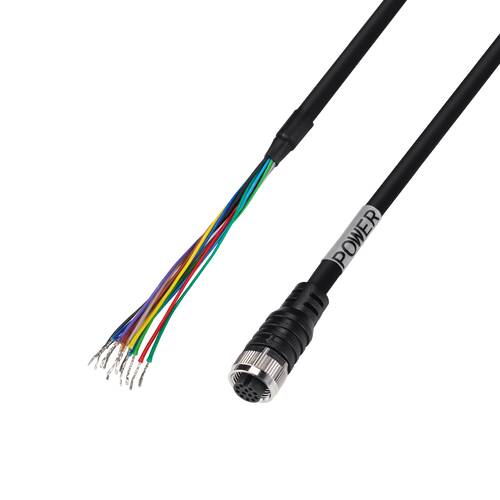

The SPP-C12050P is a 5-metre (16.4ft) M12 power cable designed to connect compatible security cameras to their power supply. It has a female, 12-pin, straight, L-coded M12 connector on connector A, while connector B is supplied with unterminated cable cores for flexible wiring. The cable features a black PVC jacket with a diameter of Ø6.8mm±0.20 and a 5 x 1.5 mm² core cross-section, and carries an IP67 protection rating that guards against dust, moisture and vibration. It is rated for 50VAC/60VAC/80°C 300V and 4.6A, and is qualified for drag chain use. The cable is also halogen-free, oil-resistant and flame-retardant, and is compatible with the TNS-9040IBC, TNS-9050IBC and TNS-9060IBC accessories.

Key Features:

• 5M (16.4ft) M12 power cable
• IP67-rated: protects against dust, moisture and vibration
• Female, 12-pin, straight, L-coded M12 connector
• Halogen-free, oil-resistant and flame-retardant
• Qualified for drag chain use
• Compatible with TNS-9040IBC, TNS-9050IBC, TNS-9060IBC
