Hanwha SPP-C08050E

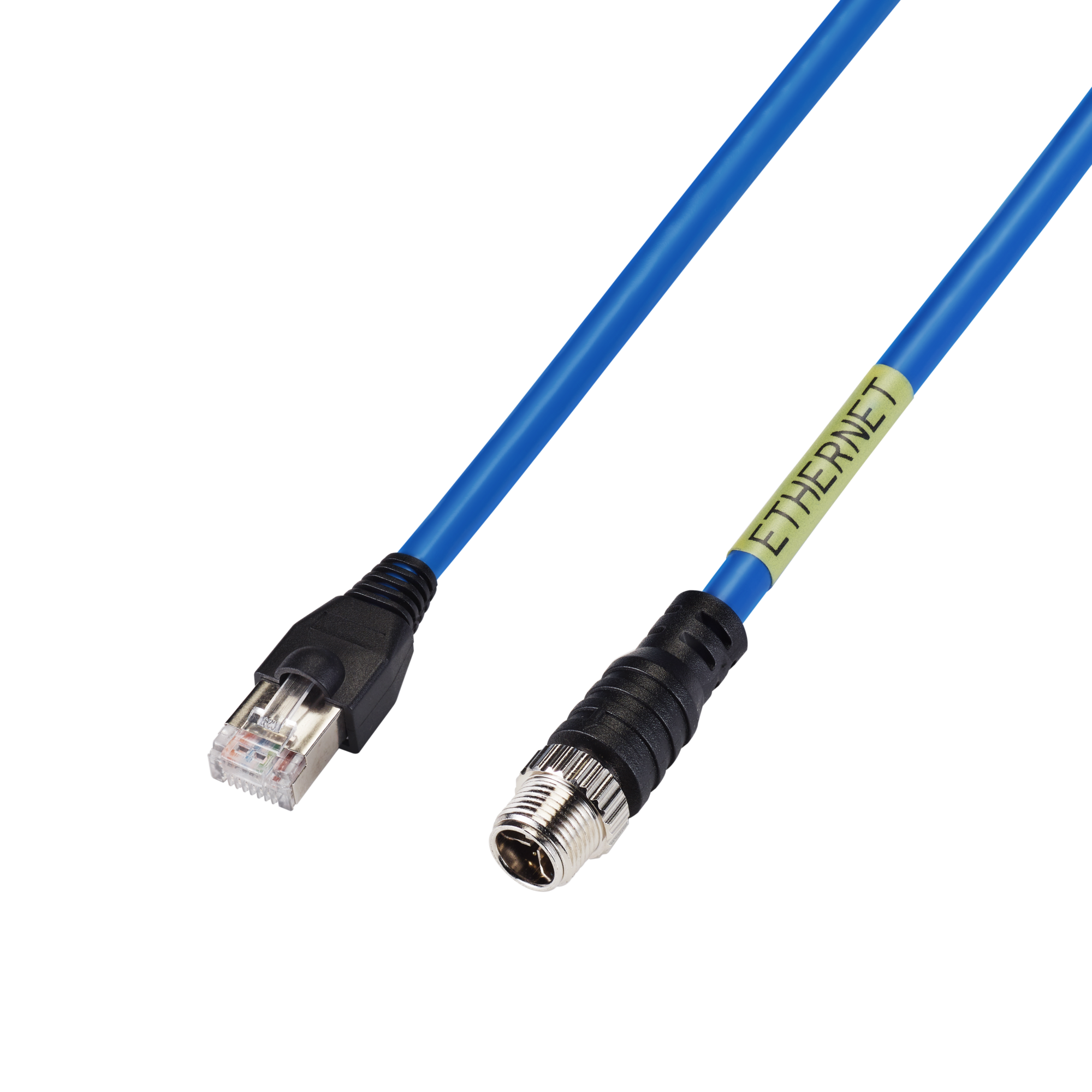

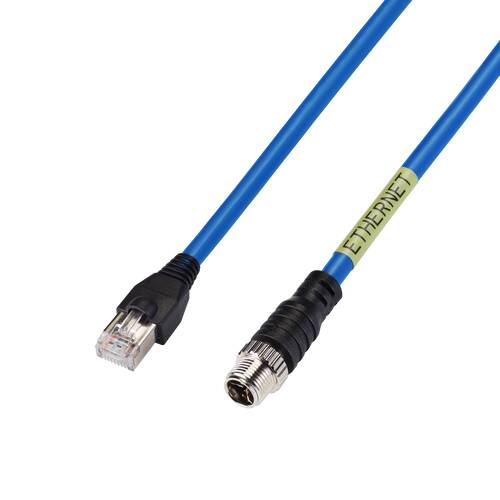

SPP-C08050E M12-RJ45 Ethernet Cable, 5M, IP68 Rated

The SPP-C08050E is a 5M (16.4ft) M12-to-RJ45 Ethernet cable designed to connect IP68-rated cameras to standard network equipment. Its M12 8-pin X-code connector mates to the camera end while a gold-plated RJ45 (8P8C) connector terminates the system end, wired to EIA/TIA 568B. Built with a CAT6 S/FTP conductor in a blue PVC/PE jacket, it protects against dust, moisture and vibration and carries an IP68 protection rating. The cable supports 1 Gbps network connectivity and IEEE 802.3bt PoE++, delivering up to 51W to the connected device (60W at the source). It is compatible with the TNS-9040IBC, TNS-9050IBC and TNS-9060IBC accessories and is backed by a lifetime limited warranty.

Key Features:

• 5M (16.4ft) length
• M12 8-pin X-code to RJ45 (gold-plated) connectors
• IP68 rated, protects against dust, moisture and vibration
• CAT6, S/FTP shielded, 1 Gbps network compatibility
• IEEE 802.3bt PoE++, up to 51W to connected device
• Snagless connector, lifetime limited warranty
