Hanwha SHD-1408FPW

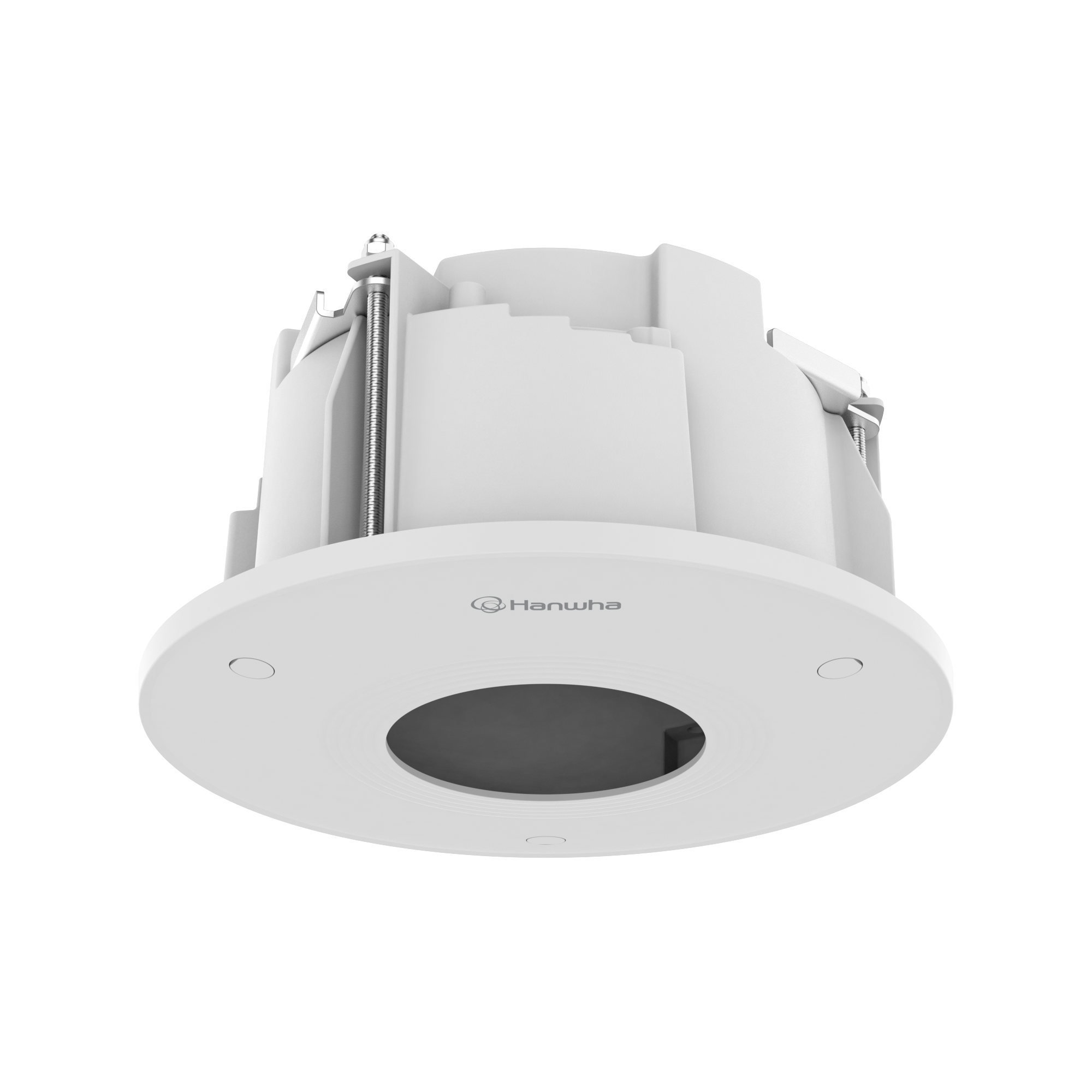

SHD-1408FPW In-ceiling Mount for Dome Cameras

The SHD-1408FPW is an in-ceiling flush mount housing designed for dome cameras. It features an aluminum enclosure with a polycarbonate (PC) top cover, finished in white (RAL9003). The housing measures Ø209mm x H115mm (8.23" x 4.53") and weighs 1,020g (2.25 lb), and is designed to fit ceiling tiles with a thickness of 5~70mm. It includes conduit holes of 19.1mm (3/4", M25) and 12.7mm (1/2", M20) for cable routing, and supports installation via a QR installation guide. The SHD-1408FPW is compatible with a range of Hanwha Vision dome camera models.

Key Features:

• Aluminum enclosure with polycarbonate (PC) top cover
• White finish (RAL9003)
• Compact dimensions: Ø209mm x H115mm (8.23" x 4.53"), 1,020g (2.25 lb)
• Fits ceiling tile thickness of 5~70mm
• Conduit holes: 19.1mm (3/4", M25) and 12.7mm (1/2", M20)
• QR installation guide support
