Hanwha XNV-8030R
Hanwha
Article code XNV-8030R
{{ fullProductName }}

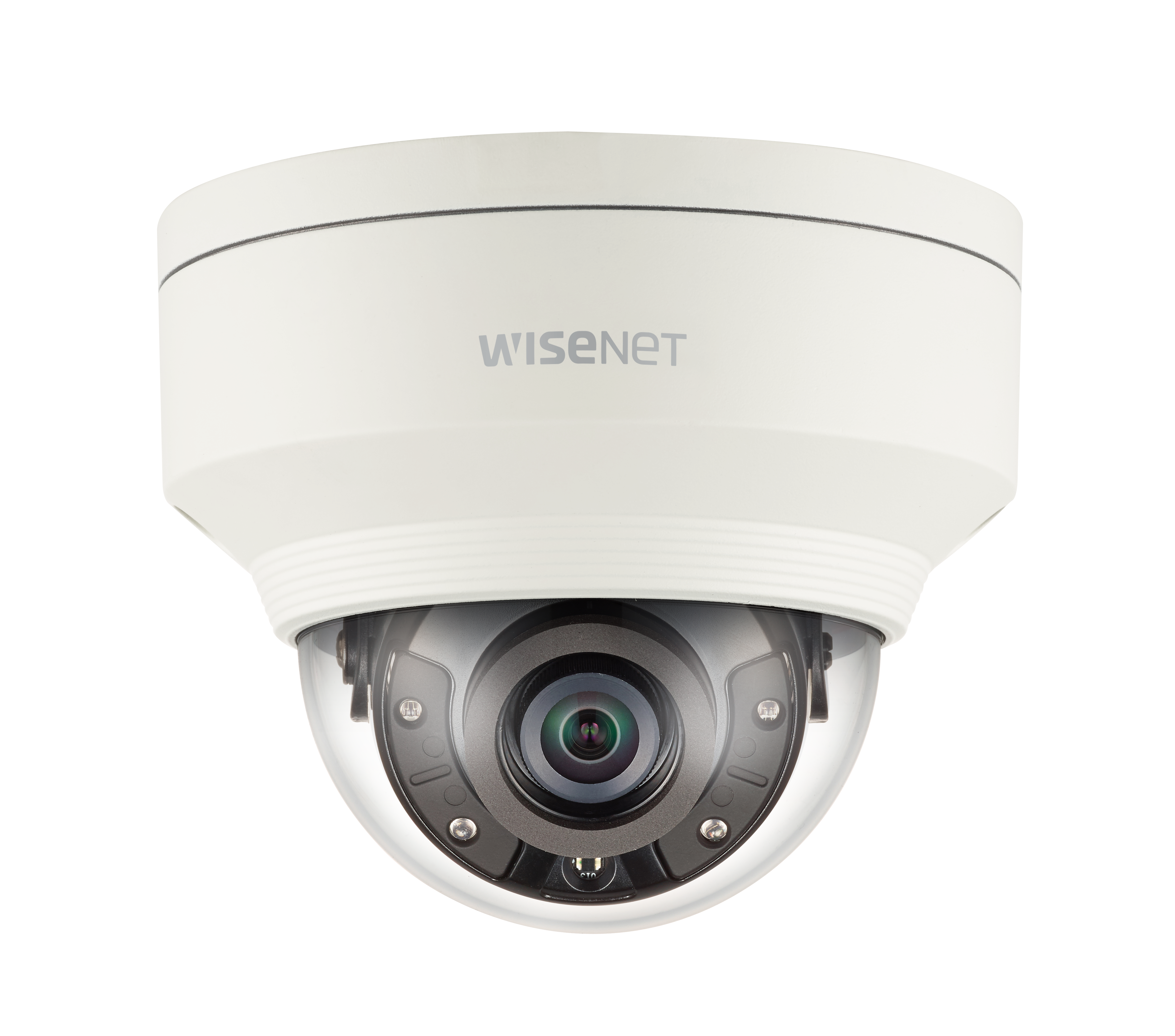

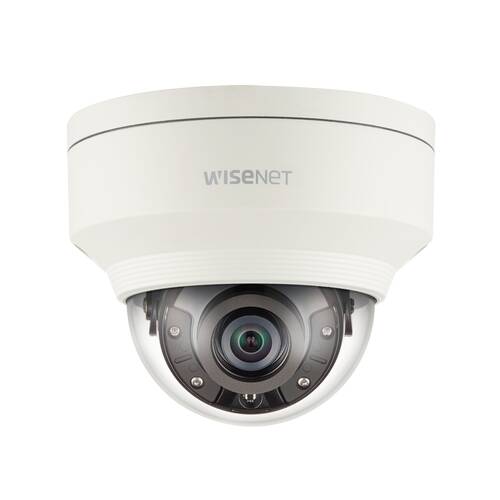

Outdoor 5MP IR Vandal Resistant Dome Camera, 4.6mm, Fixed lens 78° - 58°, 30fps, Day / Night, 120dB WDR, IP67
- Outdoor 5MP IR Vandal Resistant Dome Camera
- Fixed lens 78° - 58°
- Light sensitivity colour: 0.16 lux
- Suitable for People Counting, Queue Management and Heatmap
Description Hanwha XNV-8030R
WiseNet X powered by WiseNet 5 network IR outdoor vandal dome camera, 5MP @30fps WDR off/on, 4.6mm fixed focal lens (77.9°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, Nema 4X
Key Features:
- Max. 5megapixel (2560 x 1920) resolution
- Built-in 4.6mm fixed lens (XNV-8030R)
- Max. 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Loitering, Directional detection, Fog detection, Audio detection,
- Digital auto tracking, Sound classification, Heatmap,
- People counting, Queue management, Tampering
- Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 512GB), PoE / 12V DC
- Hallway view, WiseStream II support
- IR viewable length 30m, IP67/IP66, IK10
- LDC support (Lens Distortion Correction)
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Mounting tools | Download |
Video
Specifications
Product
| Model number | XNV-8030R |
| GTIN code | 8801089143174 |
| Brand | Hanwha |
| Category |
IP Cameras
Dome
|
| HS Code |
852589
|
| Country of origin |
Vietnam
|
| Weight |
615 grams
|
| Size (lxwxh) |
340
x 290 x 340 millimeters
|
|
Camera Properties
|
Outdoor
Built-in infrared
Vandal resistant
|
|
Basic Functionality
|
Day and night
Local Storage
|
|
Resolution
|
5MP - 7MP
|
|
Software
|
Analytics
|
|
Hanwha Series
|
Wisenet X
|
|
Angle of View
|
61° - 90°
|
|
Encoding
|
H265
|
| Date published | 2/19/2021 |
