Hanwha SHD-1400FW

In-Ceiling Mount for QNV-C8083R/C9083R Security Cameras

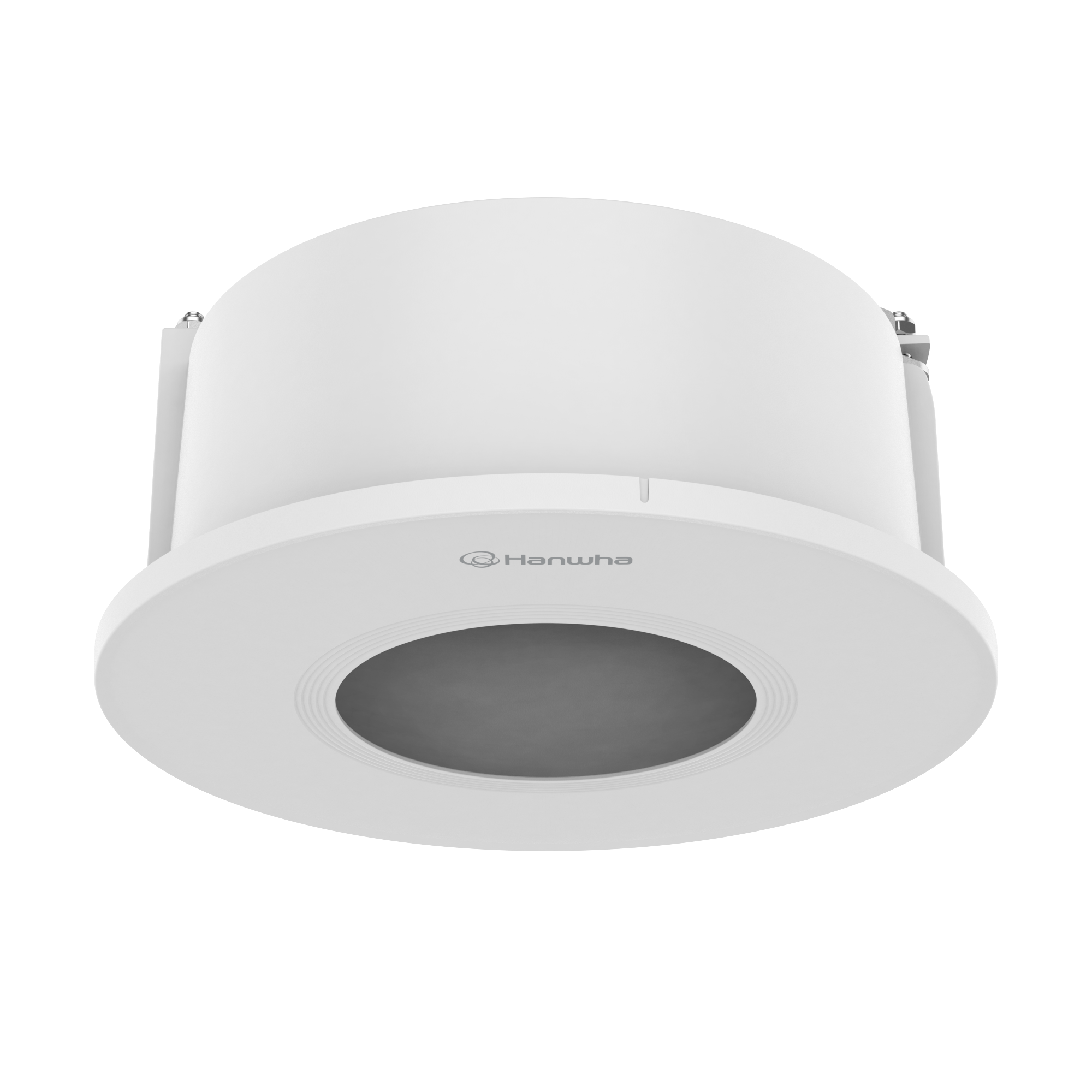

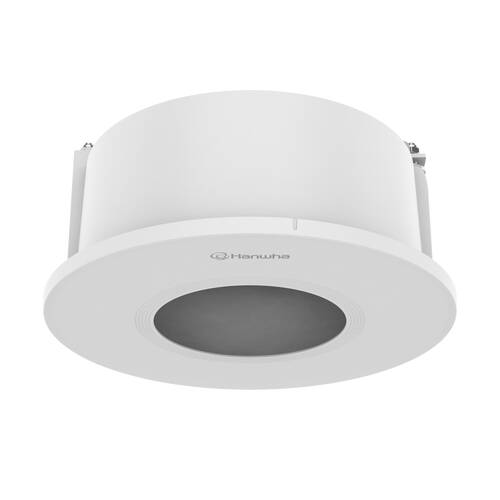

The SHD-1400FW is an in-ceiling mount designed specifically for the QNV-C8083R and QNV-C9083R camera models. Constructed from durable white PC (Polycarbonate), it offers a clean, low-profile finish that blends into ceiling installations. The mount is built to fit ceiling tiles with a thickness of 10~70mm and requires a ceiling hole size of ø185mm. It supports a maximum load of 2kg, while the ceiling board itself can bear up to 4kg. With overall dimensions of ø202.3x92.7mm and a weight of 505g, it provides a secure and discreet mounting solution.

Key Features:

• Color: White, Material: PC (Polycarbonate)
• Product dimensions: ø202.3x92.7mm / Weight: 505g
• Ceiling hole size: ø185mm
• Tile thickness: 10~70mm
• Max. load: 2kg (max. ceiling board load: 4kg)
• Supported products: QNV-C8083R/C9083R
