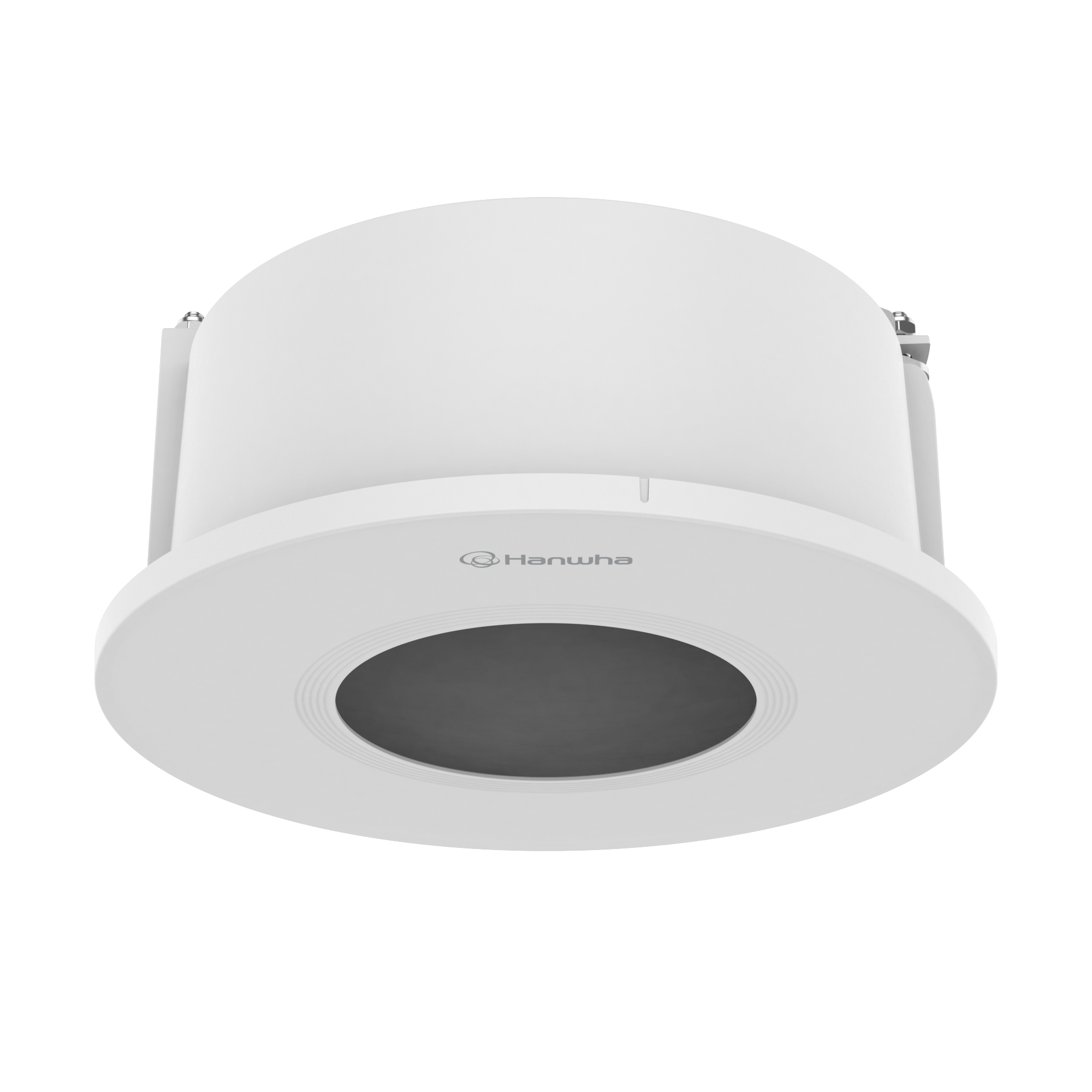

Hanwha SHD-1400FPW

SHD-1400FPW In-ceiling Mount Plenum for QNV-C8083R/C9083R

The SHD-1400FPW is an in-ceiling mount plenum designed for the QNV-C8083R and QNV-C9083R cameras. Made from aluminum with a white finish (RAL9003), it offers a durable and discreet mounting solution for ceiling installations. The mount fits tiles with a thickness of 10~70mm and requires a ceiling hole size of ø185mm. With product dimensions of ø202.3x92.7mm and a weight of 835g, it is built to support a max load of 2kg, while the ceiling board itself can support up to 4kg.

Key Features:

• Color: White (RAL9003)
• Material: Aluminum
• Ceiling hole size: ø185mm (ø7.28")
• Tile thickness: 10~70mm (0.4~2.8")
• Mount screw size: TR20
• Max. load: 2kg (4.41lb), max. ceiling board load: 4kg (8.82lb)
