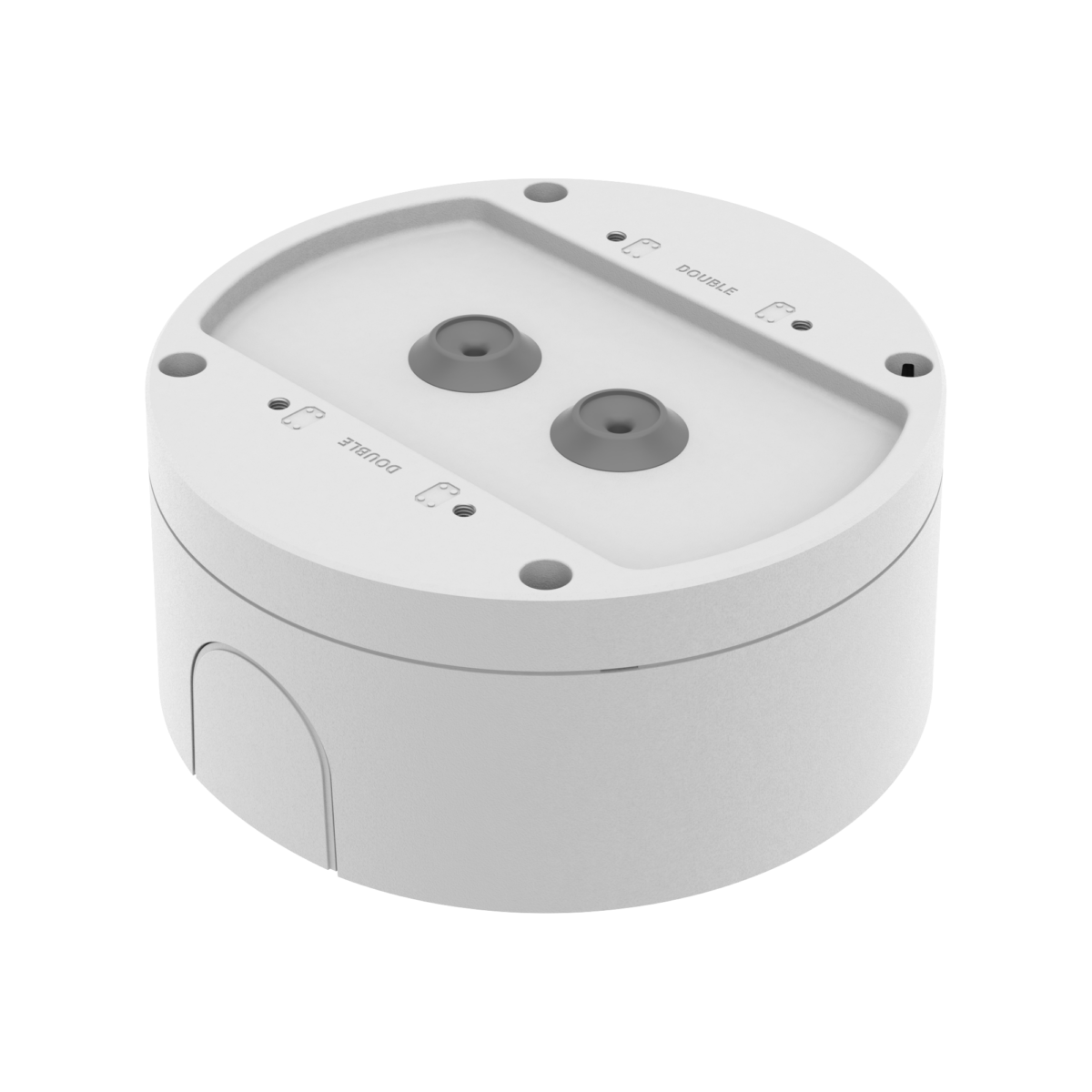

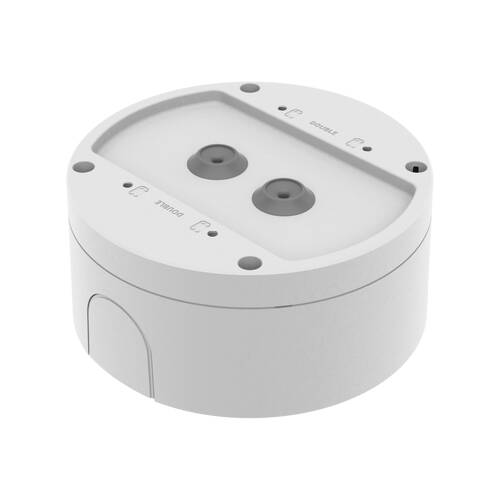

Hanwha SBV-140WW

Weatherproof Aluminum Back Box for Hanwha Vision Dome Cameras

The SBV-140WW is a waterproof back box designed for mounting compatible Hanwha Vision dome cameras. Constructed from aluminum and finished in white (RAL9003), it offers IP66 and NEMA4X rated protection against water and dust ingress. The back box measures ø144.2x64.5mm and weighs 835g, with a conduit hole of 19.1mm (3/4") (M25) for cable routing. It supports a maximum load of 2kg and uses a TR20 mount screw. The SBV-140WW is compatible with the QNV-C8083R/C9083R, QNV-C8011R/C8012/C9011R, QND-6011/6021, QND-8011/8021, QND-6012R/6022R/6082R, QND-7012R/7022R/7082R, and QNE-8011R/8021R camera series.

Key Features:

• IP66 and NEMA4X rated protection
• Aluminum construction in white (RAL9003)
• Compact dimensions: ø144.2x64.5mm, 835g
• Max. load capacity of 2kg
• Conduit hole: 19.1mm (3/4") (M25)
• Compatible with multiple QNV/QND/QNE camera models
