Hanwha SBP-160WMW1

Durable Aluminum Wall Mount for Compatible Network Cameras

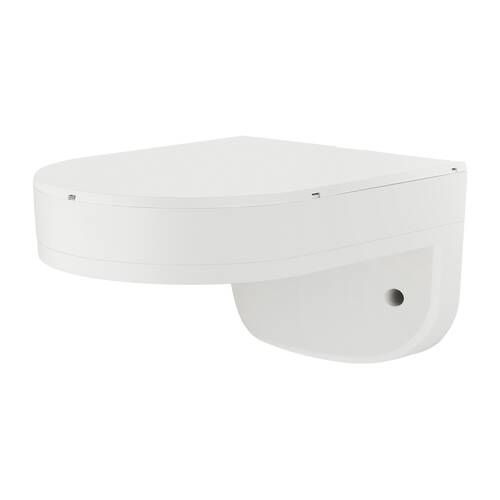

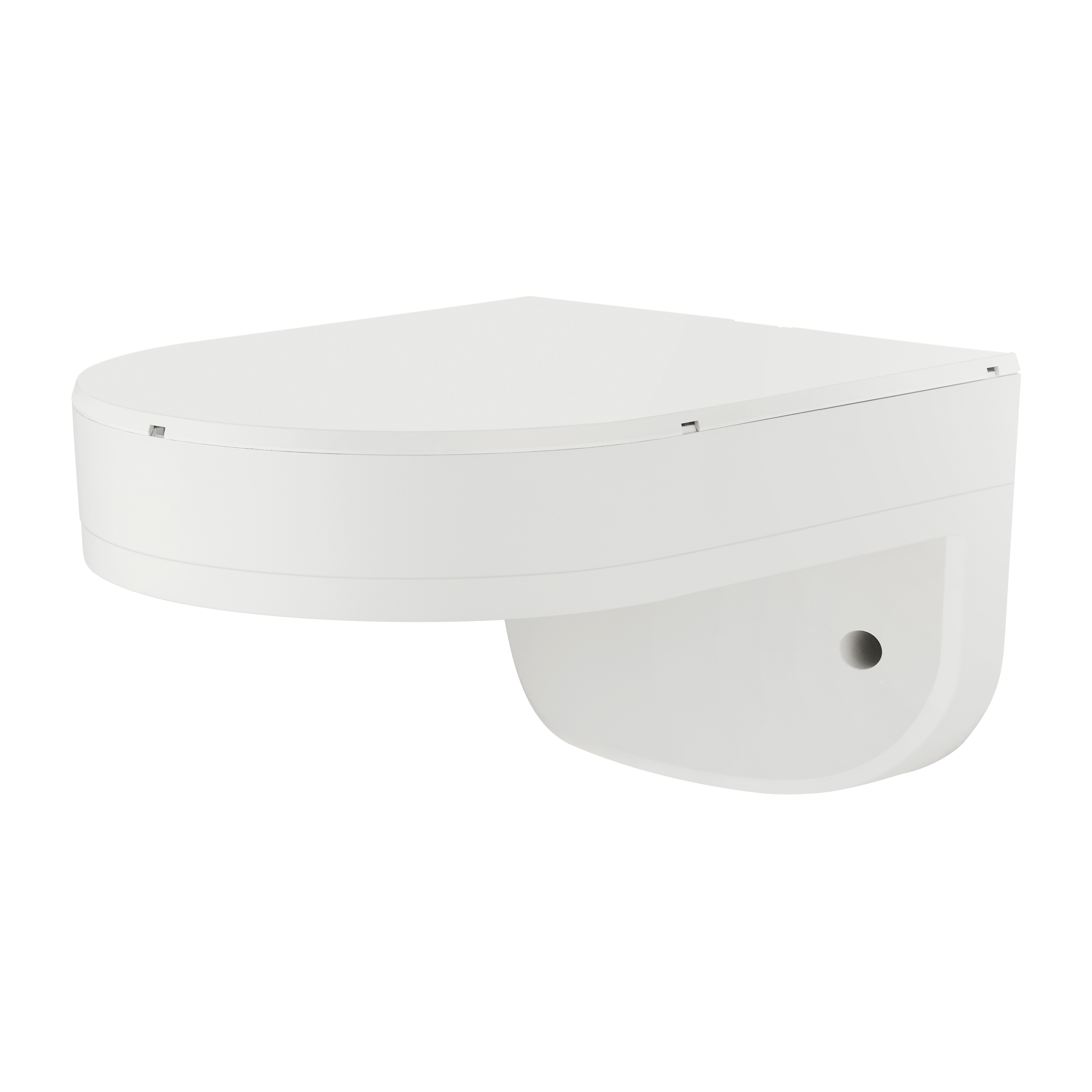

The SBP-160WMW1 is a wall mount bracket designed for indoor installation of compatible network cameras. Constructed with an aluminum body and a polycarbonate cover, it offers a durable housing finished in white (RAL9003). The mount measures 169.7(W)x118.3(H)x214.8(D)mm and weighs 696g, with a 19.1mm (3/4") M25 conduit hole for cable routing. Its gangbox hole supports single, double, 4" octagon, and 4" square junction boxes for flexible installation. It is compatible with a range of XND, XNV, XNF, and PND series cameras, including XND-C6083RV/C7083RV/C8083RV/C9083RV, XND-6083RV/8083RV/9083RV, XNV-C6083R/C7083R/C8083R/C9083R, XND-8082RV/9082RV, XNF-9010RV/9013RV, and PND-A6081RV/A9081RV. For indoor use only.

Key Features:

• Aluminum body with polycarbonate cover, white finish (RAL9003)
• Dimensions: 169.7(W)x118.3(H)x214.8(D)mm, weight 696g
• Conduit hole: 19.1mm (3/4") M25
• Gangbox hole supports single, double, 4" octagon, and 4" square boxes
• Compatible with XND-C6083RV/C7083RV/C8083RV/C9083RV, XND-6083RV/8083RV/9083RV, XNV-C6083R/C7083R/C8083R/C9083R, XND-8082RV/9082RV, XNF-9010RV/9013RV, PND-A6081R
• Indoor use only
