Hanwha SBP-142CMW
Hanwha
Article code SBP-142CMW
{{ fullProductName }}
White Ceiling Mount for TNM-3620TDY, TNM-C3620TDR/C3622TDR
Description Hanwha SBP-142CMW

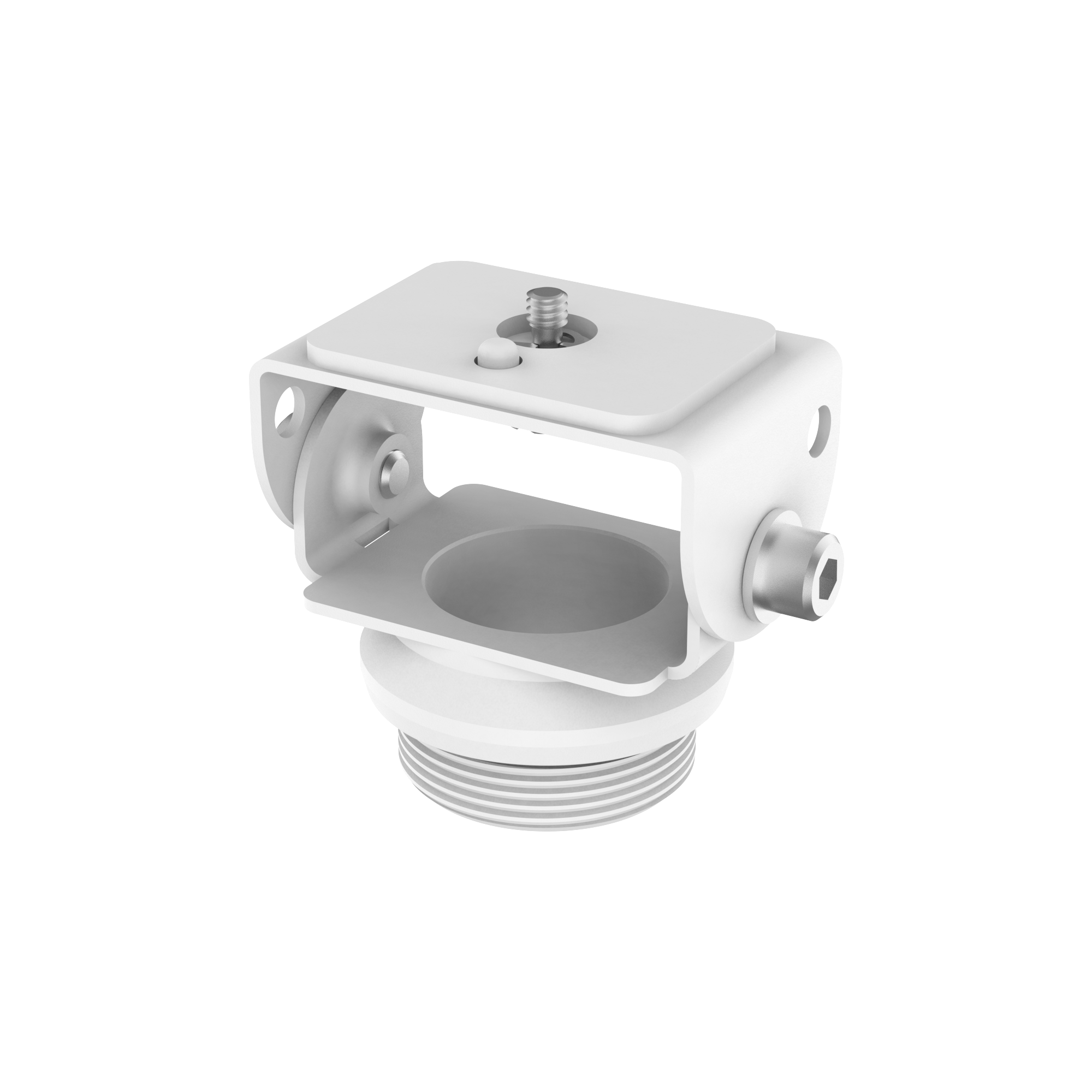

SBP-142CMW Ceiling Mount for Hanwha Vision Cameras
The SBP-142CMW is a ceiling mount bracket designed for Hanwha Vision cameras, compatible with the TNM-3620TDY, TNM-C3620TDR and TNM-C3622TDR models. Made from aluminum with a white finish (RAL9003), it offers a durable and discreet mounting solution for ceiling installations. The compact bracket measures 74.3x58x19.8mm and weighs 380g, with a maximum load capacity of 3.5kg. It is secured using two 6mm hexagon mount screws.
Key Features:
- Ceiling mount design
- Compatible with TNM-3620TDY, TNM-C3620TDR/C3622TDR
- Aluminum construction
- White finish (RAL9003)
- Max. load 3.5kg
- Hexagon mount screws (6mm, 2pcs)
Compatible products
Thermal
Specifications
Product
| Model number | SBP-142CMW |
| GTIN code | 8801089229465 |
| Brand | Hanwha |
| Category |
Other Products
Mounts
|
| HS Code |
830249
|
| Country of origin |
Vietnam
|
| Weight |
380 grams
|
| Size (lxwxh) |
140
x 140 x 135 millimeters
|
|
Mounting Brackets
|
Drop Ceiling Mount
|
| Date published | 7/9/2024 |
