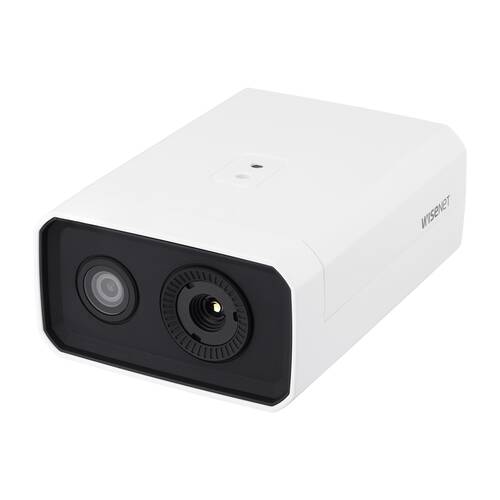

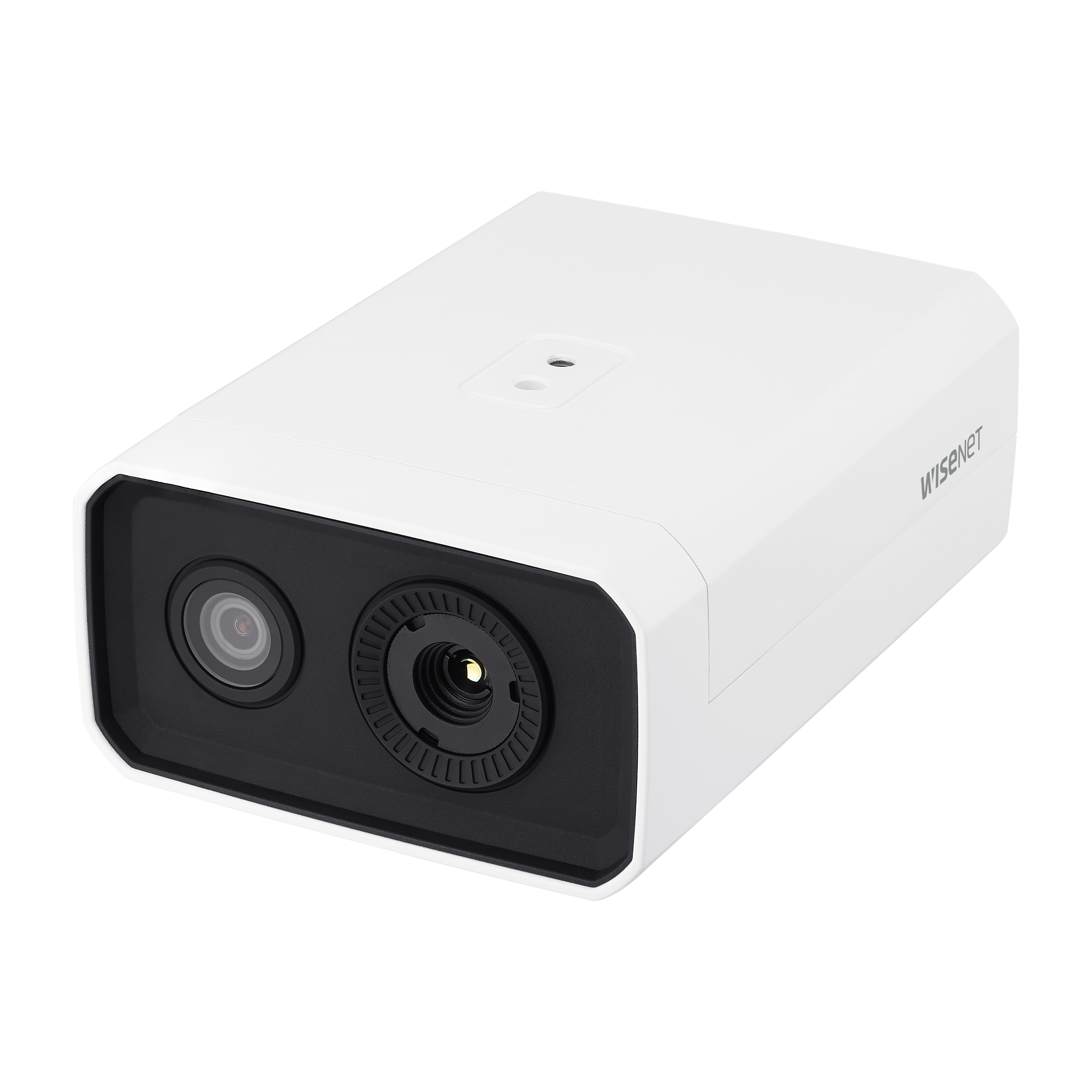

Hanwha TNM-3620TDY

Wisenet T network Bi-spectrum Temperature Detection Thermal camera, Thermal: QVGA @30fps, 4.7mm uncooled micro bolometer, Estimated body temperature (EBT) accuracy : ±0.5°C(±0.3°C with Blackbody), Visible: 2MP@30fps, 4mm fixed lens (87.6°), extreme WDR @150dB, triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, EBT: Temperature detection, Blackbody error, Advanced Video Analytics, Handover, 9 colour palettes, Digital Image Stabilization with built-in Gyro Sensor, Bi-directional audio and microSD/SDHC/SDXC slot, PoE+/12VDC.

Key benefits:

• IEC 60601 certificated Temperature Detection Thermal camera.
• FDA* 510(k) clearance (In progress).
• Dual purpose camera equipped with QVGA thermal imaging and high definition cameras, to help businesses operate safely during the COVID-19 era.
• EBT (Estimated Body Temperature mode). Able to accurately measure a persons temperature for a reliable and safe way to scan for fevers. Accuracy is further increased with Blackbody accessory.
• In Radiometric mode, the camera can measure changes in temperature with a high degree of accuracy, which will alert them
• to the threat of a fire in recycling, waste management and landfill type facilities.
• The camera can be used to monitor the temperate of specific areas or objects in a scene.
• Valuable equipment could be saved before it overheats.
• When the camera is no longer required for COVID-19, Radiometric mode can be used, making the camera a long-term investment.
• The 2 megapixel camera features Intelligent Video Analytics including directional detection, motion detection, enter/exit, virtual line, audio detection and tampering detection (These features are only in Normal mode, see table for more detail).
• Ability to connect external devices, such as a traffic light probe to indicate if there is a positive detection of high temperature.

Key features:

• Bi-spectrum : QVGA thermal & 2MP visible sensor
• Built-in 4.7mm fixed lens (thermal), 4mm fixed lens (visible)
• Two temperature detection modes
• Estimated Body Temperature Mode : 30~45°C (86~113°F) / ±0.5°C (±0.3°C with blackbody)
• Normal Radiometric mode: -20~130°C (-4~266°F) / ±5 ̊C(≤100 ̊C), ±20%(>100 ̊C)
• AI-based face and temperature detection analytics
• MicroSD 1slot
• PoE+/12VDC
