Hanwha SBD-110GP1

SBD-110GP1 Wall Adaptor Plate for Hanwha Vision Cameras

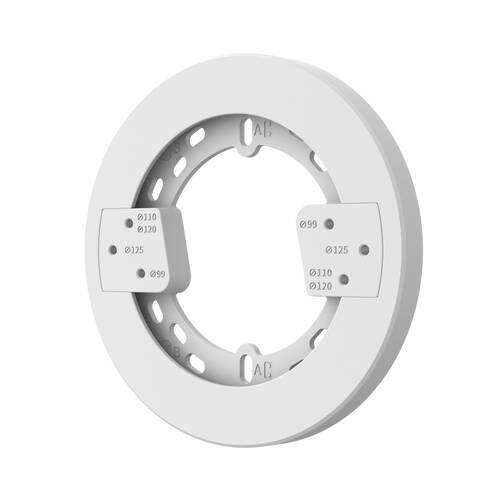

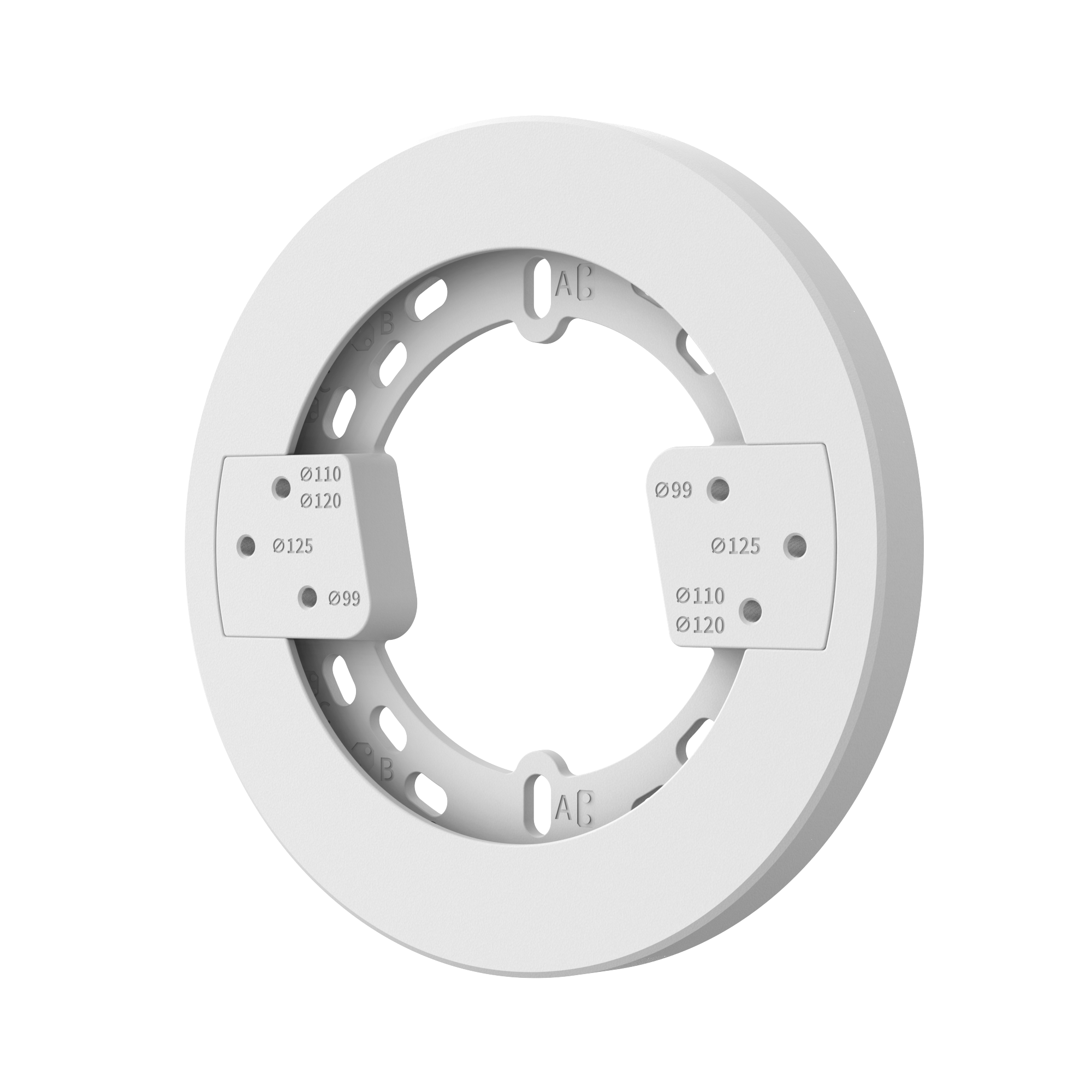

The SBD-110GP1 is a wall adaptor plate designed for mounting compatible Hanwha Vision cameras onto single, double, or 4" octagon wall boxes. It features an aluminum bottom and plastic top in white, with a compact ø140x12.2mm profile and a weight of 181g. The adaptor uses a TR20 mount screw and supports a wide range of QNV, QND, QNE, QNF, LND, and ANE series cameras, making it a versatile mounting accessory for compatible camera installations.

Key Features:

• Color: White
• Material: Bottom-Aluminum, Top-Plastic
• RAL code: RAL9003
• Dimensions: ø140x12.2mm (ø5.52x0.56"), Weight: 181g (0.39lb)
• Mount Screw size: TR20
• Supports QNV-C8011R/C8012/C9011R, QND-6011/6021/6012R/6022R/7012R/7022R, QND-8011/8021, QNE-8011R, QNF-8010/9010, LND-6012R/6022R, ANE-L6012R/L7012R
