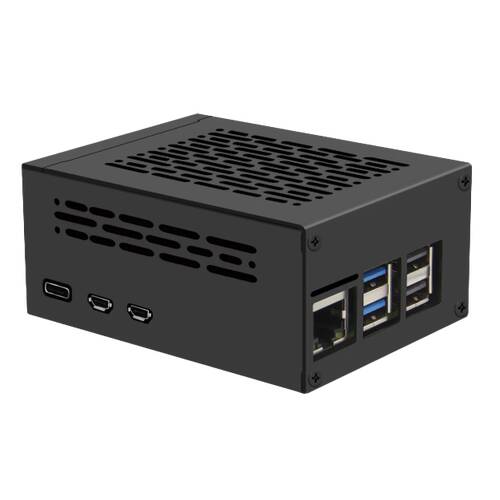

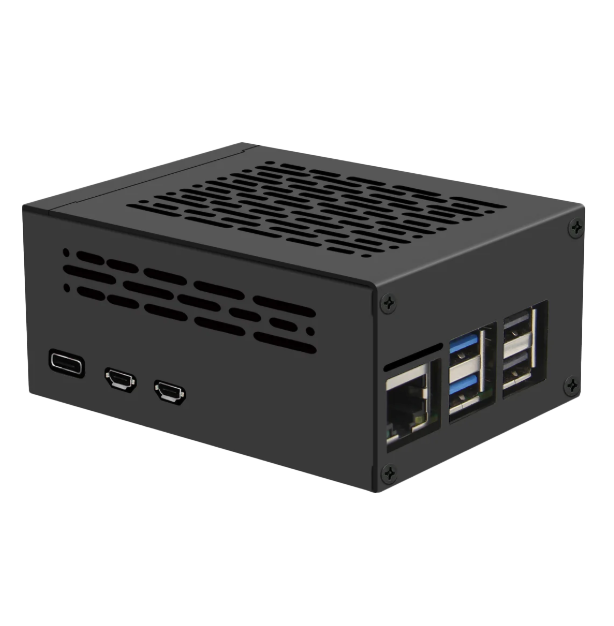

Netcamviewer NCV-MON-R5

NetcamViewer Monitor displays the images from an IP camera on a monitor.

Both via HDMI (cable included)

Note: This product is delivered without monitor.

Support for all known and unknown brands of cameras via brand selection or direct input of image path. Also support for ONVIF cameras. Maximum resolution 1080p, depending on the brand and model of camera and available network capacity.

Display of one camera in full screen or in sequence mode, where multiple cameras are shown full screen one after the other.

Also possible to the following multi-views:

• 2 cameras next to each other
• 2 cameras Picture-in-Picture
• 4 cameras simultaneously
• 9 cameras simultaneously

This device can be configured from the browser via PC, MAC, smartphone or tablet via an intuitive interface. Connection to the network via ethernet.

Mounting is possible via the separately ordered VESA-between-bracket. This bracket allows fixed mounting on a monitor, even if it is already attached to a wall or ceiling with a VESA bracket.

Connection to a network is only possible with an Ethernet cable, WiFi is not supported.

Applications:

Spot monitor at the entrance of stores

Picture in Picture or full screen on normal TV (depending on the capabilities of the TV)

Specifications:

• Full screen display of H265 RTSP stream 4K *
• Full screen display of (M) JPG in lower frame rate, depending on camera brand / resolution / quality
• Full screen display of multiple cameras in succession. Fully configurable display time.
• Audio playback if the camera supports this.
• Output signal HDMI (cable included)
• selection of display via API for operation via external unit (physical buttons or, for example, a doorbell)
• With multiview, maximum 720P per camera stream

Delivery includes:

• NetcamViewer Monitor unit (without monitor)
• AC adapter with world plug (110-220V)
• HDMI cable 1 m.

*4K depending on camera brand and model and available network capacity.
