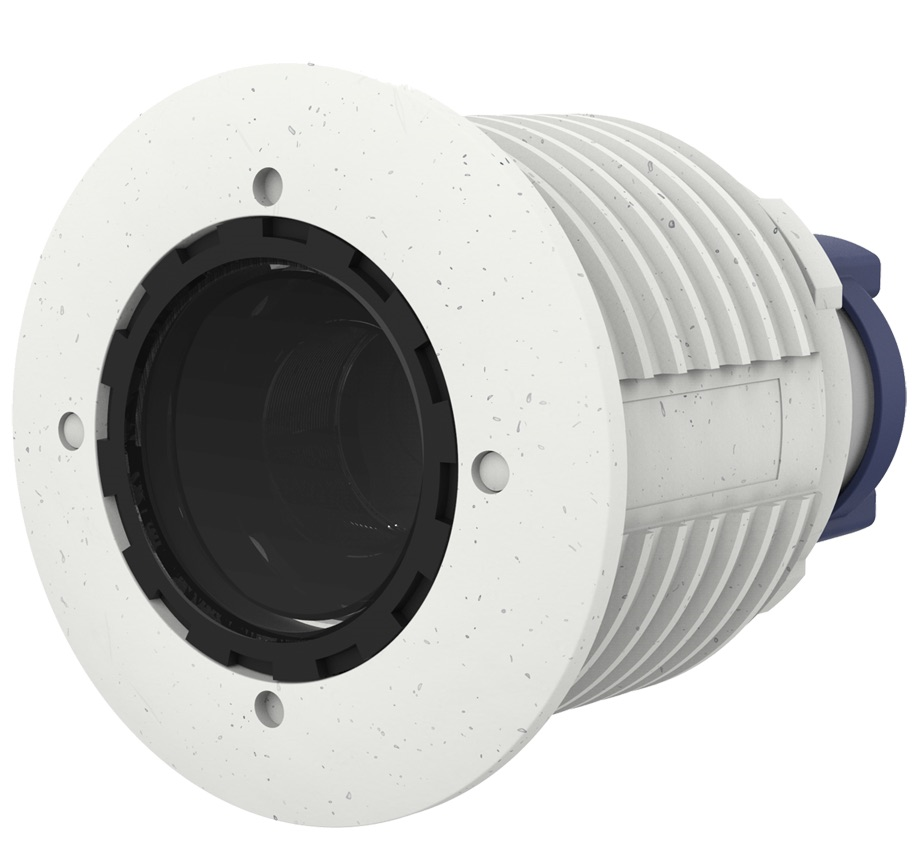

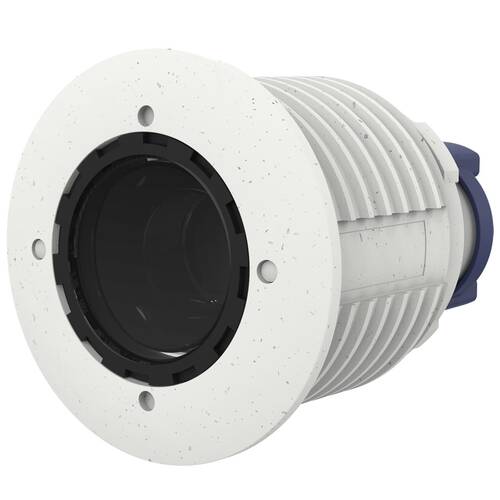

Mobotix Mx-O-M7SA-8L040

120° 4K LPF Sensor Module WIDE – Wide-Angle Lens for License Plate Detection

The Mx-O-M7SA-8L040 is a 120° 4K LPF sensor module for the M73 and S74 camera series, featuring a premium wide-angle lens for an extra-wide field of view. Its LPF special lens is designed for applications such as license plate detection, including capture with infrared light. The module offers an aperture of f/1.8 and a maximum image angle (HxV) of 120°x60°, providing wide horizontal and vertical coverage. It supports a maximum resolution of 4K UHD (3840x2160) for detailed imaging. The sensor module comes in a white, IP66-rated housing for protected installation.

Key Features:

• M73/S74 sensor module with premium wide-angle lens
• LPF special lens for license plate detection (with infrared)
• Aperture: f/1.8
• Max. image angle (HxV): 120°x60°
• Max. resolution: 4K UHD (3840x2160)
• IP66-rated, white housing
