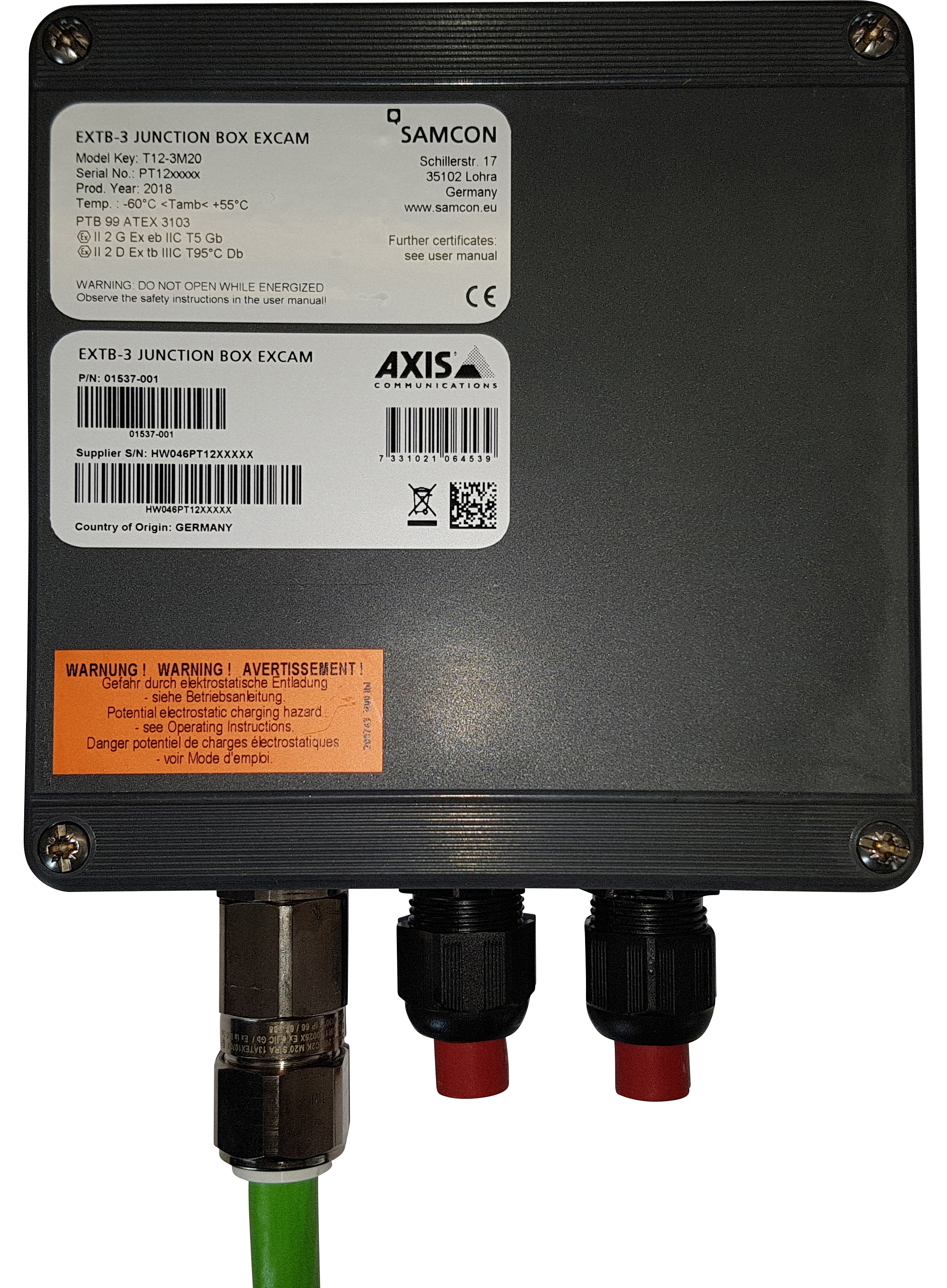

AXIS EXTB-3 Junction Box Excam

Product is compiled on request and therefore has a longer delivery time. For more information you can contact us.

Terminal box for explosion-protected cameras in the ExCam range, certified for use in hazardous areas according to ATEX, IECEx and EAC. Ex II 2 G Ex eb IIC T5 Gb, Ex II 2 D Ex tb IIIC T95°C Db, glass fiber reinforced polyester resin, 10x terminal PT 2.5, 3x terminal PT 2.5 PE. 1x M20 gland for armored cables, 2x M20 gland for unarmored cables.

Increased safety enclosures with Ex e certifications are designed to prevent excessive heat, the ingress of water or dust, and the resistance to impact. Thus preventing any explosions from occurring. Ex e defines an explosion protection method for gas environments that prohibits arcs, sparks or hot surfaces.

It includes a terminal connector and pre-mounted 3x cable glands, enabling end users and installers with ease of maintenance. One of the cable glands is suitable for ASKDP03-T Armored Cable ExCam and the other two match SKDP03-T Cable ExCam. The cable glands are intended for connecting a camera in the ExCam-series to midspans and power sources.
