Bosch DIP-6440IG-00N

DIVAR IP all-in-one 6000 1U, 0TB (without hard drives), All-in-One, 8 channels (expandable to 64 channels), 400 Mbps, Bosch Video Management System, Bosch VRM including Video Streaming Gateway, Windows Server loT 2022, max. 2 workstations (std. 2), max. 10 DVR (std. 1), 1 CCTV keyboards (std. 2), BVMS/VRM base system, iSCSl storage extensions.

Key Features:

• All-in-one, fully featured BVMS-based video recording and management solution for up to 64 channels
• Robust, secure operation — instant real time access to video
• BVMS‑based advanced user and alarm management
• DIVAR IP System Manager for operation mode selection, software setup and upgrades

Standard included licenses:

• 8 camera licenses
• 2 workstation licenses
• 5 keyboard licenses
• 1 DVR licenses

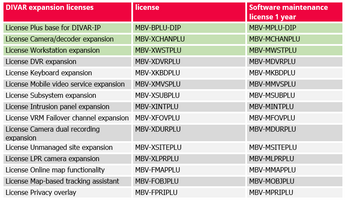

BVMS licenses for this DIVAR

Example 1: I want to have 16 cameras in my system, what licences do i need?

• I need to purchase the base license (MBV-BPLU-DIP), which includes 32 channels, and the corresponding SMA (MBV-MPLU-DIP).

Example 2: I want to have 40 cameras in my system, I more workstation; what licenses do I need?

• I need to purchase the base license(MBV-BPLU-DlP), which includes 32 channels, and the corresponding SMA* (MBV-MPLU-DIP).
• To add 40 cameras in total, I require 8 more IP channel licenses (8x MBV-XCHANPLU) as well, and 8 associated SMAs* (8x MBV-MCHANPLU).
• In addition, I need to purchase a workstation expansion license (MBV-XWSTPLU), with the corresponding SMA* (MBV-MWSTPLU), to add an additional workstation.

Note*: An SMA is necessary for Bosch support and software updates. If an SMA has not been purchased but is desired later, it must be purchased afterwards for the missing years.

Example: after 2 years without SMA support or update, it is necessary to purchase the previous 2 years when purchasing the SMA (a total of 3 years of SMA).

SMA support is required for all purchased modules of the operational system.
