Bosch DIP-4424IG-2HD 8TB

Bosch Article code DIP-4424IG-2HD

NetcamCenter {{ fullProductName }}

DIVAR IP All-in-One 4000, Management appliance 2 x 4TB. Licenses included as standard: 8 cameras licenses, 2 workstations, 1 DVR license.
In stock
Buy now
+ Quote
  • 8 TB (2 x 4TB)
  • 8 channels (expandable to 32 channels)

Description Bosch DIP-4424IG-2HD 8TB

DIVAR IP all-in-one 4000, GPU version, 8TB (2x4TB), All-in-One, 8 channels (expandable to 32 channels), 250 Mbps, Bosch Video Management System, Bosch VRM including Video Streaming Gateway, Windows Server loT 2022, 2-bay mini tower, max. 2 workstations (std. 2), max. 1 DVR (std. 1), 5 CCTV keyboards (std. 2), BVMS/VRM base system, iSCSl storage extensions.

Key Features:

  • All-in-one, fully featured BVMS-based video recording and management solution for up to 32 channels
  • Out-of-the-box IP video recording with up to 8 TB (2 x 4 TB) storage capacity pre-installed
  • Robust, secure operation — instant real time access to video
  • BVMS‑based advanced user and alarm management
  • DIVAR IP System Manager for operation mode selection, software setup and upgrades

Standard included licenses:

  • 8 camera licenses
  • 2 workstation licenses
  • 5 keyboard licenses
  • 1 DVR licenses

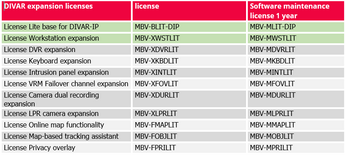

BVMS licenses for this DIVAR

Knipsel Divar IP Lite EN

Example: I want to have 16 cameras in my system, what licences do i need?

  • I need to purchase the base license (MBV-BLIT-DIP), which includes 32 channels, and the corresponding SMA (MBV-MLIT-DIP).

Example 2: I want to have 20 cameras in my system with dual recording, which licenses do I need?

  • I need to purchase the basic license (MBV-BPLIT-DIP), which contains 32 channels and the corresponding SMA (MBV-MPLIT-DIP).
  • I need to purchase 20 x the Dual recording license (MBV-XDURLIT) and the corresponding SMA (MBV-MDURLIT).


Note*: An SMA is necessary for Bosch support and software updates. If an SMA has not been purchased but is desired later, it must be purchased afterwards for the missing years.

Example: after 2 years without SMA support or update, it is necessary to purchase the previous 2 years when purchasing the SMA (a total of 3 years of SMA).

SMA support is required for all purchased modules of the operational system.

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Infographic Download pdf

Specifications

Product
Model number DIP-4424IG-2HD
GTIN code 4060039156242
Brand Bosch
