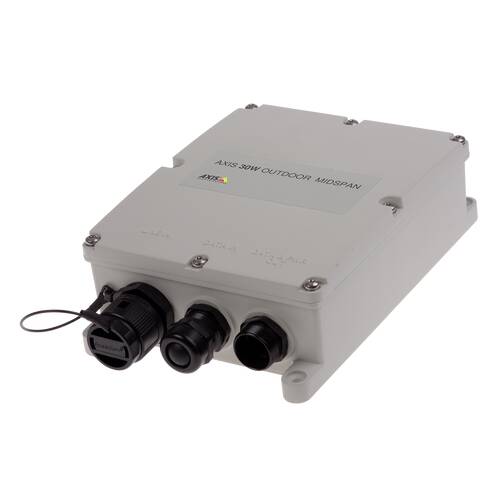

AXIS 30w Outdoor Midspan
AXIS
Article code 01944-001
{{ fullProductName }}
Axis 30w Outdoor Midspan, Outdoor ready IP66 / IP67 certified midspan in accordance with IEEE802.3af and 802.3at.
Description AXIS 30w Outdoor Midspan
The outdoor-ready midspan is IP66/IP67- and NEMA 4X-rated, with extended temperature range up to -40 °C to 65 °C (-40 °F to 149 °F). The midspan offers surge protection up to 6kV for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges. Thanks to the IP66/IP67-rated RJ45 connectors, there is no need to open the outdoor midspan, just connect the mains cable and the network video product. The 30W midspan is compatible with IEEE 802.3af and IEEE 802.3at supported devices
Key Features:
- Outdoor-ready, IP66/67- and NEMA 4X-rated
- IEEE 802.3af and 802.3at
- 100 to 240 V AC
- Railway compliant EN 50121-4 and IEC 62236-4
Compatible products
Illumination
Panoramic
- AXIS M4308-PLE
- AXIS M4317-PLR
- AXIS M4317-PLVE
- AXIS M4318-PLR
- AXIS M4318-PLVE
- AXIS M5000-G
- AXIS P3735-PLE
- AXIS P3737-PLE
- AXIS P3738-PLE
- AXIS P3747-PLVE
- AXIS P3748-PLVE
- AXIS P3827-PVE
- AXIS P4705-PLVE Panoramic Camera
- AXIS P4707-PLVE Panoramic Camera
- AXIS P4708-PLVE Panoramic Camera
- AXIS Q3839-PVE
- AXIS Q4809-PVE
-
AXIS P3727-PLE
EOL
Turret
-
AXIS M3115-LVE
EOL
Specifications
Product
| Model number | 01944-001 |
| GTIN code | 7331021069473 |
| Brand | AXIS |
| Category |
Other Products
Switches, PoE & power supply
|
| HS Code |
850440
|
| Country of origin |
China
|
| Weight |
1685 grams
|
| Size (lxwxh) |
280
x 175 x 85 millimeters
|
|
Switches/PoE/voeding
|
PoE Midspan
|
