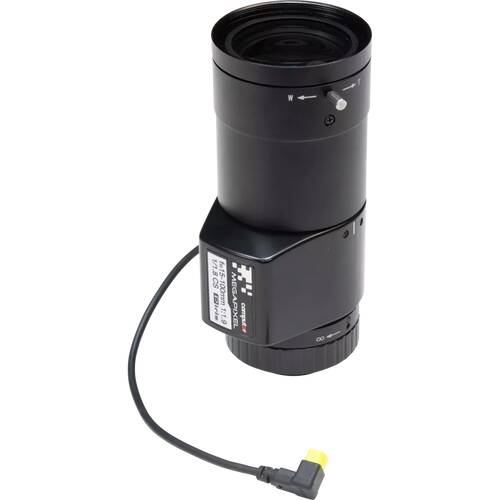

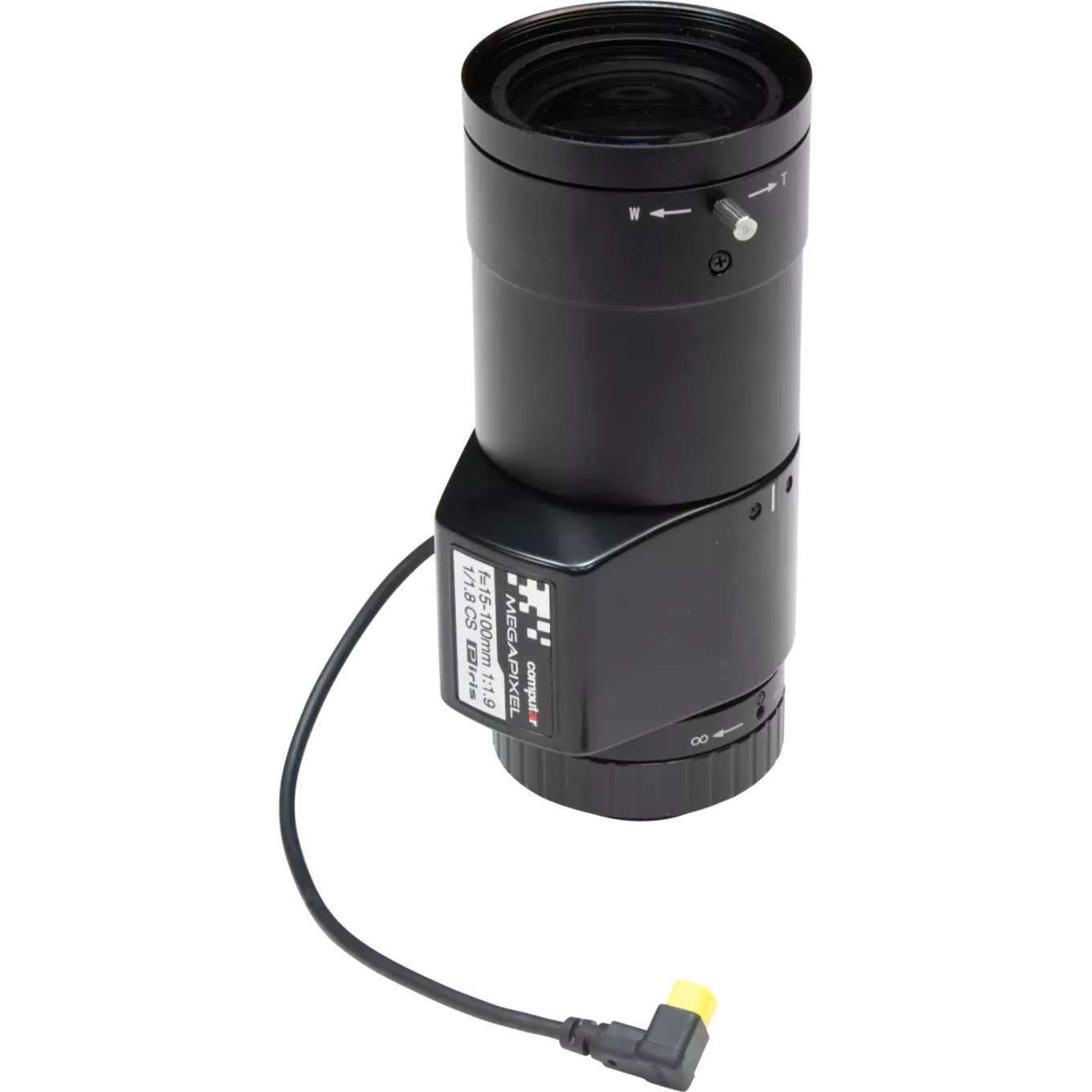

AXIS Lens CS 15-100 mm F1.9 P-Iris

A unique varifocal lens, specially designed to fit our outdoor fixed box cameras, despite the extra-long reach offered by the up to 100 mm focal length. This CS-mount lens incorporates all the desired features of an optional lens: support for large image sensors, details for 8 Megapixel cameras and the P-iris capability, which provides improvements in contrast, clarity, resolution, and depth of field. Being IR-corrected, no focus adjustment is required when shifting the camera between day and night mode using the IR-cut filter.

Key functions:

• IR-corrected lens
• Focal length 15–100 mm
• F-number 1.9
• Supports sensors up to 1/1.8″

Camera         Image Sensor         Angle of view

AXIS P1385/-B         1/2.8''               21° - 3°

AXIS P1385-E/-BE*   1/2.8''               21° - 3°

AXIS P1387/-B           1/2.7”              19° - 3°

AXIS P1387-LE/-BE*    1/2.7”             19° - 3°

AXIS P1388/-B             1/1.8”             29° - 5°

AXIS P1388-LE/-BE*     1/1.8”             29° - 5°

AXIS Q1656/-B             1/1.8”               9° - 5°

AXIS Q1656-LE/-BE/-BLE*  1/1.8”         29° - 5°
