Hanwha XNV-8081Z
{{ fullProductName }}
End-of-life: Product might no longer be available
Would you like personal advice on alternatives?

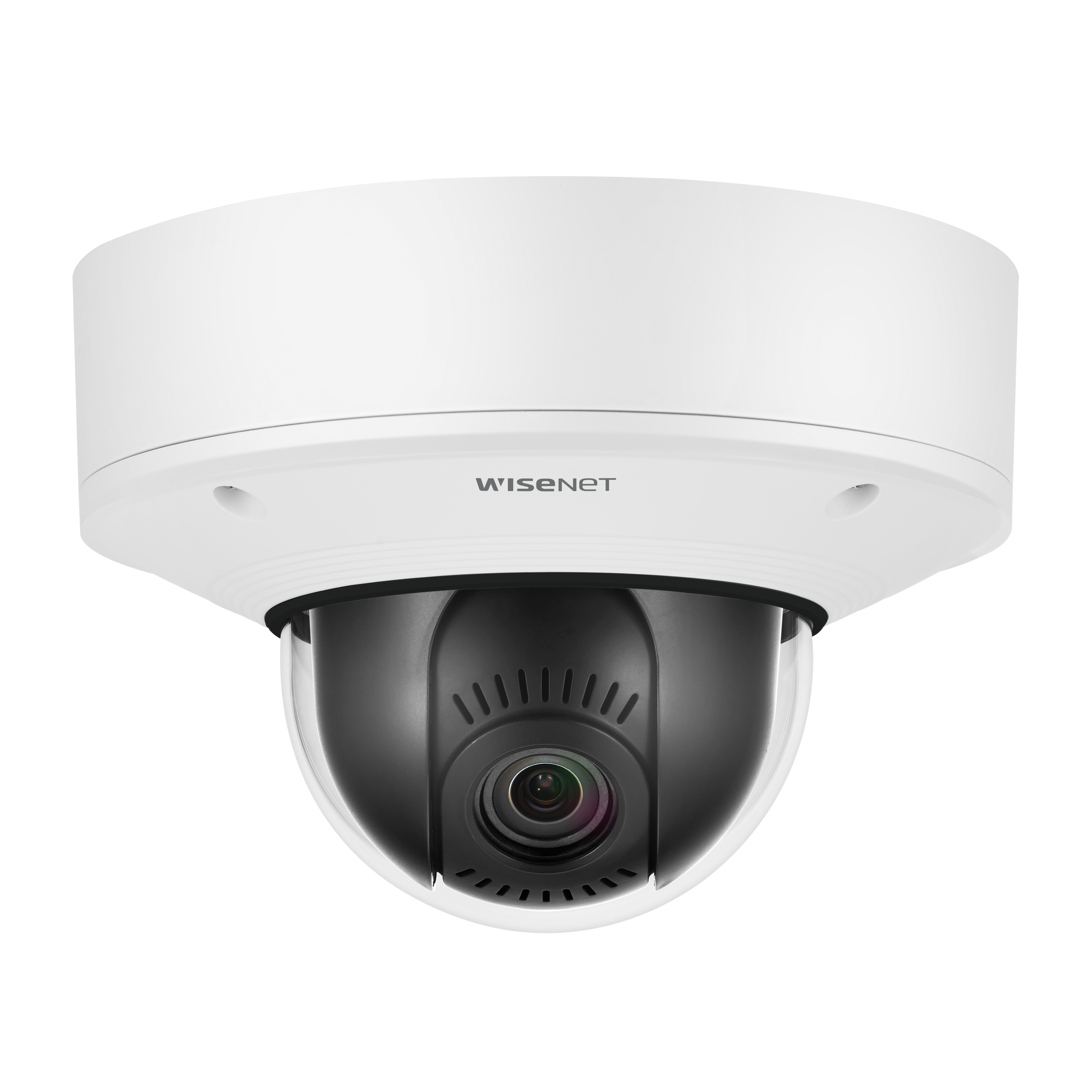

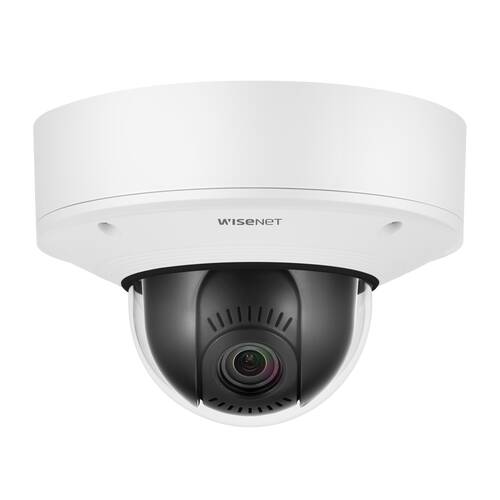

Description Hanwha XNV-8081Z
The Wisenet X series PLUS powered by Wisenet 5 network outdoor vandal dome camera features a modular structure, 5MP @ 30fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°), and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, fog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, NEMA 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.
Key Features:
- Max. 5Megapixel resolution
- 0.07Lux@F1.4 (Color), 0.007Lux@F1.4 (B/W)
- Day & Night (ICR), WDR (150dB / 120dB)
- Modular structure and motorized PTRZ
- Hallway View, WiseStream II Support
- Video & audio analytics, Audio playback
- DIS and shock detection with built-in gyro sensor
- IP67/IP66/IP6K9K, IK10+, NEMA4X
- PoE, 12VDC, 24VAC (Optional)
Specifications
| Model number | XNV-8081Z |
| GTIN code | 8801089152725 |
| Brand | Hanwha |
| Category |
IP Cameras
Dome
|
| HS Code |
852589
|
| Country of origin |
Vietnam
|
| Weight |
1750 grams
|
| Size (lxwxh) |
490
x 574 x 365 millimeters
|
|
Camera Properties
|
Outdoor
Vandal resistant
|
|
Basic Functionality
|
Day and night
RPTZ
Local Storage
|
|
Resolution
|
5MP - 7MP
|
|
Hanwha Series
|
Wisenet X
|
|
Angle of View
|
91° - 100°
|
|
Encoding
|
H265
|
