Hanwha XND-8081RF

Hanwha Article code XND-8081RF
END-OF-LIFE

NetcamCenter {{ fullProductName }}

End-of-life: Product might no longer be available

5MP IR Flush Mount Dome Camera, 30fps, Dag/Nacht, 120dB WDR, Audio playback

Successor

Would you like personal advice on alternatives?

Discontinued
+ Quote

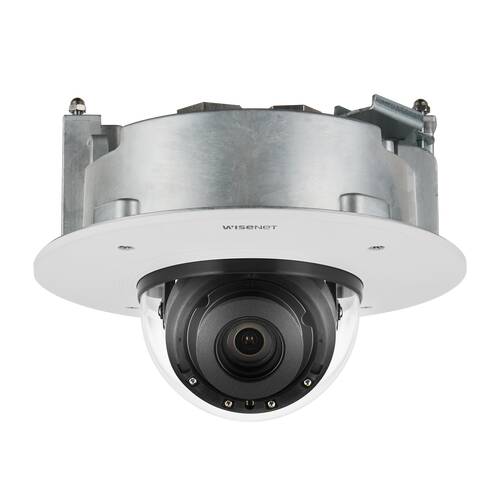

Description Hanwha XND-8081RF

The Wisenet X series PLUS powered by Wisenet 5 network indoor flush mount dome camera features a modular structure, 5MP @ 30fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°). 164 foot IR viewable range for low light/no light monitoring. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, fog detection, DIS (Gyro), 12VDC/PoE, IP52, plenum-rated, white color. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.

Key Features:

  • Max. 5 Megapixel resolution
  • 0.07Lux@F1.4 (Color), 0Lux (B/W, IR LED on)
  • Day & Night (ICR), WDR (120dB)
  • Modular structure
  • Hallway View, WiseStreamII Support
  • Video & audio analytics, Audio playback
  • DIS and shock detection with built-in gyro sensor
  • IP52, Plenum rate, PoE, 12VDC

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

Video

Specifications

Product
Model number XND-8081RF
GTIN code 8801089153401
Brand Hanwha
Category
IP Cameras
Dome
HS Code
852589
Country of origin
Vietnam
Weight
1800 grams
Size (lxwxh)
490 x 574 x 365 millimeters
Camera Properties
Indoor
Built-in infrared
Vandal resistant
Basic Functionality
Day and night
Audio support
Local Storage
Resolution
5MP - 7MP
Software
Analytics
Hanwha Series
Wisenet X Plus
Angle of View
91° - 100°
