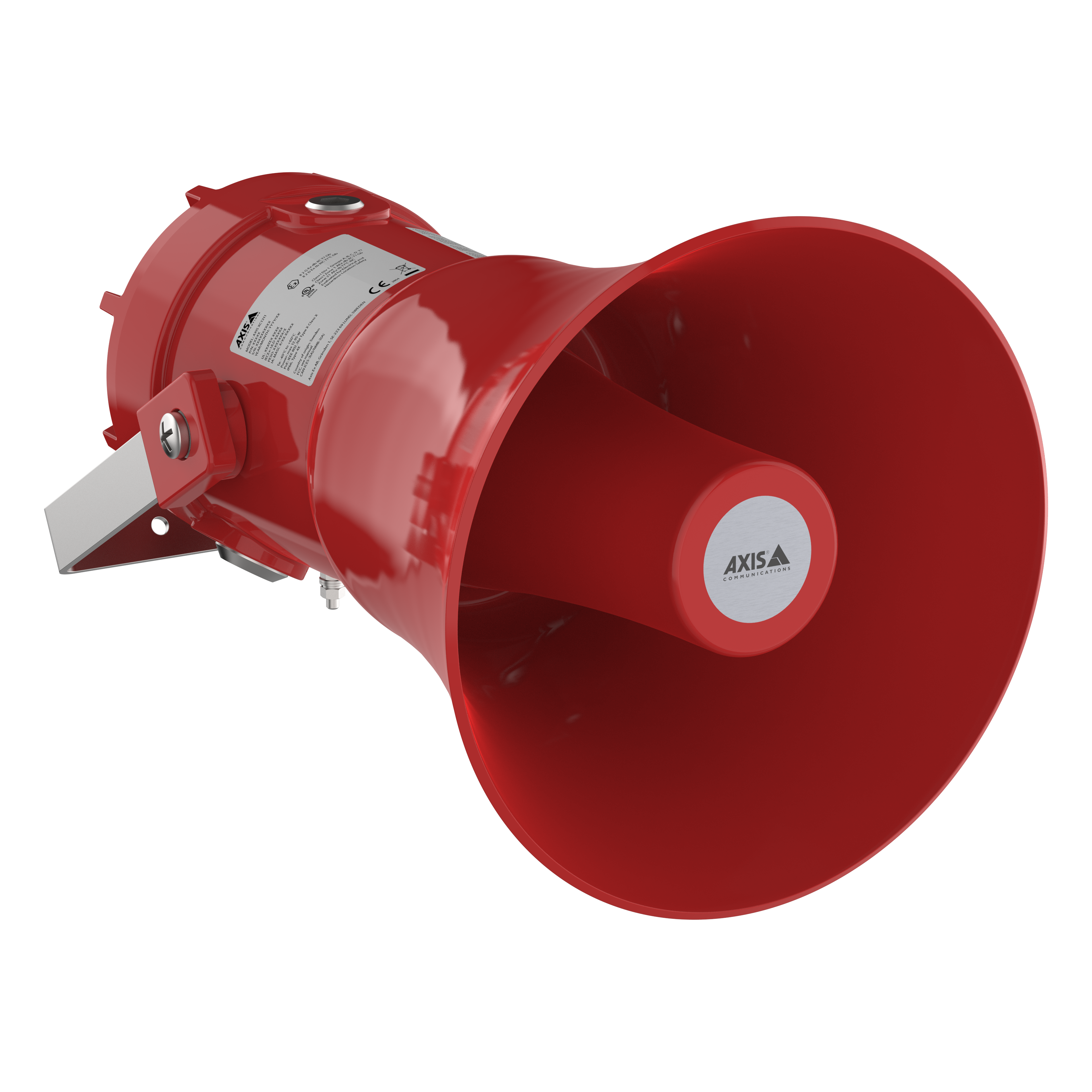

AXIS XC1311 Explosion-protected Network Horn Speaker

AXIS Article code 02962-001

NetcamCenter {{ fullProductName }}

Certified for hazardous areas including Class I Division 1 Groups A, B, C, D and Zone 1 IIC, Zone 21 IIIC, enables live, scheduled, and event-triggered voice messages.
In stock
Buy now
+ Quote
  • All-in-one speaker system
  • Connects to standard network
  • Digital signal processing (DSP)
  • Supporting SIP
  • Maximum sound pressure level of >110 dB at 1m

Description AXIS XC1311 Explosion-protected Network Horn Speaker

Outdoor explosion-protected horn speaker

The XC1311 Explosion-protected Network Horn Speaker is certified for use in hazardous locations (ATEX: II 2G Ex d IIC T5 Gb, II 2D Ex tb IIIC T=91°C Db; IECEx: Ex db IIC T5 Gb, Ex tb IIIC T=91°C Db; cULus: Class I Div 1 ABCD T5, Class I Zone 1 AEx db IIC T5 Gb, Zone 21 AEx tb IIIC T=91°C Db). The speaker is a complete audio system in a single unit. It connects to the standard existing network without need for a separate audio network. Built-in memory supports pre-recorded messages, or operators can respond to notifications with live speak. Digital signal processing (DSP) ensures clear sound. Open standards support easy integration with network video, access control, analytics, and VoIP (supporting SIP).

Division areas 1 and 2
Division 1 area, Division 2 area

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

Compatible products

Specifications

Product
Model number 02962-001
GTIN code 7331021086852
Brand AXIS
Category
IP Cameras
Explosion proof
Other Products
Audio & I/O
HS Code
851821
Country of origin
United Kingdom
Weight
5440 grams
Size (lxwxh)
250 x 250 x 445 millimeters
Audio/IO
Speaker
