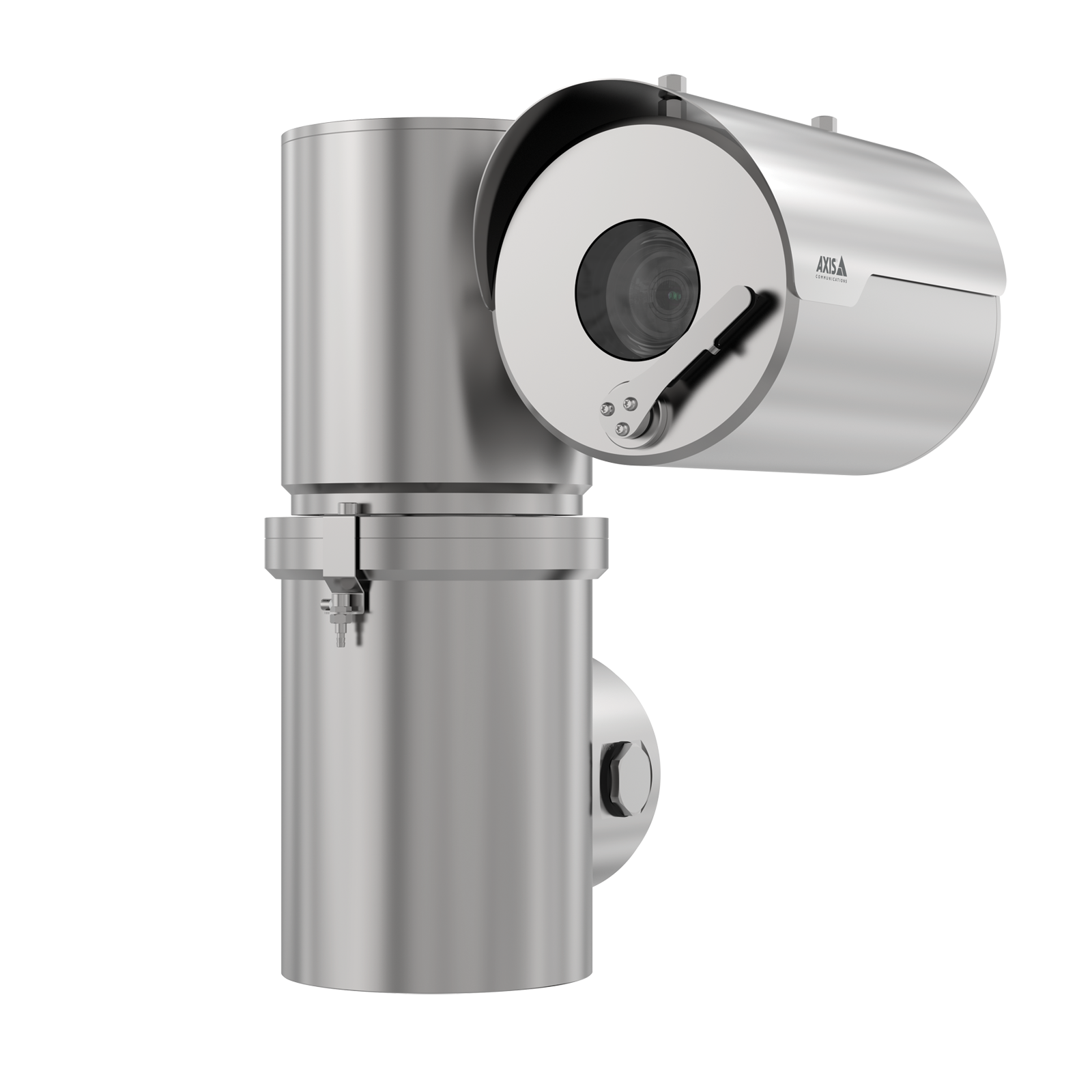

AXIS XPQ1785
AXIS
Article code 02278-001
{{ fullProductName }}
2MP Explosion proof camera, stainless steel, 32x optical zoom, zoom lens 4.3-137mm 60°- 2.3°, day/night, 360°, auto focus, built-in smoke and fire detection
- 2MP Explosion proof camera
- 32x zoom lens 60°- 2.3°
- Light sensitivity color: 0.16lx, B/W: 0.03lx
- 360°, Day/Night
Description AXIS XPQ1785
AXIS XPQ1785 is a robust, stainless steel (316L) PTZ camera globally certified for use in potentially combustible environments according to Class I/II/III Div 1 and Zone 1,21 (NEC, CEC, IECEx, ATEX, and more). The built-in smoke alert analytic monitors for signs of smoke or fire. The camera offers total situational awareness with 360° continuous pan and +/- 90° tilt, both at up to 200°/sec. Axis Zipstream provides exceptional savings on bandwidth and storage requirements without compromising image quality. Ease of installation is supported by a compact and low-weight design, with both RJ45 and SFP for fiber or coax and 100–240 V AC power input.
Key features:
- Worldwide hazardous area certifications
- Smoke alert analytics
- Zipstream and Lightfinder
- HDTV 1080p with 32x optical zoom
- -60 ℃ to 60 ℃ (-76 °F to 140 °F)
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
| Brochure | Download |
| Explosion protected cameras | Download |
| Smoke alert | Download |
| EX region | Download |
Video
Specifications
Product
| Model number | 02278-001 |
| GTIN code | 7331021075658 |
| Brand | AXIS |
| Category |
IP Cameras
Explosion proof
|
| HS Code |
852589
|
| Country of origin |
Sweden
|
| Weight |
23000 grams
|
| Size (lxwxh) |
600
x 400 x 250 millimeters
|
|
Camera Properties
|
Outdoor
Stainless steel
|
|
Basic Functionality
|
Day and night
Local Storage
|
|
Resolution
|
1080p (2MP)
|
|
Axis Series
|
Q17
|
|
Angle of View
|
180° - 360°
|
|
Optical zoom
|
28+
|
|
Encoding
|
H264
MJPEG
|
