Mobotix SD-340-IR
Mobotix
Article code Mx-SD1A-340-IR
{{ fullProductName }}
End-of-life: Product might no longer be available
PTZ SpeedDome camera 3MP with rotating infrared LEDs up to 200 meters, 40x zoom lens and 120db WDR, audio
Would you like personal advice on alternatives?
Description Mobotix SD-340-IR

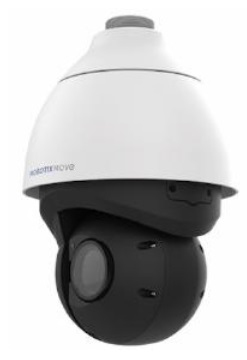

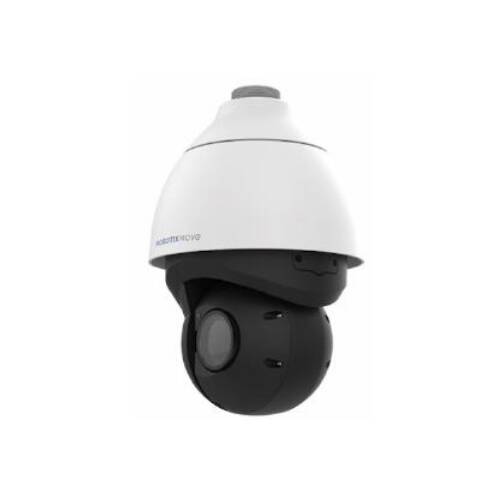

- MOBOTIX MOVE SpeedDome Network Camera SD-340-IR
- Weatherproof, motorized ONVIF S / G dome PTZ camera with built-in IR LEDs (up to 200m) for day and night use
- Up to 40x optical zoom
- Image sensor: 3MP (2065 x 1533), 1/2.8" Progressive CMOS
- Automatic changeover from color to B / W image (mechanical IR cut filter)
- Motor-controlled Varifocal lens (F1.6: 4.3 to 170 mm, viewing angle HxV: 62° -2° x 49° -1 °) with "One Push" autofocus and P-iris with automatic adaptation to changing light situations
- IP66, IK10
- Ambient temperature -40 to 55°C, Humidity 10 to 90%
- Video codecs: H.264, MJPEG (up to 3 streams simultaneously)
- Wide Dynamic Range (120 dB) • Max. Frame rate: 3MP @ 30B / s (H.264 , with and without WDR enabled): MJPEG: 1080p @ 30 B / s
- Power supply: UPoE (Universal PoE) or DC 12V (3.25 A) or AC 24V: max 39 W
- Warranty: 2 years
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
| Software Installation | Download |
Compatible products
More products Less productsSpecifications
Product
| Model number | Mx-SD1A-340-IR |
| GTIN code | 4047438031653 |
| Brand | Mobotix |
| Category |
IP Cameras
PTZ
|
| Weight |
1000 grams
|
|
Camera Properties
|
Outdoor
Built-in infrared
Vandal resistant
|
|
Basic Functionality
|
Day and night
Input/output
Audio support
Local Storage
|
|
Resolution
|
1080p (2MP)
|
|
Mobotix Series
|
Move
|
|
Power over Ethernet
|
30W
|
|
Angle of View
|
61° - 90°
|
|
Optical zoom
|
28+
|
|
Encoding
|
H264
|
