Mobotix SD-330
Mobotix
Article code Mx-SD1A-330
{{ fullProductName }}
End-of-life: Product might no longer be available

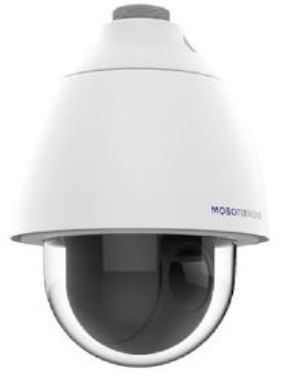

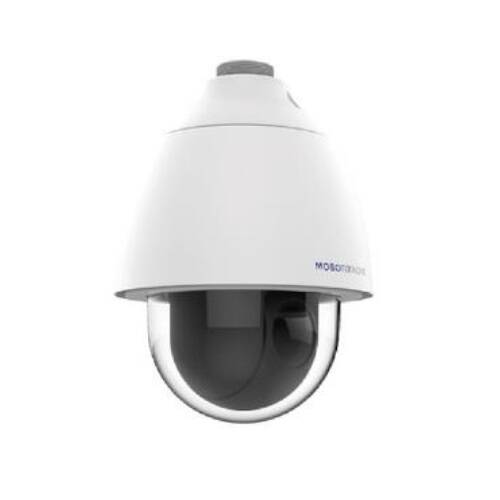

PTZ SpeedDome camera 3MP, 30x zoom lens and 120db WDR, audio
Would you like personal advice on alternatives?
Description Mobotix SD-330
- MOBOTIX MOVE SpeedDome Network Camera SD-330
- Weatherproof motor-driven ONVIF S / G Dome PTZ camera
- Up to 30x optical zoom • Image sensor: 3MP (2065 x 1533), 1/2.8" Progressive CMOS
- Automatic changeover from color to B / W image (mechanical IR cut filter)
- Automatic switching from color to B / W image (mechanical IR cut filter)
- Motor-controlled Varifocal lens (F1.6: 4.3 to 129 mm, viewing angle HxV: 62° - 2° x 47° -2 °) with "One Push" autofocus and P-Iris with automatic adaptation to changing light situations
- IP66, IK10
- Ambient temperature -40 to 55°C, humidity 10 to 90%
- Video codecs: H.264, MJPEG (up to 3 streams simultaneously)
- Wide Dynamic Range (120 dB)
- Max. Frame rate: 3MP @ 30 B / s (H.264, with and without WDR enabled): MJPEG: 1080p @ 30 B / s
- Power supply: PoE IEEE 802.3at or DC 12V (2.12 A) or AC 24V: max 25.4 W
- Warranty: 2 years
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
Compatible products
Housing & Masts
Various
Specifications
Product
| Model number | Mx-SD1A-330 |
| GTIN code | 4047438031646 |
| Brand | Mobotix |
| Category |
IP Cameras
PTZ
|
|
Camera Properties
|
Outdoor
Vandal resistant
|
|
Basic Functionality
|
Day and night
Input/output
Audio support
Local Storage
|
|
Resolution
|
1080p (2MP)
|
|
Mobotix Series
|
Move
|
|
Power over Ethernet
|
30W
|
|
Angle of View
|
61° - 90°
|
|
Optical zoom
|
28+
|
|
Encoding
|
H264
|
