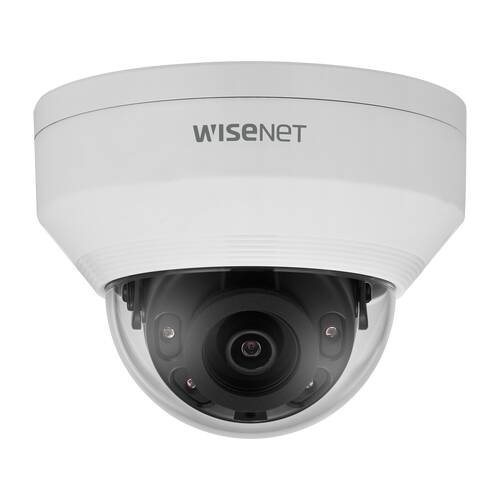

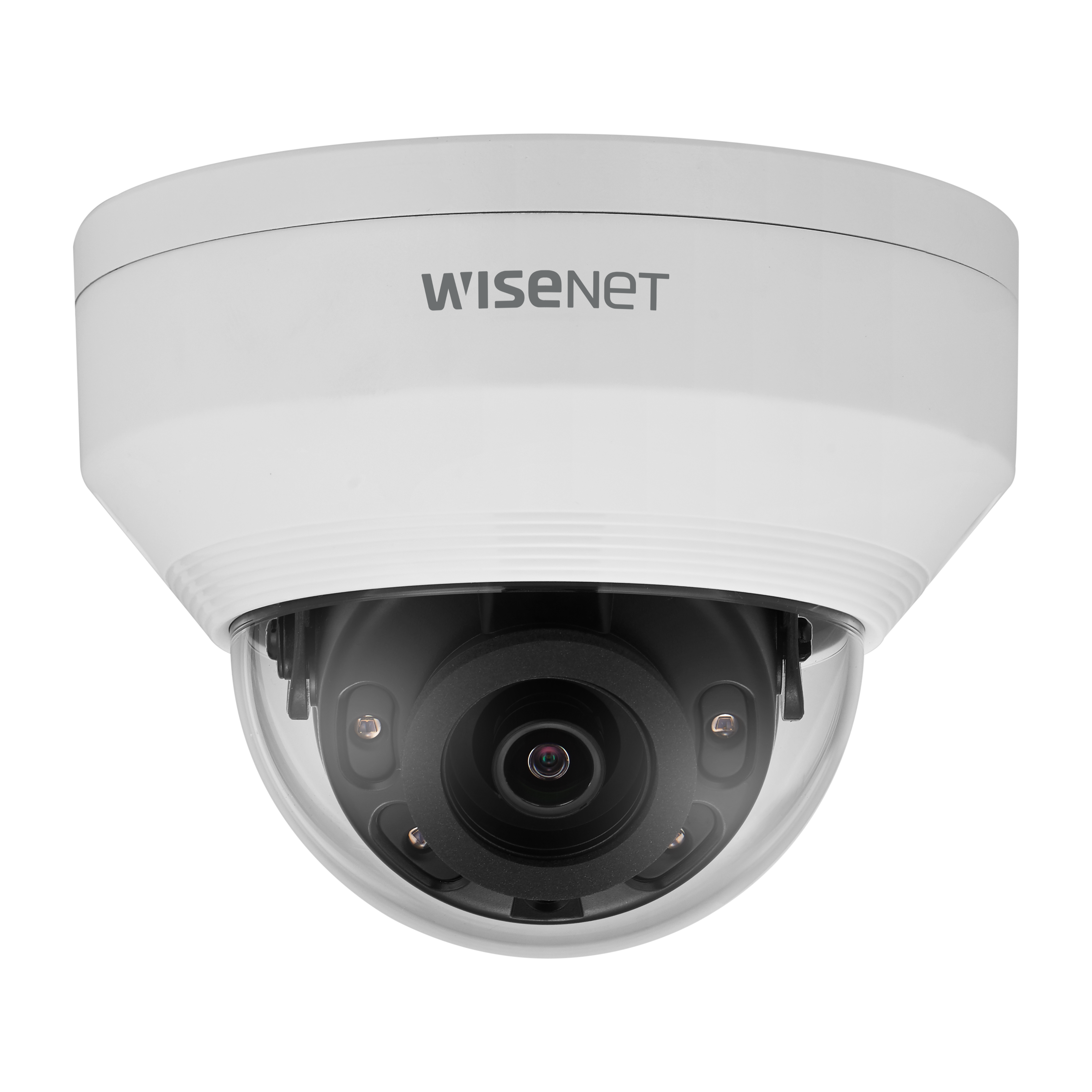

Hanwha ANV-L7012R

Hanwha Article code ANV-L7012R

NetcamCenter {{ fullProductName }}

Outdoor Dome Camera 4MP, 3mm lens, IR, Day and Night, IK10
In stock
Buy now
+ Quote
  • Outdoor 4MP Vandal Dome Camera
  • Fixed lens 98.3°
  • Light sensitivity Color: 0.1 Lux, B/W: 0 Lux with IR LED on

Description Hanwha ANV-L7012R

Wisenet A-series outdoor vandalism dome camera, 4 MP at 30 FPS, 3mm fixed focal length lens, WiseStream II, triple codec (H.265/H.264/MJPEG), 120 dB WDR, IR LEDs 20 m (65, 62 ft), day and night (ICR ), FoV H: 98.3° / V: 54.2°, virtual area (intrusion/entry/exit), virtual line (intersection/direction), motion detection, tampering, corridor view, SD card, IP66, IK10, PoE, white.

Key Features:

  • 4 MP resolution, up to 30 fps (H.265/H.264)
  • Color: 0.1Lux (F1.6, 1/30sec), B/W: 0Lux (IR LED on)
  • 3mm lens with 107.5° HFoV
  • Visible IR length: 20 m
  • Day and night (ICR), WDR (120dB)
  • H.265, H.264, MJPEG, multiple streaming supported
  • Blur detection, direction detection, motion detection, entry/exit, tamper
  • Corridor view (90⁰/270⁰), LDC support, WiseStream II
  • Micro SD/SDHC/SDXC memory slot
  • IP66, IK10

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

Specifications

Product
Model number ANV-L7012R
GTIN code 8801089228628
Brand Hanwha
Category
IP Cameras
Dome
HS Code
852589
Country of origin
Vietnam
Weight
410 grams
Size (lxwxh)
336 x 540 x 181 millimeters
Camera Properties
Outdoor
Built-in infrared
Vandal resistant
Basic Functionality
Day and night
Local Storage
Resolution
4MP
Hanwha Series
Wisenet A
Angle of View
91° - 100°
Encoding
H264
H265
MJPEG
