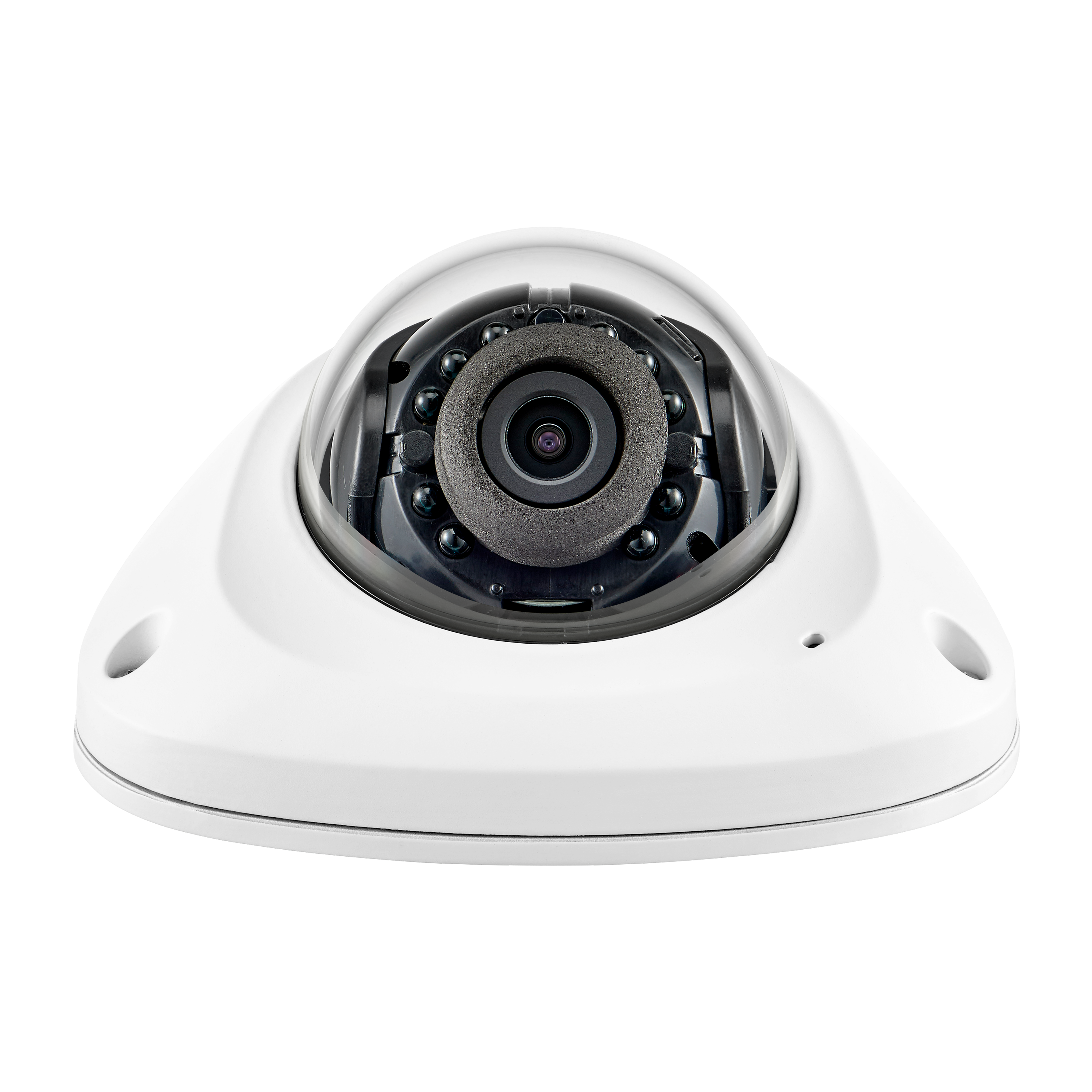

Hanwha ANV-L6023R

Hanwha Article code ANV-L6023R

NetcamCenter {{ fullProductName }}

Outdoor Vandal-Resistant Mini Dome 2MP, 3.6mm lens, IR, IK10
In stock
Buy now
+ Quote
  • Outdoor 2MP Vandal-Resistant Network IR Mini Dome
  • Fixed lens 94.8°
  • Light sensitivity Color: 0.03 Lux, B/W: 0 Lux with IR LED on

Description Hanwha ANV-L6023R

Wisenet A-Series Mini Outdoor Vandalism Dome Camera, 2 MP @ 30 FPS, 3.6mm Fixed Focal Lens, FoV H: 94.8°/V: 49.3°, WiseStream II, Triple Codec (H. 265/H.264/MJPEG), 120 dB WDR, IR LEDs 15 m (49.21 ft), day and night (ICR), virtual area (intrusion/entry/exit), virtual line (intersection/direction), motion detection, tamper, corridor view, SD card, IP66, PoE, white.

Key Features:

  • 2 megapixel resolution (1920 x 1080).
  • 3.6mm lens with 94.8° HFoV
  • 30 fps at all resolutions (H.265/H.264)
  • H.265/H.264, MJPEG codec support, multiple streaming
  • Day and night (ICR), WDR (120dB)
  • Blur detection, direction detection, motion detection, entry/exit, tamper
  • Micro SD/SDHC memory slot (max. 32 GB), PoE
  • Hallway view, WiseStream II support
  • IR visible length 15m
  • IP66, IK10, NEMA4X support

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

Specifications

Product
Model number ANV-L6023R
GTIN code 8801089228666
Brand Hanwha
Category
IP Cameras
Dome
HS Code
852589
Country of origin
Vietnam
Weight
295 grams
Size (lxwxh)
368 x 368 x 364 millimeters
Camera Properties
Outdoor
Built-in infrared
Vandal resistant
Basic Functionality
Day and night
Local Storage
Resolution
1080p (2MP)
Hanwha Series
Wisenet A
Angle of View
91° - 100°
Encoding
H264
H265
MJPEG
