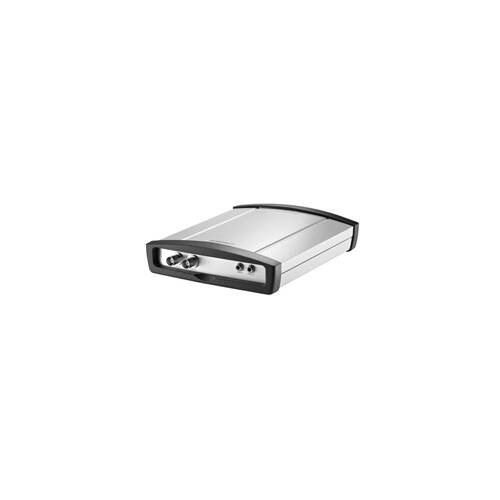

Bosch VJT-X20XF-E

• Video inputs: 2 channels
• Resolution: 4CIF 704 x 576 (max. 30 pps, per channel)
• Compression technique: H.264, M-JPEG and JPEG
• Serial interface: RS232 / 422/485 for PTZ control
• Remote software: Web browser, BVC, BRS or BVMS (optional)
• Ethernet: 10Base-T / 100Base-TX
• Alarm connections: 4x input, 1x output
• Audio connections: 2x input, 1x output
• Other: Motion +, CF card slot, 1x USB 2.0 port, 1x BNC video output
• Dimensions (W x H x D): 146 x 38 x 183 mm
• Power / consumption: 12Vdc (incl. Power supply) / 9W

Videojet X20 / X40 XF-E

• High-quality H.264 video via IPv4 and IPv6
• Bandwidth-friendly adaptive bit rate coding
• Decentralized transcoding for advanced remote replay
• RAID network storage via iSCSI
• Local recordings on CF card

The VideoJet X20 / X40 XF E encoders belong to a family of high-quality CCTV video encoders from Bosch with two or four inputs that deliver real-time H.264 compressed video over IPv4 and IPv6 networks. The units deliver two independent streams per camera with full frame rate and the best quality for different purposes. For example, one stream can be used for live playback with minimal delay, while the second stream is optimally set to use the lowest possible storage capacity. The VideoJet X20 / X40 XF E encoders support PAL and NTSC sources and provide bi-directional audio communication in parallel with video communication. They are supplied in a housing, so that they can easily be mounted on a wall or in a rack. These versatile and flexible devices are a model of the high-quality Video-over-IP for today's CCTV.
