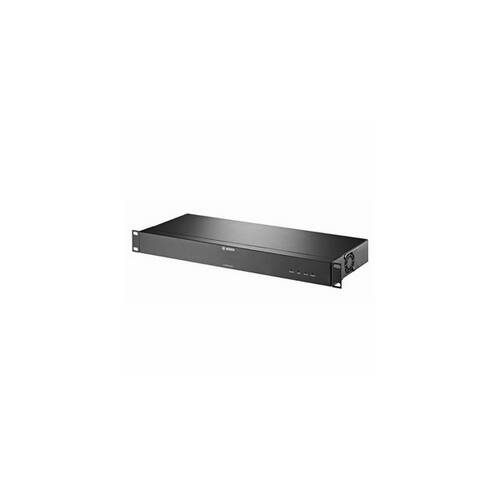

Bosch VJM-4016

VIDEOJET multi 4000 from Bosch is a 16-channel CCTV video encoder that provides the highest quality video-over-IP that can be found in the CTC industry today. The VIDEOJET multi 4000 H.264 High Profile encoder provides real-time H.264 compressed video over IPv4 and IPv6 networks. It offers Dual Streaming per camera with full frame rate and the best quality. The device supports PAL and NTSC sources and provides bidirectional audio communication in parallel with video communication. You can view the images on a PC with the versatile Bosch video management system, with or without Bosch IntuiKey operation. You can also use a web browser instead. With the Bosch Video SDK, the encoder can be integrated into other video management systems. Thanks to the 16 channels in one rack (1 HU), the VIDEOJETmulti 4000 offers the highest port occupancy with this quality. Thanks to the 1 Gbps Ethernet interface, IP video is delivered quickly and without delay.

characteristics

• Video inputs: 16 channels
• Resolution: 4CIF 704 x 576 (max. 30 pps)
• Compression technique: H.264 and M-JPEG
• Serial interface: RS232 / 422/485 for PTZ control
• Remote software: web browser, BVC, BRS or BVMS (optional)
• Ethernet: 10/100 / 1000 Base TX
• Alarm connections: 4x input, 1x output
• Audio connections: 2x input, 1x output
• Other: motion +, 32 simultaneous unicast / multicast connections, coding TLS 1.0, SSL, DES, 3DES, AES
• Dimensions (W x H x D): 483 x 44 x 157 mm
• Power / consumption: 230Vac / 23W
• Videojet Multi 4000
