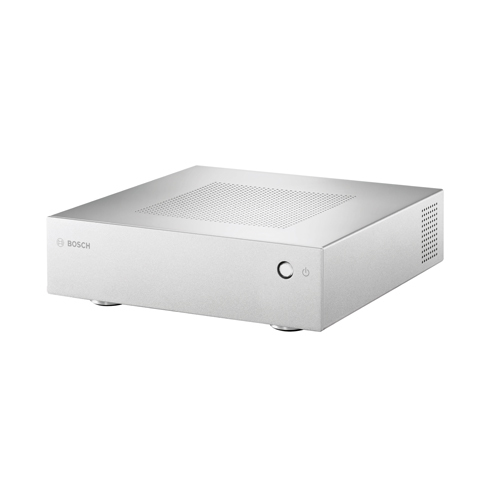

Bosch VJD-7000

• Video outputs: 1 x HDMI out, 1 x DVI out or 1 x Display Port out
• Resolution: HDMI (1,920 x 1,200), DVI (1,920 x 1,200), DP (2,560 x 1,600)
• Compression technique: H.264, MPEG-4
• Ethernet: 10Base-T / 100Base-TX / 1000Base-T, RJ45
• Alarm connections: not applicable
• Audio connections: 1 in / 1 out
• Other: HD resolution max. 20Mbps, single stream, SD resolution max. 6Mbps per stream, max. 20 streams possible with SD resolution 4CIF / 432p 2.5Mbps, 6 x USB port
• Dimensions (W x H x D): 225 x 58 x 217.8 mm
• Power / consumption: 230Vac / 60W (max. 135W fully charged, incl. Power supply

VIDEOJET decoder 7000 displays video images in High Definition (HD) and Standard Definition (SD) quality from cameras and encoders that use H.264 or MPEG4 encoding at up to 30 images per second via IP networks. It can easily decode four 1080p30 streams or four H.264 720p60 streams, or six H.264 720p30 streams, all at a speed of 10 Mbps. Alternatively, the decoder can simultaneously decode twelve H.264 SD streams with a speed of up to 6 Mbps from fast-moving AUTODOME cameras with maximum brightness. When H.264 SD streams are connected at speeds of up to 2.5 Mbps from scenes with average activity, up to 20 streams can be displayed.

VIDEOJET decoder 7000 can directly control two HD screens, each with an independently configurable screen layout, and is therefore very suitable for applications with flat screen monitor walls for a reasonable price per monitor. Despite its great performance, the VIDEOJET decoder 7000 has a compact format and is therefore extremely suitable for applications where a space-saving solution is highly desirable.

Determine the remote display and make the video connections automatically using the versatile Bosch video management system.
