Videotec VIPNX2C

Videotec Article code VIPNX2C

NetcamCenter {{ fullProductName }}

24Vac stainless steel wiper for NXM housing
Product variants
Not in stock
Buy now
+ Quote

Description Videotec VIPNX2C

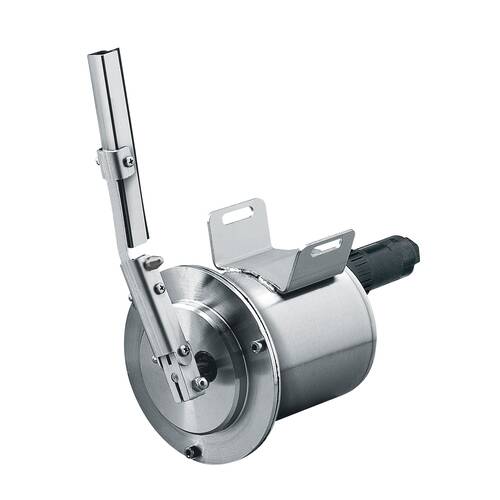

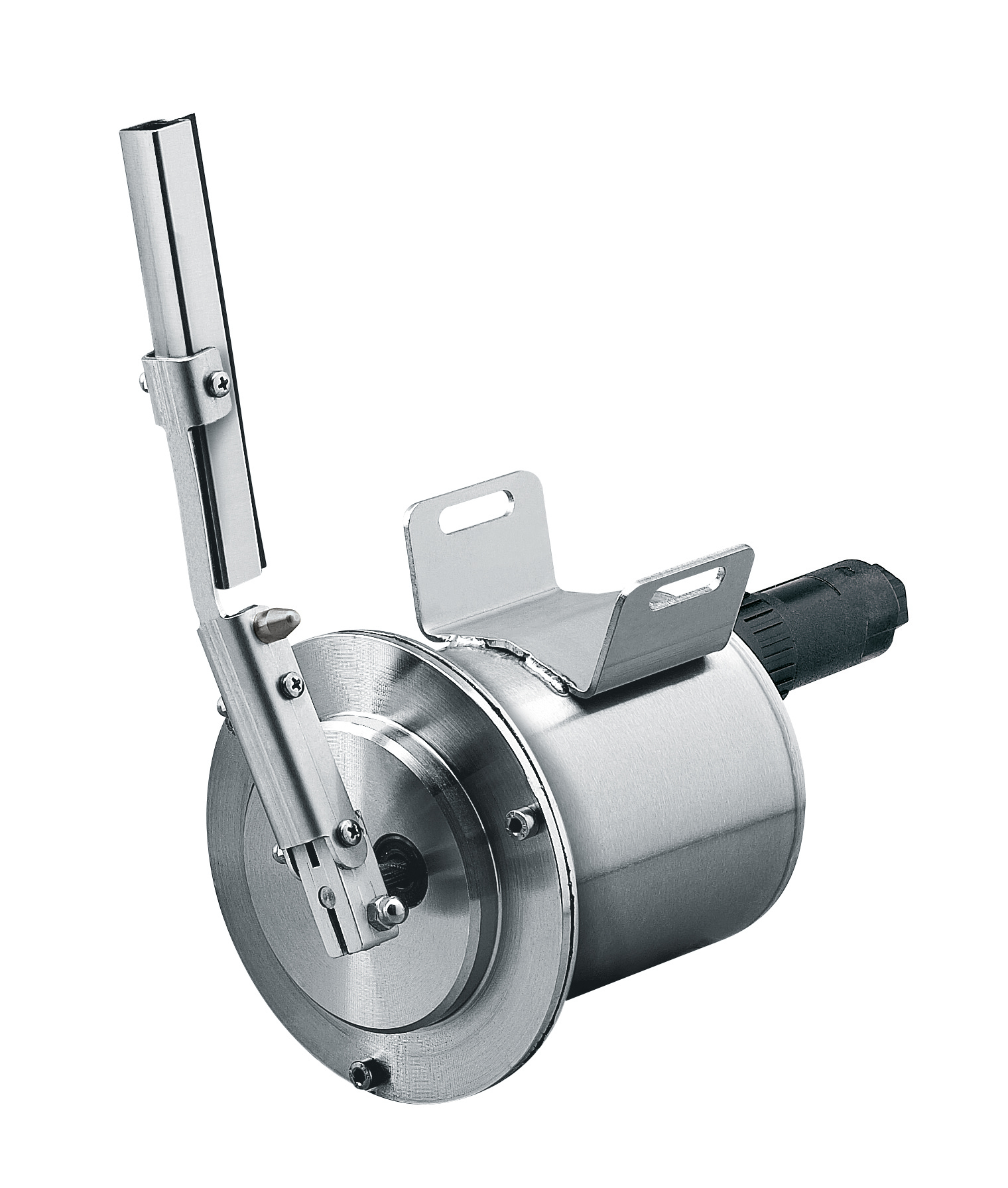

VIPNX2C – 24Vac Stainless Steel Wiper Kit for NXM Housings

The VIPNX2C is a 24Vac wiper kit that can be installed directly on the housing body of Videotec NXM series camera housings. The wiperblade and enclosure are constructed from AISI 316L stainless steel, giving the kit a robust build for demanding environments. It integrates a support for the wash injector coming from the pump, allowing combined wiping and washing operation. The unit connects via a 3+1 pin connector and draws a maximum of 290mA at 24Vac, 50/60Hz. It is CE listed, rated IP66, and carries Lloyd's Register Marine Type Approval.

Key Features:

  • 24Vac stainless steel wiper for NXM housings
  • Wiperblade and enclosure in AISI 316L stainless steel
  • Integrated support for wash injector from pump
  • 3+1 pin connector
  • CE listed, IP66 rated
  • Lloyd's Register Marine Type Approval

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf

Compatible products

Specifications

Product
Model number VIPNX2C
GTIN code 700880445730
Brand Videotec
Category
Other Products
Housing & Masts
HS Code
852990
Weight
1937 grams
Size (lxwxh)
145 x 265 x 145 millimeters
Housings / Poles
Other housings/poles
Date published 4/23/2025
