Videotec VIPNX1C

Videotec Article code VIPNX1C

NetcamCenter {{ fullProductName }}

230Vac stainless steel wiper for NXM housing
Product variants
Not in stock
Buy now
+ Quote

Description Videotec VIPNX1C

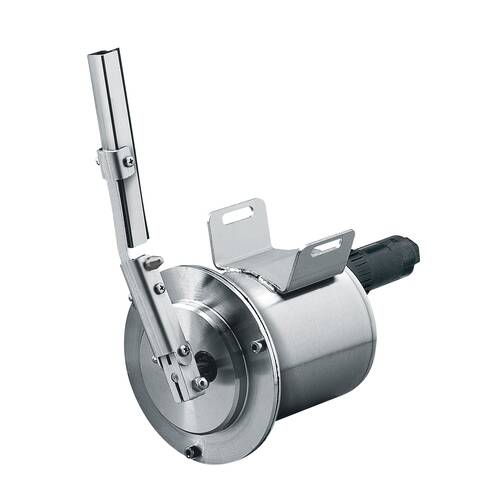

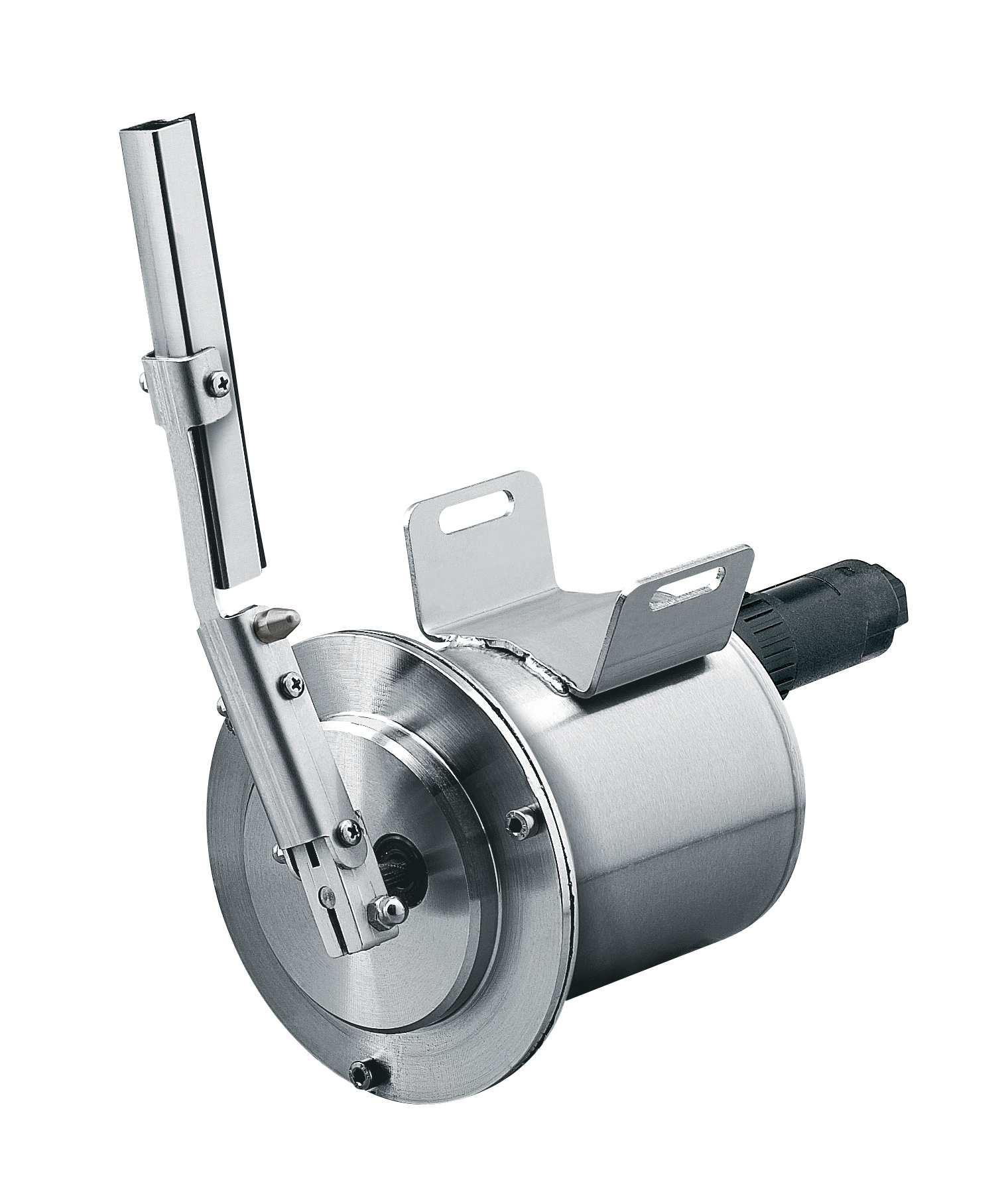

VIPNX1C: 230Vac Stainless Steel Wiper Kit for NXM Housings

The VIPNX1C is a 230Vac wiper kit designed for direct installation on the housing body of cameras in the NXM series. Its wiperblade and enclosure are constructed from AISI 316L stainless steel, giving it a rugged, corrosion-resistant build. The kit also integrates the support for the wash injector coming from the pump, allowing wiper and wash functions to work together on the housing. With dimensions of 100x169mm (3.9x6.7in, excluding the blade) and a unit weight of 1.7kg (3.7lb), it fits compactly onto the NXM housing body. Electrical connection is made via a 3+1 pin connector, with the unit drawing 30mA max at 230Vac, 50/60Hz.

Key Features:

  • AISI 316L stainless steel wiperblade and enclosure
  • 230Vac supply, 30mA max current draw, 50/60Hz
  • Integrates support for the wash injector from the pump
  • Available for housings in the NXM series
  • IP66/IP67 rated per EN60529
  • CE listed with Lloyd's Register Marine Type Approval

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf

Compatible products

Specifications

Product
Model number VIPNX1C
Brand Videotec
Category
Other Products
Housing & Masts
Weight
1937 grams
Size (lxwxh)
145 x 265 x 145 millimeters
Housings / Poles
Other housings/poles
Date published 7/18/2019
