Veracity VOR-ORM

Description Veracity VOR-ORM

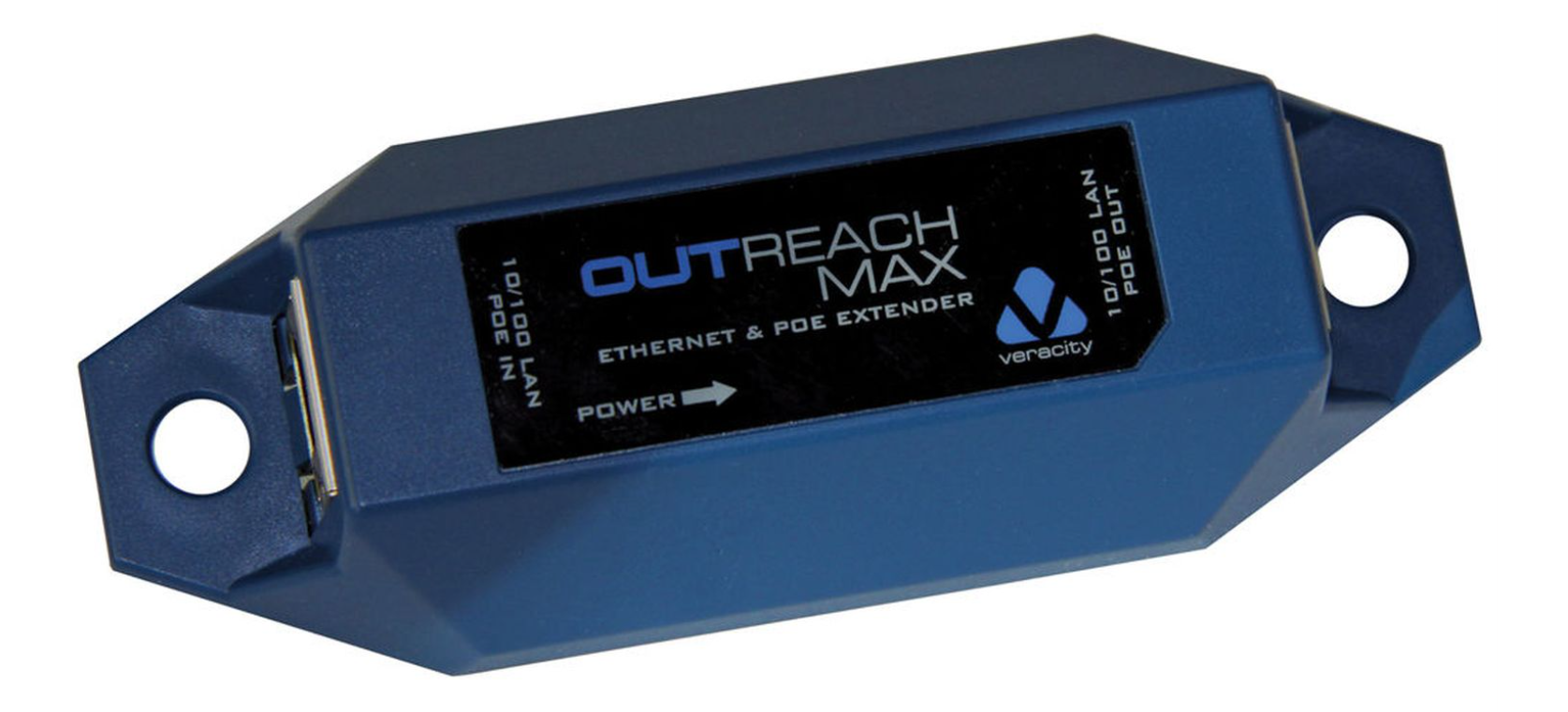

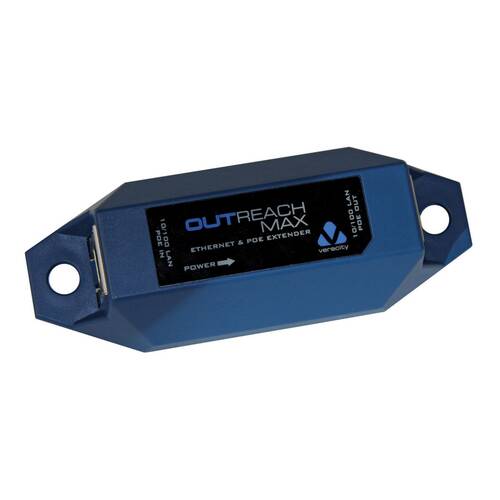

Veracity Outreach Max Ethernet extender with PoE for extending the cable distance of a LAN connection, use per 90 meters. Wiring in an Ethernet network is limited to 100 meters of cable length. The Outreach modules solve this problem with an easy-to-connect solution. An Outreach module connects two cables with RJ45 connectors, creating a usable cable length of 200 meters. Depending on the POE switch and cameras used, this distance can go up to 300 meters. Outreach is completely transparent to the link, which makes it possible to build a full-duplex 100Base-T connection without any restrictions. The Outreach modules obtain their power supply by using POE switches or PoE injectors such as the 3Com PoE midspan unit below. The modules can also pass on the POE power supply to the camera or VOIP telephone. However, this depends on the required power. When using a PTZ camera with Hight PoE, the High PoE unit must be connected to a 220V power point. The Veracity products cannot send High PoE.

Compatible products
Specifications
Model number | VCVORORM |
Brand | Veracity |
