Raytec VAR2-w4-2
{{ fullProductName }}
- 12/24V AC/DC
- Range 180° 21m to 10° 155m
- Lens 10°, 35 ° and 60° standard
- Lens 80 ° and 120 ° optional

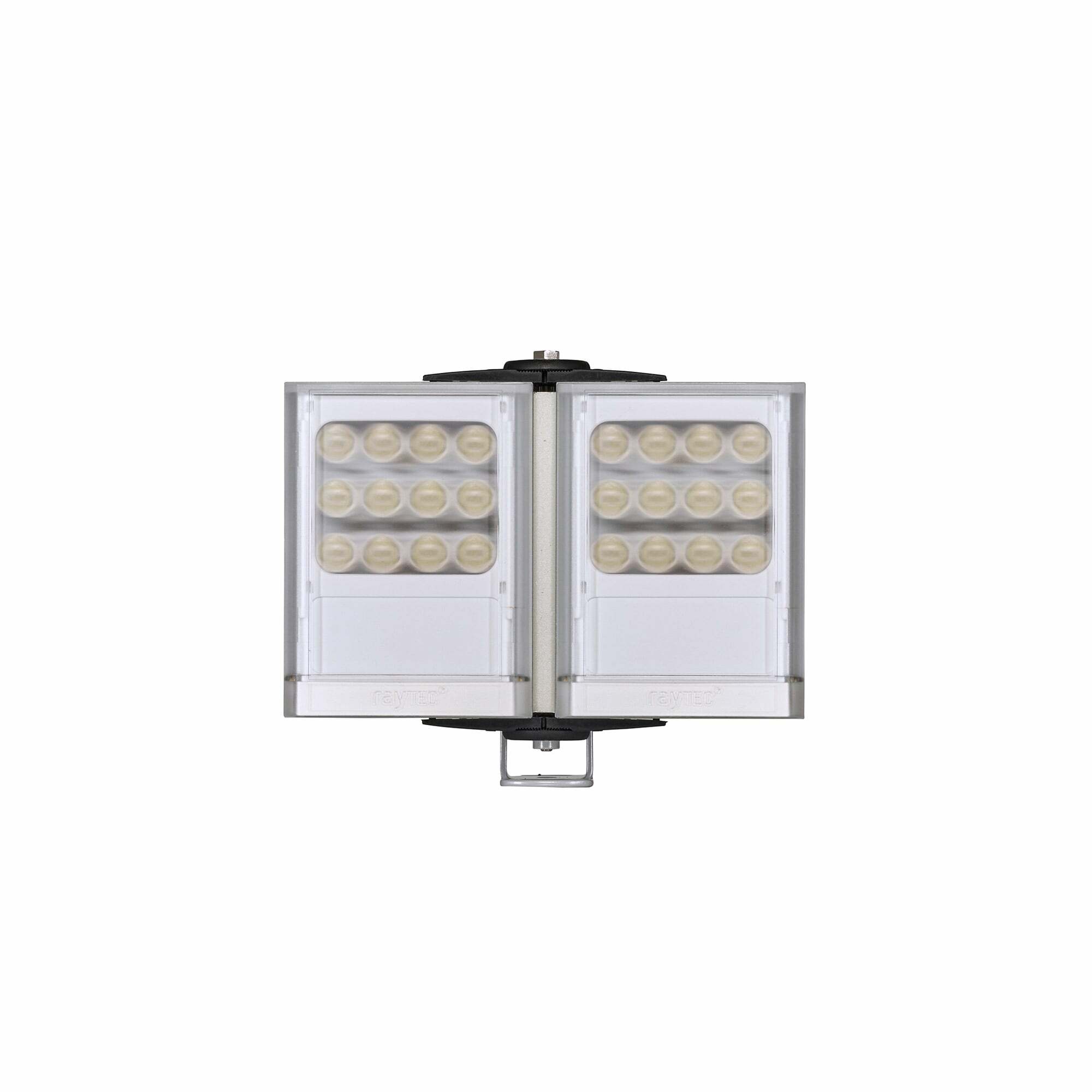

Description Raytec VAR2-w4-2
Medium Range White-Light Illuminator
Delivering world leading power and illumination distances VARIO2 next generation illuminators can improve the performance of any video surveillance system at night. VARIO2 illuminators use PLATINUM Elite SMT LED technology to deliver more power and greater distances from a smaller platform than current generation illuminators. Providing a broader range of solutions, the VARIO2 series also offers a suite of advanced security features for easier programming and safer operation of smart lighting systems. VARIO2 features an interchangeable lens system with Hot-spot Reduction Technology, and Adaptive Illumination™ on double and triple panel models to deliver highly even illumination, where it is most needed, for outstanding night-time images. With the optional hand-held remote control, VARIO2 also makes installation and commissioning quicker, easier and safer. The VARIO2 w4-2 White-Light series delivers maximum distances up to 155m (509ft).
| Lens angle | Narrow Angle Distances | Wide Angle Distances |
|---|---|---|
| 10° x 10° | 155m at 10° | 110m at 20° |
| 35° x 10° | 92m at 35° | 65m at 70° |
| 60° x 25° | 49m at 60° | 35m at 120° |
| 80° x 30° (optional) | 35m at 80° | 27m at 140° |
| 120° x 50° (optional) | 25m at 120° | 21m at 180° |
Table shows the lens's horizontal and vertical angle (H ° x V °) with corresponding distances.
Characteristics
- Distances up to 155m (509ft)
- PLATINUM Elite SMT LED Technology
- Hot-spot Reduction Technology (HRT)
- VARIO Interchangeable Lens System
- VARIO Remote Control (optional)
- Angles from 10-120 degrees – from 1 product
- Excellent Colour Rendition
- Advanced Security Settings
Compatible products
Specifications
| Model number | VAR2-w4-2 |
| GTIN code | 5055877500943 |
| Brand | Raytec |
| Category |
