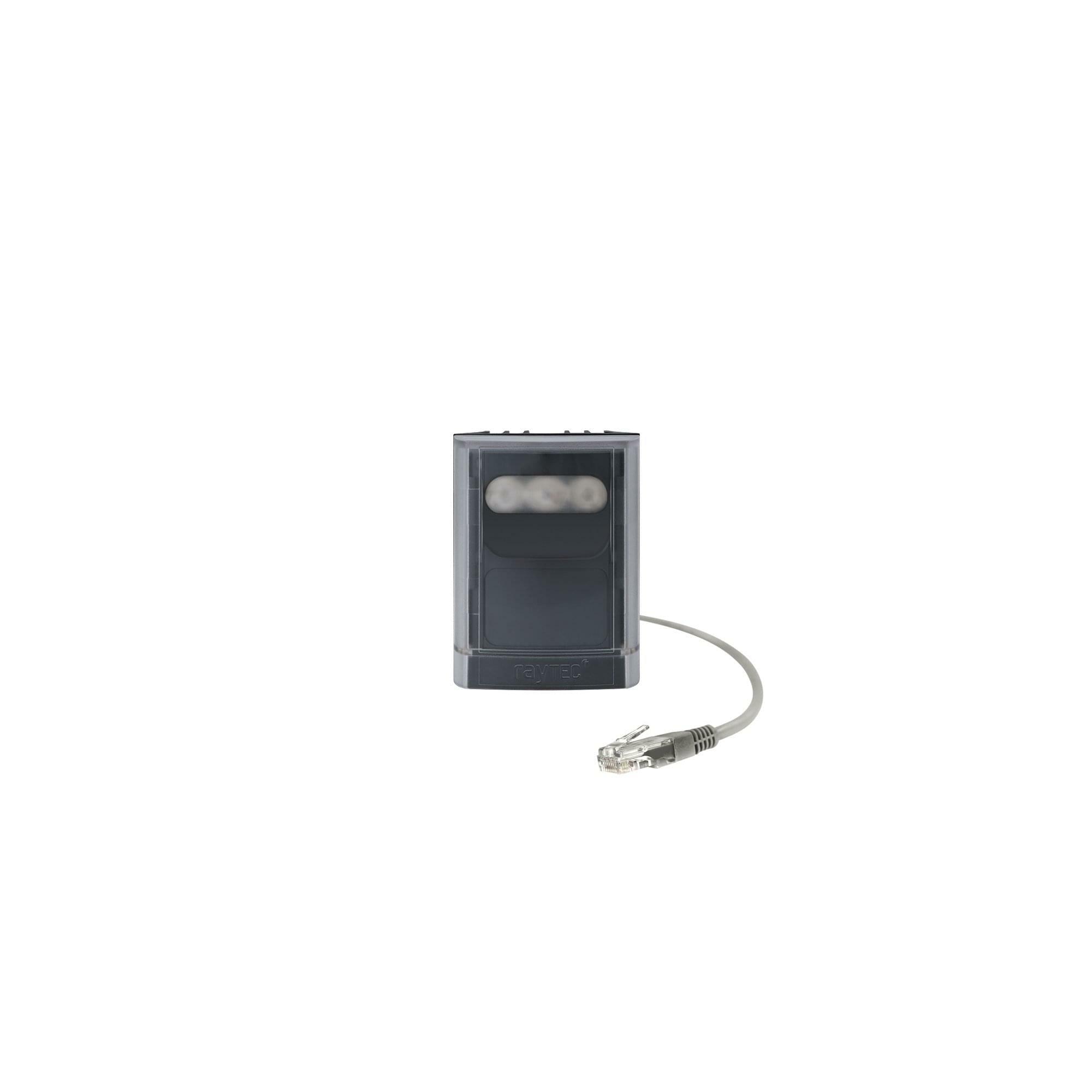

Raytec VAR2-POE-i2-1

Raytec Article code VARIOi2-1

NetcamCenter {{ fullProductName }}

Infrared LED lamp 850nm, PoE 15W, 5 lenses from 10° to 120°, range up to 62 meters.
In stock
Buy now
+ Quote
  • PoE 15W
  • Range 120° 14m to 10° 62m
  • Lens 10°, 35° and 60° standard
  • Lens 80° and 120° optional

Description Raytec VAR2-POE-i2-1

Infrared PoE Illuminator at close range

Delivering world leading power and illumination distances VARIO2 PoE illuminators can improve the performance of any video surveillance system at night. With PoE power input, the illuminators can be easily plugged into a network infrastructure, without the need for additional power supply units. VARIO2 PoE illuminators use PLATINUM Elite SMT LED technology to deliver the highest levels of performance. The VARIO2 PoE series also offers a suite of advanced security features for easier programming and safer operation of smart lighting systems. VARIO2 PoE features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination, where it is most needed, for outstanding night-time images. With the optional hand-held remote control, VARIO2 PoE also makes installation and commissioning quicker, easier and safer. The VARIO2 PoE i2-1 Infra-red PoE illuminator delivers maximum distances up to 62m (203ft)

Lens angle

Distance
10° x 10°62m (203ft)
35° x 10°42m (138ft)
60° x 25°26m (85ft)
80° x 30°

18m (59ft)

120° x 50°14m (46ft)

Table shows the lens's horizontal and vertical angle (H ° x V °) with corresponding distances.

Key Features:

  • Dedicated PoE Lighting for Network Systems
  • Distances up to 62m (203ft)
  • PLATINUM Elite SMT LED Technology
  • Hot-spot Reduction Technology (HRT)
  • VARIO Interchangeable Lens System
  • VARIO Remote Control (optional)
  • Angles from 10-120 degrees - from 1 product
  • Semi-Covert (850nm) or Covert (940nm, only available on request)

Downloads

Datasheet Download pdf
Installation manual Download pdf
Bracket Download pdf
Installation manual short Download pdf

Compatible products

Switches, PoE & power supply

Specifications

Product
Model number VARIOi2-1
GTIN code 5055877501315
Brand Raytec
Category
Other Products
Illumination
HS Code
853949
Weight
1000 grams
Audio/IO
Illumination
IR 850nm
PoE
