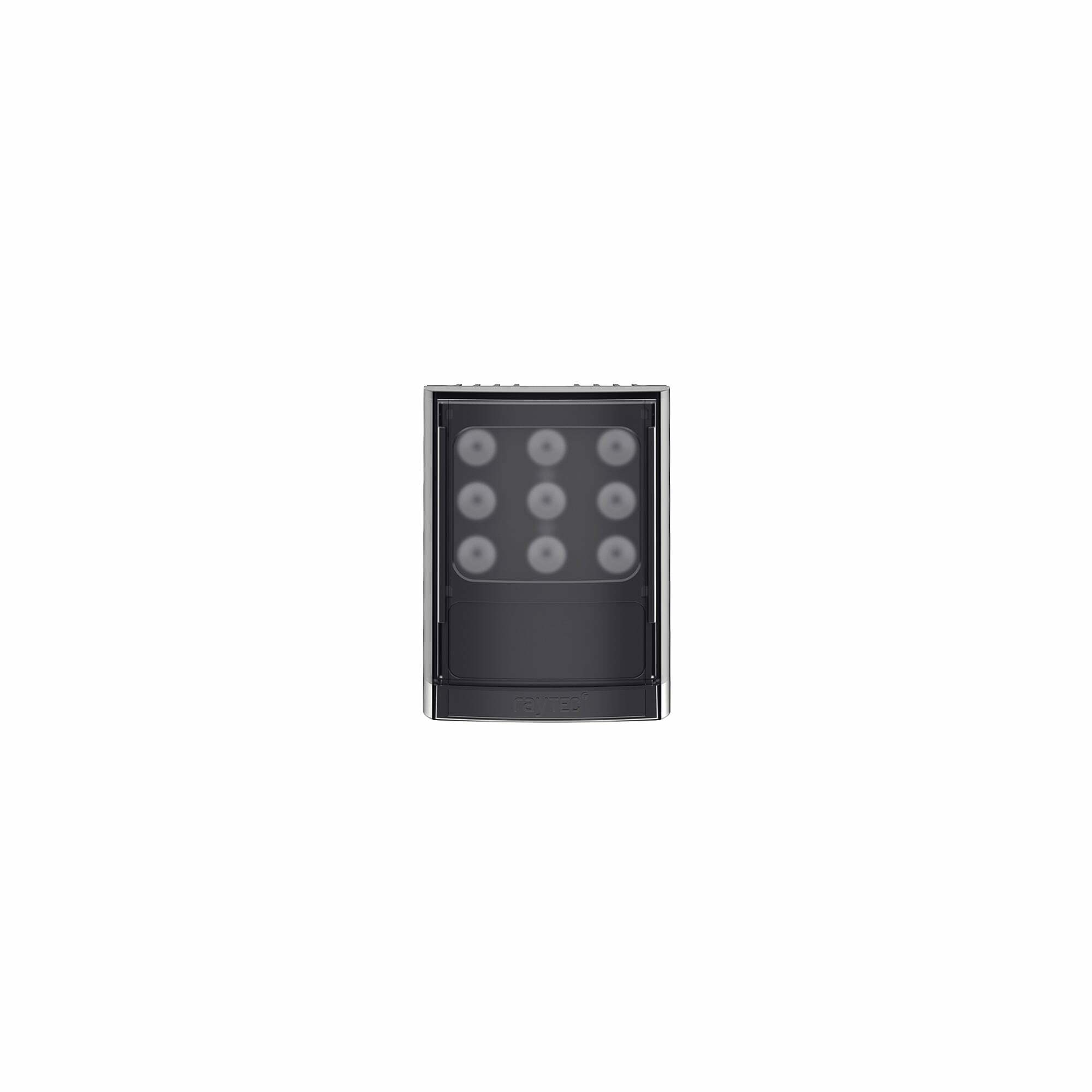

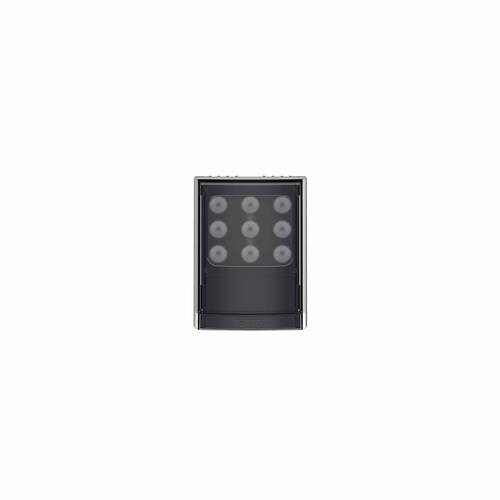

Raytec VAR2-hy4-1

Medium Range Hybrid Illuminator

VARIO2 Hybrid illuminators use PLATINUM Elite SMT LED technology to deliver all the performance of a stand alone Infra-Red and a stand alone White-Light Illuminator in a single, fully integrated two-in-one solution. The Infra-Red illumination can be used for general surveillance whilst the White-light can be used as a deterrent, or to deliver additional scene information upon activation. Switching from Infra-Red to WhiteLight illumination on-demand is easy, via a volt free switch for external devices or alarm inputs. VARIO2 Hybrid allows the creation of smart lighting systems by using either Infra-Red or White-Light as and when needed. VARIO2 Hybrid features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination, where it is most needed, for outstanding night-time images. With the optional hand-held remote control, VARIO2 Hybrid also makes installation and commissioning quicker, easier and safer. The VARIO2 hy4 series delivers maximum distances up to 130m (427ft) IR & 70m (230ft) WL.

Table shows the lens's horizontal and vertical angle (H ° x V °) with corresponding distances.

Characteristics

• Combined Infra-Red & White-Light Illumination
• Switch easily and automatically between IR & WL
• Distances up to 130m (427ft) IR & 70m (230ft) WL
• PLATINUM Elite SMT LED Technology
• Hot-spot Reduction Technology (HRT)
• VARIO Interchangeable Lens System
• VARIO Remote Control (optional)
• Angles from 10-120 degrees – from 1 product
