AXIS T8085 PS57 500W 1U

Power supply for AXIS T8646 PoE+ over Coax Blade

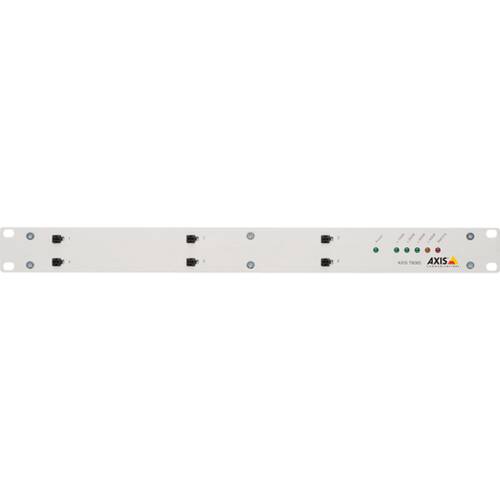

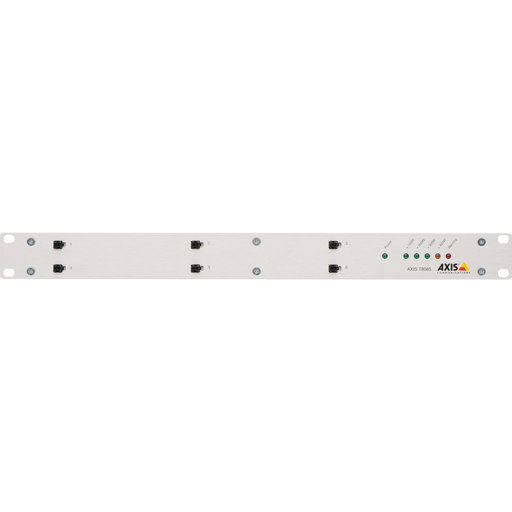

AXIS T8085 PS57 500W 1U is a 19″ rack-mountable 500 W power supply. It’s made for use with AXIS T8646 PoE+ Over Coax Blade in combination with AXIS T8642 Ethernet over Coax devices. When using AXIS T8085 500 W power supply, both the device unit and the network camera can receive power over the coax cable. This makes installation and maintenance very effective.

The power supply includes AXIS Patch Cable A 200 mm, 6 pcs and supports up to six blades to be connected.

Key Features:

• Input: 100–240 V AC, 50–60 Hz, 5.0 A
• Output: 57 V DC, 8.8 (divided into 6 ports) A, 500 W
• Operating temperature: 0–40 °C (32–104 °F)
• Humidity: 5–90 %RH
