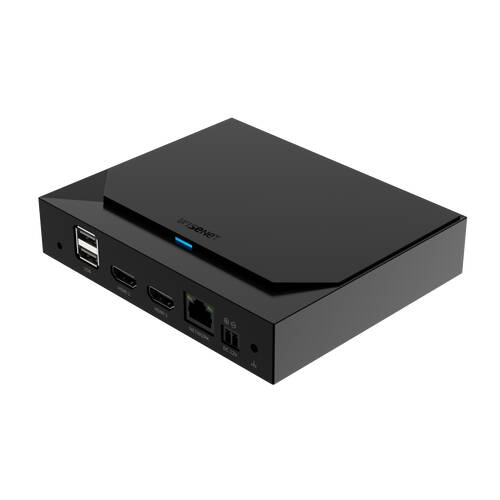

Hanwha SPD-152

Live view of up to 64 cameras on up to 2 monitors.

Network Video decoder 64-channel, up to 64 cameras on 2 HDMI monitors (HDMI#1 UHD, HDMI#2 FHD),

max. 8M resolution, 8M@60fps, 2M@360fps, triple codec H.265/H.264/MJPEG, ONVIF, SUNAPI, RTSP, Various installations: Monitor-Back and Pole mount, PoE/12VDC.

The decoder has a very low latency

Embedded Linux platform, audio support on the first HDMI output (not on the second), monitors: expand & clone mode, 1 Ethernet connection 10/100/1000 Base-T, 2 USB ports, max. 150 Mbps in, dimensions : 140 x 29.5 x 115.4mm

Suitable for many brands of cameras that support ONVIF or RTSP.

Supplied without power supply

Key Features:

• Up to 64 cameras 8M@60fps decoding performance
• Play layout sequence
• Supports thermal imager/PTZ linked camera
• Supports a range of 4K camera resolutions
• Outputs a 4K high-definition image via HDMI
• Supports dual monitor output (expand, duplicate)
• Supports ONVIF Profile S standard and RTP/RTSP protocols
• Simultaneous playback of 64 channels
• Live monitoring of the network camera
• Installation wizard function (recorder, web viewer)
• PoE and DC 12V power supply for redundant power
• NDAA/FCC compliant
